Network Security Appliance, 4 NMC Slots, Rackmount, Xeon E3 and 6th/7th Gen Intel Core I7/i5/i3 Processor

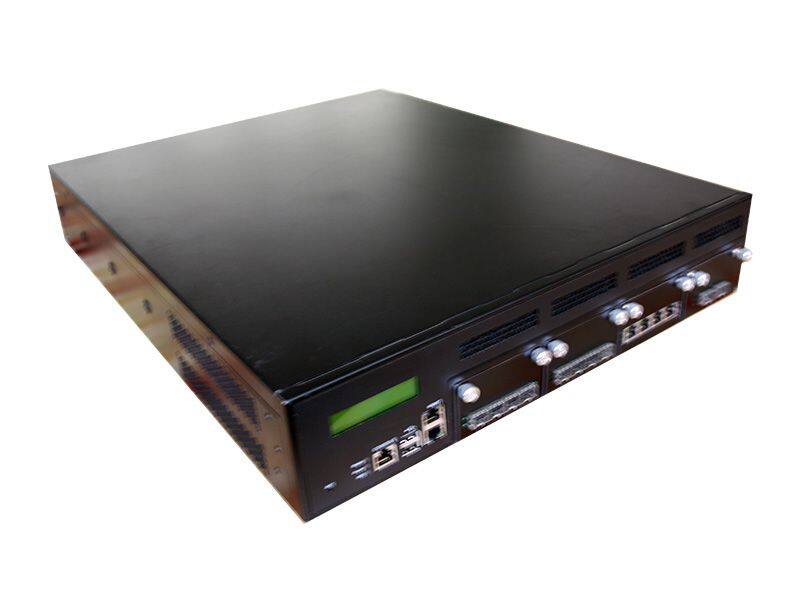

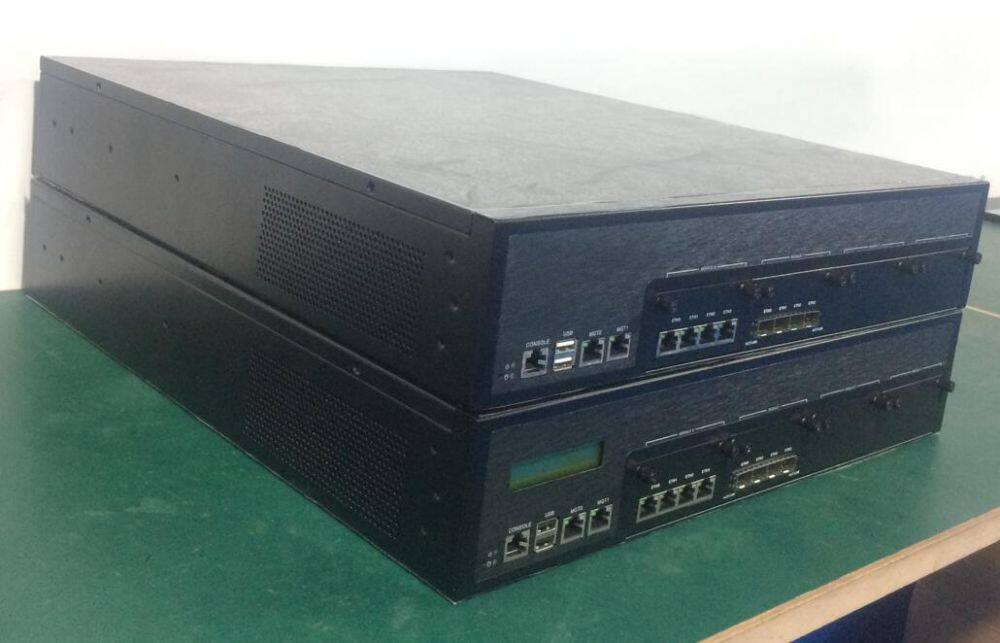

F23224 is a 2U Network security appliance, 4 NMC slots, rackmount, Xeon E3 and 6th/7th Gen Intel Core i7/i5/i3 Processor supports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four lan cards up to 32 GbE RJ45/SFP or 8x 10g SFP networking ports.

More model list for Network security appliancenetwork, firewall, hardware, utm, VPN, security, IPS, IDS applications.

Specifications

Motherboard

CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
Chipset Intel C236
BIOS UEFI BIOS
System memory Four dual-channels DDR4 ram slots, up to 64GB

Storage

Interface Four SATA3.0 connectors  support RAID 0, 1, 5, 10
Hard Drive Four 3.5/2.5" HDD trays
SSD One mSATA slot

Ethernet

LAN Port Two 10/100/1000Mbps RJ-45 ports

Ethernet Controller Two  Intel PCIe controllers

System I/O

USB Two USB3.0
     Internal with four USB2.0 and two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Watchdog Timer Software programmable supports 1~255sec System reset
Expansion Four PCIex8 for 4 expansion lan cards and one built-in PCIEx4

Power supply

Power consumption Built-in 300W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 550x440x88mm
Weight 18.3 kg

F23224  Network security appliance, 4 NMC slots, rackmount, Xeon E3 and 6th/7th Gen Intel Core i7/i5/i3 Processor
