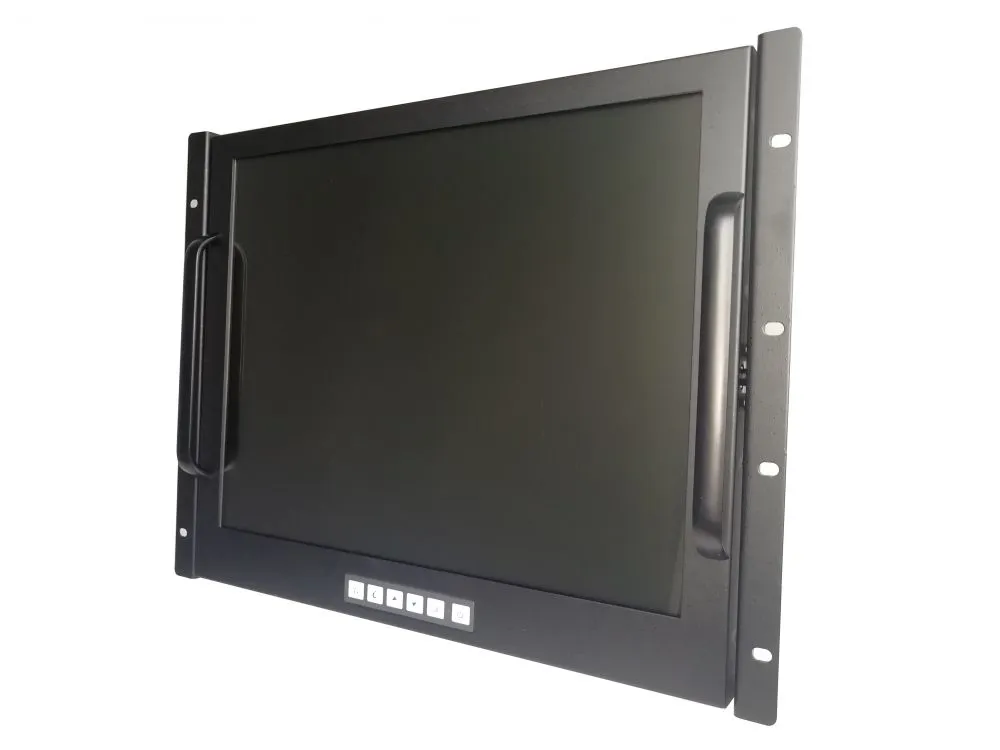

17 inch LCD Rack mount monitor with touch screen

17 inches rack mount LCD monitor, 8U height


Features
19" Compact 17" rack mount display monitor with 8U height
17" SXGA TFT LCD Panel support 1280×1024 pixels
90°tilt adjustment while mounted in rack: +45 °~ -45°
Input signal : VGA + DVI + AUDIO
300 cd/m2 brightness
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)
Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
 Specifications

TFT characteristics
Display Type 17" SXGA TFT LCD
Resolution 1280x1024
lor 16.7M
Luminance 300 cd/m2
View Angle 178°(H) , 178°(V)
Pixel Pitch 0.264 x 0.264mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

Mechanical and Environmental
Construction Heavy duty steel and aluminum front panel
Dimensions (WxHxD) 482.6 x 354.8 x 48 mm
Weight Net: 7.0kg , Gross:10.3kg
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input

Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input Aviation 2pin Plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Power Specifications
Input 100~240VAC,50/60Hz
Output DC12V@ 5A / 60W ,external ac adapter

Ordering informations
VGA + DVI input
RCIM-17 17" LCD Industrial Rack Mount Monitor with VGA + DVI + Audio input
RCIM-17TC 17" LCD Industrial Rack Mount Monitor with VGA + DVI + Audio input, with touch screen and RS232 controller
RCIM-17TU 17" LCD Industrial Rack Mount Monitor with VGA + DVI + Audio input, with touch screen and USB controller
