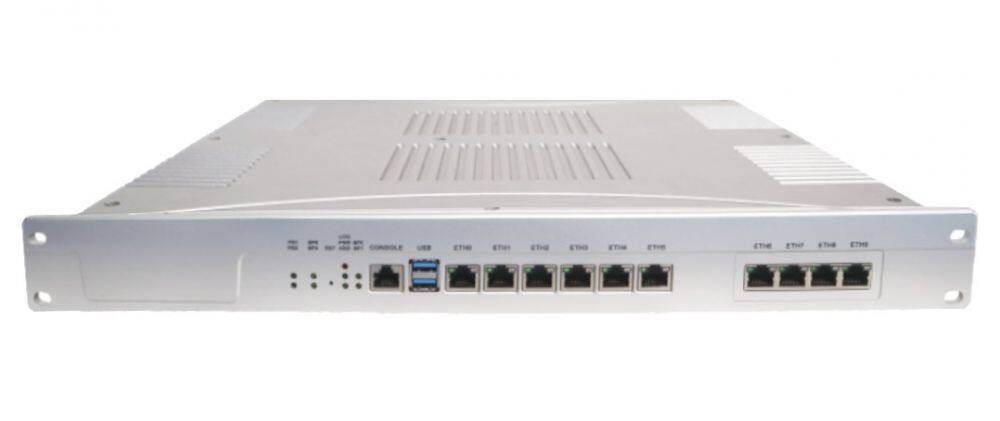

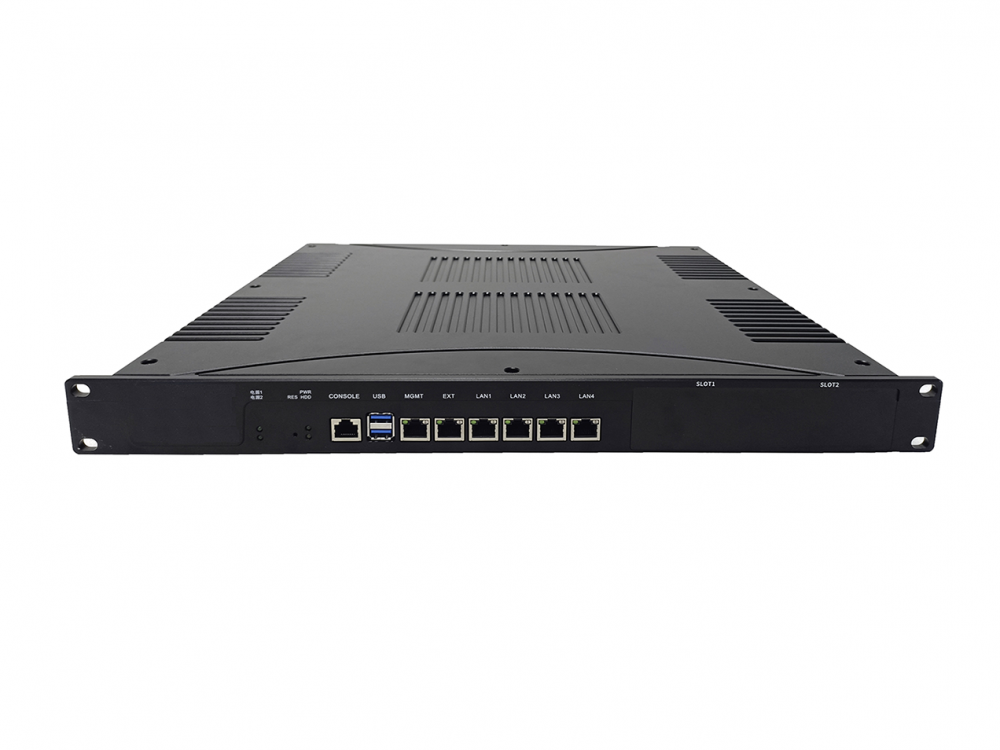

Industrial Firewall Appliance Fanless Ruggedized Network Hardware Supports Dual 100~260V AC Voltage or 120V~370V DC in for Industry Network Firewall

Fanless Ruggedized Industrial firewall appliance Supports Dual 100~260V AC Voltage or 120V~370V DC in for industry network firewall. ruggedized construction. fanless design with Intel C236 chipset LGA1151 socket supports Gen 7/6th/ Gen10/11th i3 i5 i7 CPU, support dual 100~260V AC voltage or 120V~370V DC power supply

Ruggedized Industrial firewall appliance, 1u Ruggedized aluminium chassis, fanless design with Intel C236 chipset LGA1151 socket supports Gen 7/6th i3 i5 i7 CPU, support dual 100~260V AC voltage or 120V~370V DC power supply

• Fanless Industrial firewall appliance with Ruggedized construction

• Supports Intel LGA1151 socket Gen6/7 i3 i5 i7 Core, Pentium processor

• Intel C236 chipset

• Two dual-channel 2133/2400MHz DDR4 slots, up to 64 GB

• Six Intel PCIe GbE controllers for six network ports

• Two SATA3.0 6Gb/s, one mSATA and one M.2

• Supports USB3.0, COM, VGA interface

• Supports AC power and DC power dual mixed redundant input,with power failure alarm

• Two PCIEx8 slots, support add MAX 2 nic modules

• CPU Supports Intel LGA1151 Socket Gen6/Gen7 i3/i5/i7 Core, Pentium processor

• Chipset Intel HC236 chipset

• BIOS SPI Flash BIOS

• System memory Two 2133/2400MHz DDR4 slots, up to 64GB

• Interface Two SATA3.0 connector

• Hard Drive One 2.5" HDD tray

• SSD one mSATA and one M.2 interfaces

• LAN Port Six 10/100/1000Mbps RJ-45 ports

• Ethernet Controller Six Intel I210AT PCIe GbE controllers

• BYPASS 2 channels 3.0 LAN BYPASS

• Indicator LAN link, active, speed LED, built-in BYPASS function LED

• USB Two USB3.0

• COM One RJ-45 COM console

• Indicator One Power LED, one HDD LED

• Serial ports One RS232 Pin for LCM display module

• Video Built-in one VGA interface, support hot plug(Internal)

• Watchdog 1~255 seconds programmable software watchdog, support system reset

• Expansion Two PCIex8 slots for LAN cards

• Power Type 225W dual power redundant input, 4000V AC high isolation voltage

• Power Input Support 100~260V AC voltage or 120V~370V DC voltage

• Power Options Dual AC input/ Dual DC input/ One AC + One DC, with power failure alarm function

• Mounting Supports rack-mounting or desktop-mounting

• Operate Temperature -20°C ~ 70°C

• Storage Temperature -40°C ~ 85°C

• Operate Humidity 5% ~ 85% non-condensing

• Storage Humidity 5% ~ 95% non-condensing

• Chassis Color Black/ Silver/ OEM

• Front panel Aluminum front panel(OEM/Neutral)

• Construction Ruggedized Aluminum chassis

• Dimensions (D x W x H) 450x438x45 mm

• Weight 16.5kg

• F23617 Industrial Industrial firewall appliance with 1u rackmount ruggedized chassis, Motheboard based C236 Chipset, 6 x GbE RJ45, 2 channels bypass,2 NIC extension, dual power redundant input
