Industrial all in one pc with 15 inch LCD, touch panel, 6xCOM(5*S232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC.
8~21.5 inch size are avaliable. OEM is accept. 6mm Aluminum front bezel with resitive touch screen option, meets NAME4 IP65 level
Features
15" XGA TFT LCD Panel support 1024x768 pixels
6mm Aluminum front bezel with resitive touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP, Win7/Win8/Win10, Linux
6xCOM(5*S232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (optional Wide range DC 9-36V input)
Panel ( Flush ) mount with clips
Standard VESA 75/100mm support stand , wall mount and swing arm
Specifications
System
Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage 500G HDD(SSD optional)
Graphic Intel HD chipset
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA
Audio 1x Mic-inand 1x Line-out
USB Port 4 x USB 2.0
Serial Port 6*COM(5* RS232,1*RS422/RS485)
Parallel ports(LPT) 1 x SPP/EPP/ECP port
Keyboard /Mouse 2xPS/2
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(6 mm) and steel chassis
LCD display
Display Type 15" XGA TFT LCD(LED backlight)
Resolution 1024x768
lor 16.2M
Luminance 450 cd/m2
View Angle 160°(H) , 140°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 700:1
Response Time 12 ms
LCD MTBF 50, 000hrs
Touchscreen
Type Resistive Touchscreen with internal USB interface controller
Resolution Continuous
Light Transmission 80% or more
Surface hardness 3H
Operating Force ≤100g
Life Expectancy 35 Millions
Environmental
Operate temperature 32 °F~113 °F (0 °C to 45°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Power supply
Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 32W
Packing info
Dimensions (WxHxD) 406 x 312 x 75mm
Weight Net: 6.8kg , Gross:8.6kg

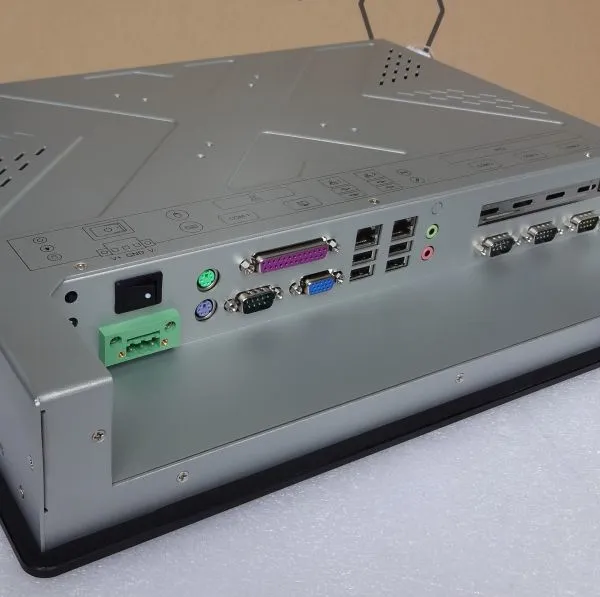

Industrial Panel PC with 1 LPT

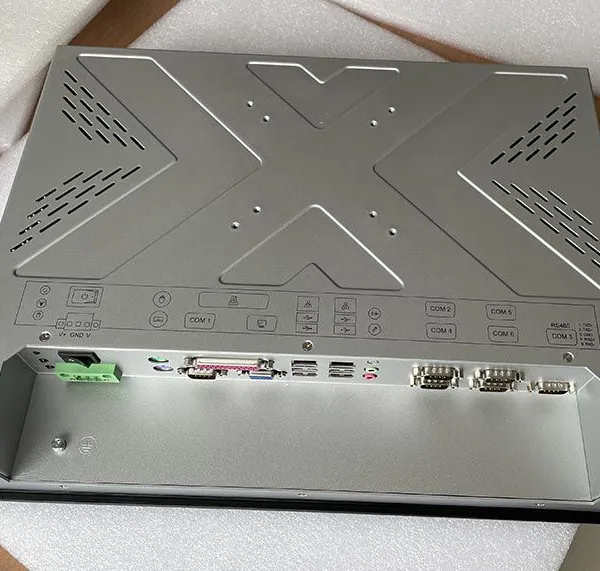

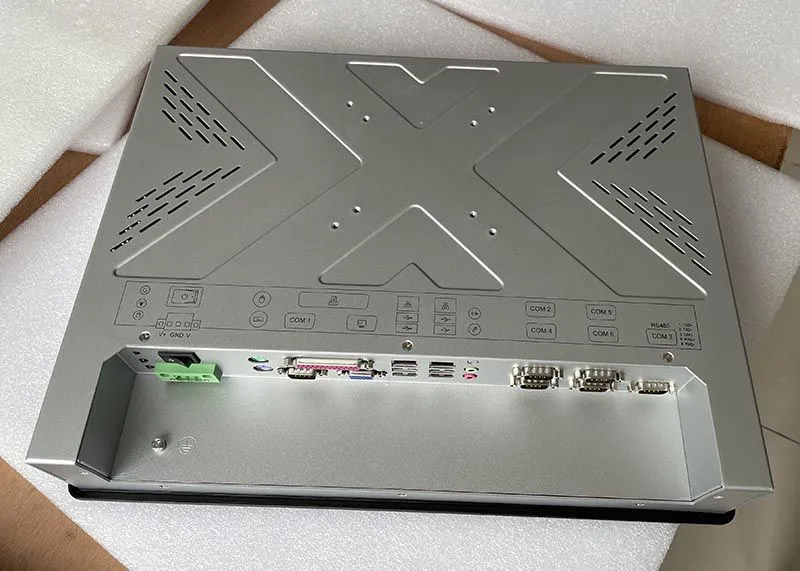

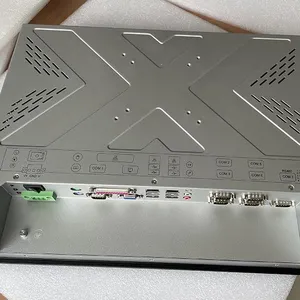

Panel PC with 1 LPT interface

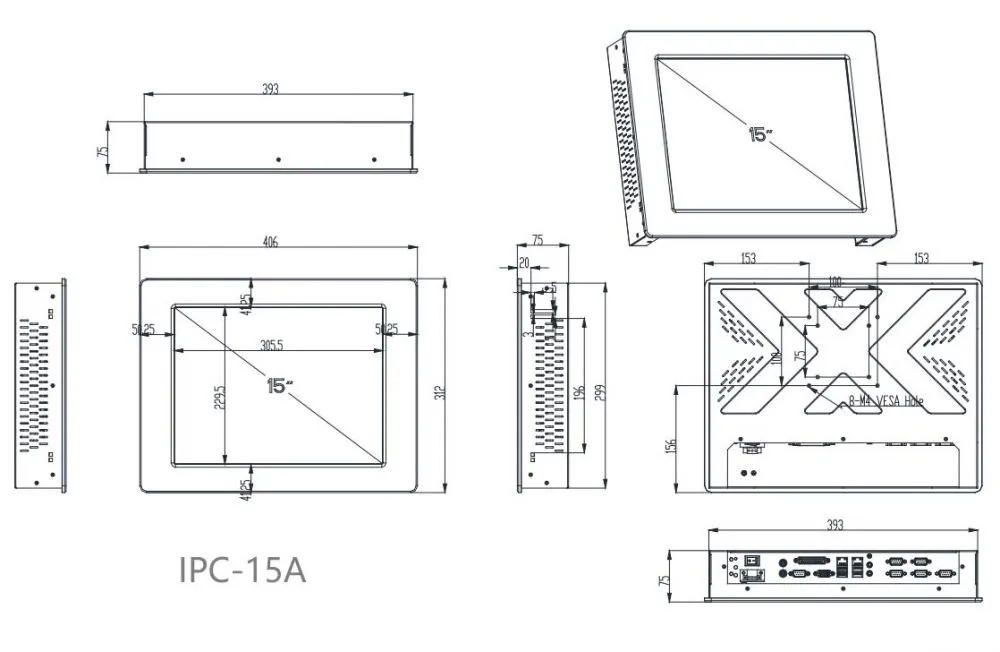

All in one dimesions
