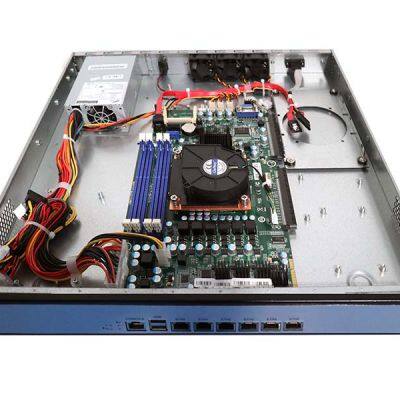

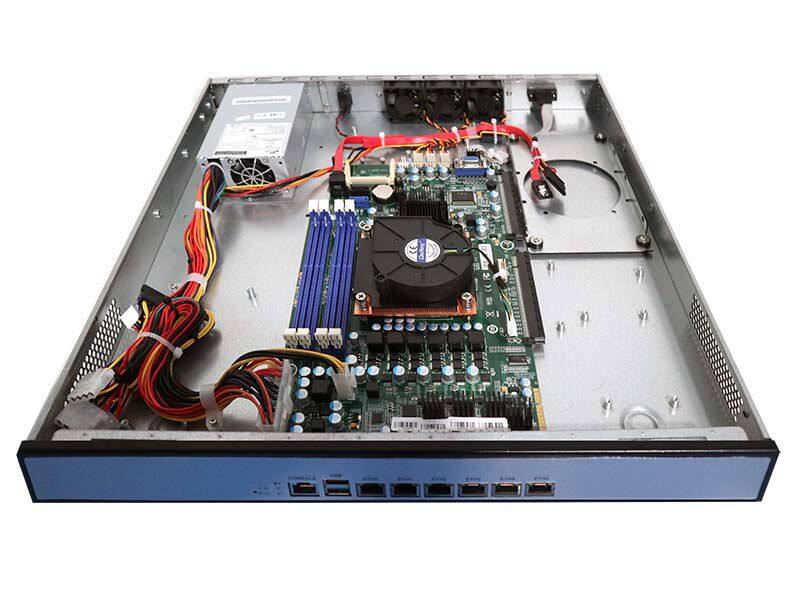

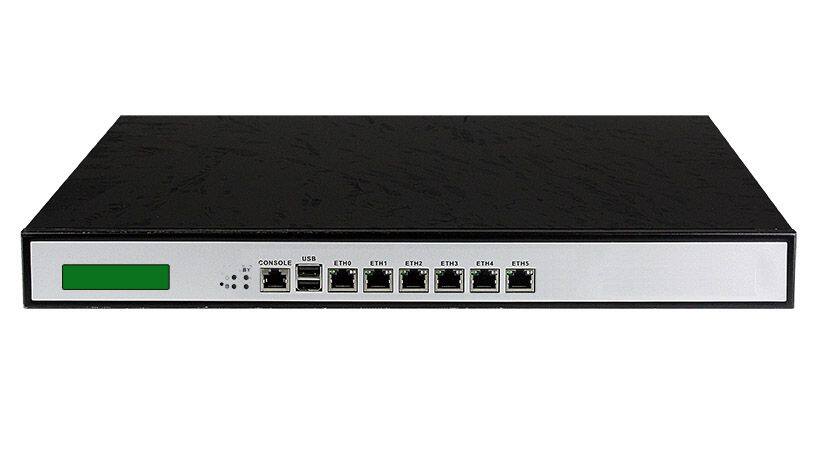

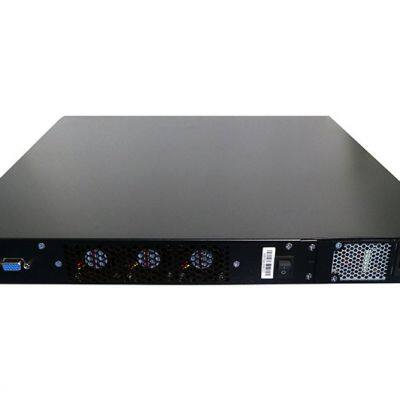

F20611 is an 1u rackmount network appliance with an industrial motherboard based on Intel ® C206 chipset, LGA1155 socket, 6 Rj45 GbE i3 i5 i7 CPU, single or redundant power supply, it supports choose multiple Ethernet modules, RAM, Storage, Power, for flexible configuration. for network security applicaiton system, firewall utm etc.
Supports on Sandy and Ivy bridge Cipset, 1u/2u network platforms supports socket LGA1155 Intel skylake CPU list.
Supports Intel LGA1155 socket Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
Intel C206 chipset
Four 240-pin 1333/1600MHz DDR3 DIMM slots, up to 32 GB
Six Intel PCIe GbE controllers, support two channels bypass
Three SATA2.0 and one SATA3.0 interface,
One/two HDD trays supports RAID 0, 1, 5, 10
Supports USB, CF TypeII, COM
Motherboard
CPU Support Intel LGA1155 socket Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
Chipset Intel C206
System memory Four DDR3 slots, up to 32GB
Storage
Interface Two SATA2.0 and one SATA3.0 connectors
Hard Drive Supports one 3.5/2.5" HDD tray
CF slot One CFII slot
Ethernet
LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel PCIe GbE controllers
BYPASS Two channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
USB Two USB2.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One PCIex16 and one PCIex4
Power supply
Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10 °C ~ 50 °C
Storage Temperature -20 °C ~ 75 °C
Operate Humidity 5% ~ 85% non-condensing @ 40 °C
Storage Humidity 5% ~ 95% non-condensing
Mechanical
Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x44.5mm
Weight 12.8 kg
