Anxin's din rail type industrial computers, din rail type network appliances support to be pasted your logo and brand, and OEM to your styles and models for your applicaitons and projects. They are widely used in industrialized transportation systems to control and manage the flow of people and goods.

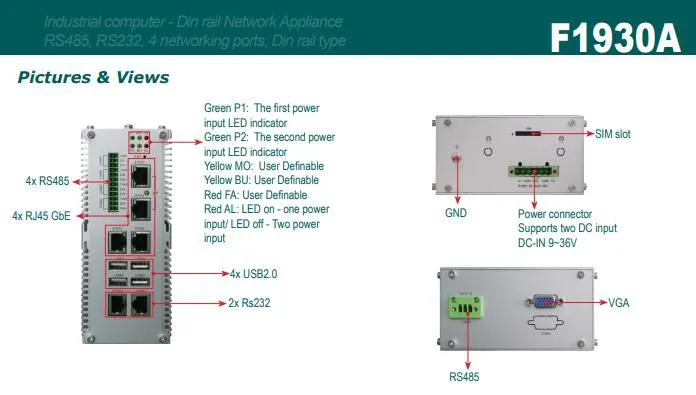

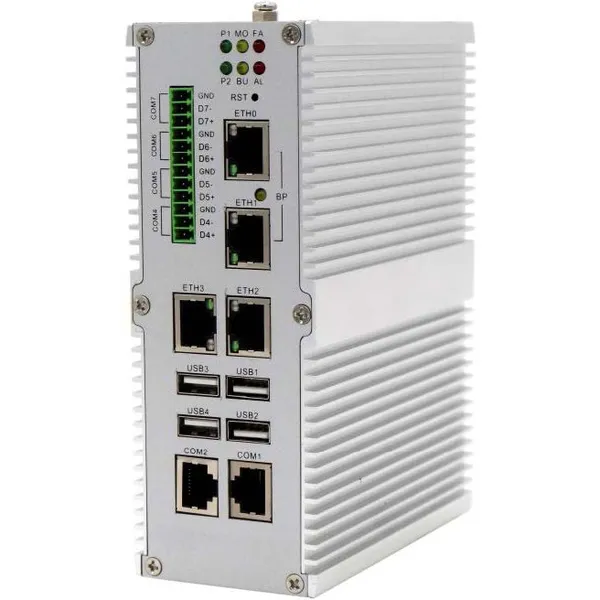

F1930A is an industrial embedded computer, small alunimium chassis, Wide temperature Fanless Industrial Embedded computer with Intel E3845 CPU, 4x GbE RJ45, 2x Rs232, 5x RS485 COM, dual 9~36V DC input
Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Four Gigabit Ethernet ports, support one channel LAN BYPASS
Two RS232 RJ-45 port
Five RS-485 COM isolated interface
Optional a 4G model(external SIM slot)
Four USB2.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments
CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
BIOS SPI FLASH BIOS
System memory Max 8GB RAM
Interface One SATA Interface
SSD MAX 512G industrial mSATA SSD
CF slot None
LAN Port Rj45 Four 10/100/1000Mbps RJ45 network interfaces
BYPASS Suppoer one channel LAN BYPASS
Indicator With LAN link, active, speed LED, built-in BYPASS status LED
USB Four USB2.0
COM RS232 Two RS232 COM RJ-45 connectors
COM RS485 Five RS485 COM Phoenix connectors
Indicator One Power LED, one HDD LED
Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536
USB Four USB2.0 Pin interface
Reset One built-in reset button
COM One RS232 Pin interface, optional external RS-485 interface with isolation
DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
Watchdog 1~255 seconds programmable software watchdog, support system reset
4G module One full Netcom 4G module, external SIM slot
Power consumption 60W power adapter
Power input Dual 9 ~ 36V wide range DC input
Mounting Support DIN-RAIL rail type installation
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Chassis Color Silver
Front panel Front panel silk-screen [Customized LOGO optional]
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158.1x122x60.8 mm
Weight 3.5 kg

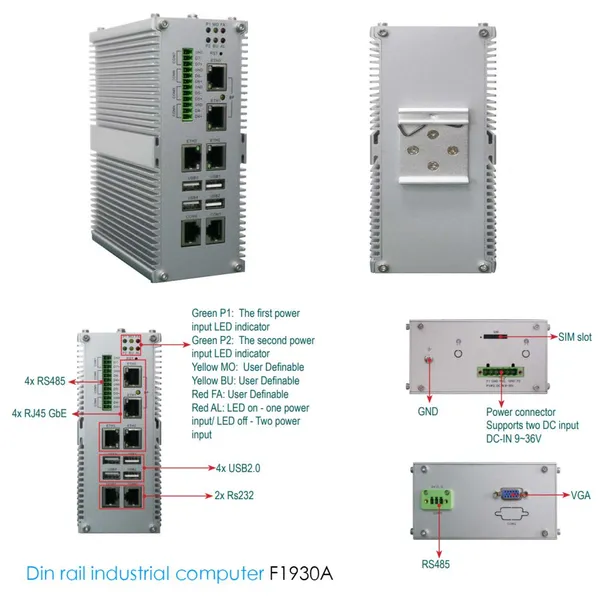

F1930A Din rail type industrial computer, Aluminum extrusion chassis, E3845 CPU, 4 x GbE RJ45 with one lan bypass, 2x Rs232 and 5 RS485 COM, 60W Power adapter
