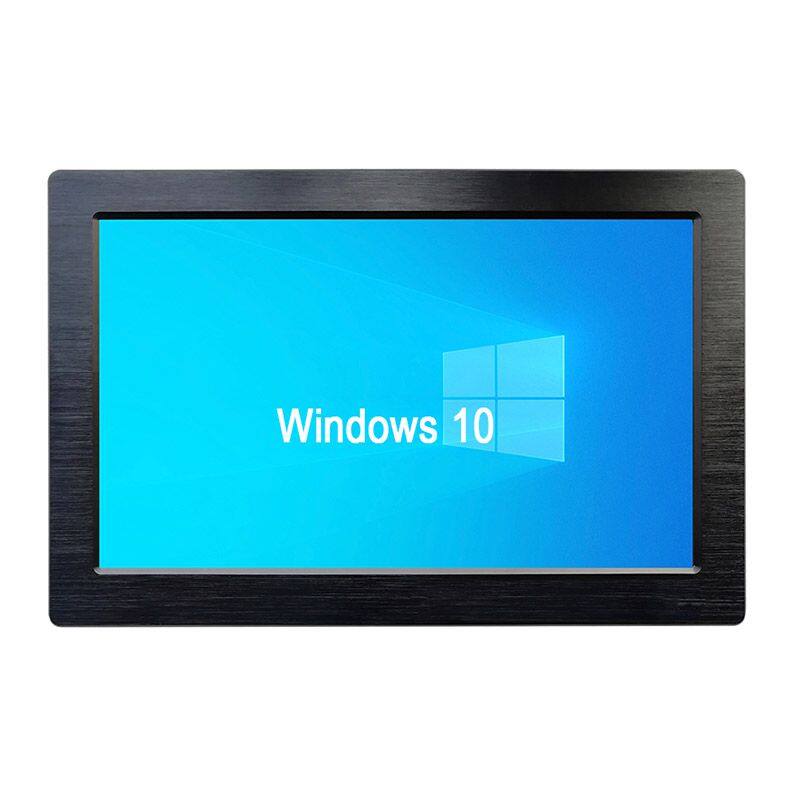

15.6-inch Industrial Touch Screen Monitor

Also, We provide 8~19 inch wide screen industrial monitor with  touch screen and HDMI VGA.  Their model NO are: IDM-08,IDM-10,IDM-12,IDM-15,IDM-17,IDM-19, welcome to order and OEM. The Application for Automation control, M2M, Heavy Manufacturing Equipment,CNC, machine tool,HMI, Kiosk etc.

IDM-156W is an industrial monitor,  It offers flexible options speakers, OSD button, audio input, video input. IDM-156WTC & IDM-156WTU are models with touch screen.. 8~32 inch lcd and OEM are avaible.

• 15.6" wide Full HD LCD Panel support 1920 x 1080 pixels, 400 cd/m2 brightness

• 6mm Aluminum bezel panel with touch screen/strengthen glass

• Flat, sealed and modularized design

• Direct VGA, HDMI input interfaces

• OSD control keys to optimize the display (Optional)

• Power adapter with AC 100 V ~ 240 V input and DC +12 V  output

• Optional 9 ~ 36 VDC power input

• NEMA4 / IP 65 compliant front panel

• Supports panel, wall, desktop, rack or VESA arm mounting


• Display Type 15.6" Wide Full HD LCD

• Resolution 1920 x 1080

• lor 16.7M

• Luminance 400 cd/m2

• View Angle 160°(H) , 140°(V)

• Contrast Ratio 700:1

• Response Time 8 ms

• Backlight Life 50,000hrs

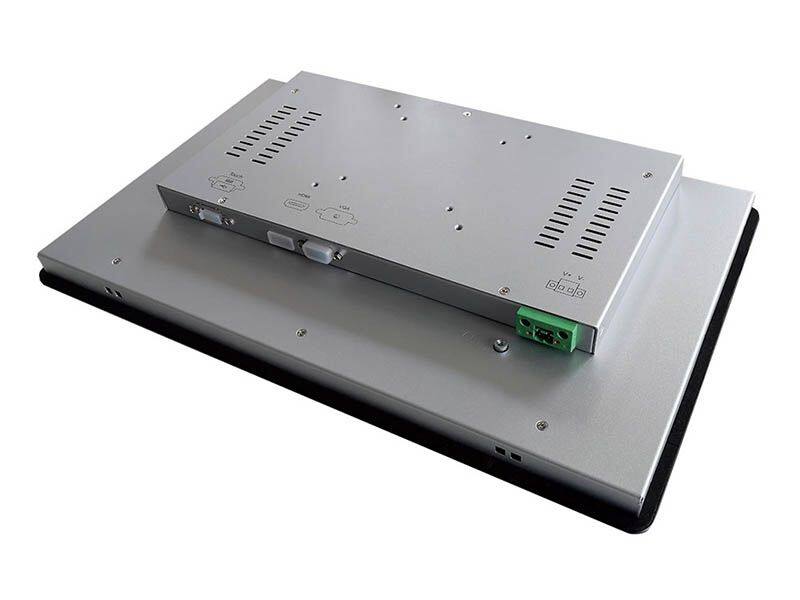

• RGB Signal D-SUB 15P Connector (female)

• DC input 2-Pin Terminal Block

• HDMI Signal HDMI connector (female)

• Touch screen RS232 (option) D-SUB 9p connector (female)

• Touch screen USB (option) USB-A type connector (female)

• Touch screen Resistive type touch screen with USB  controller

• DC Power Input Wide Range 9~36v DC input

• Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter

• DC-DC Power DC 9 ~ 36v input power module(optional)

• Construction Heavy duty steel and aluminum front panel

• Operate temperature -10°C~ 60°C (-14~140°F)

• Storage temperature -20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity 5% to 95% non-condensing

• Anti-Vibration 17HZ-500 HZ 1G PTP

• Anti-Shock 1G / peak( 11m sec)

• Dimensions (WxHxD) 402x 252 x 45 mm

• Weight Net: 7.5kg , Gross: 9 kg
