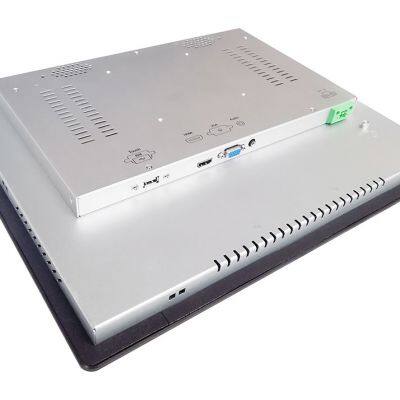

Help Center17 Inch Touch Screen Monitor for Industrial Applications
Related Products
-
17 Inch Industrial Monitor With Touch ScreenNegotiableMOQ: 2 Pieces -
15.6 Inch Ruggedized Portable LCD Display Monitor Console With Keyboard and TouchpadNegotiableMOQ: 1 Piece
-
12.1 Inch Industrial Monitor With LCD Panel 800x600 1024x768 or Widescreen1280x800NegotiableMOQ: 1 Unit
-
15.6 Inch Display Lcd Industrial MonitorNegotiableMOQ: 2 Units
-
Network Security Appliance Hardware Platform Supports 64G RAM Max 10 Gigabit Network PortsNegotiableMOQ: 2 Pieces
IDM-17V is an industrial monitor with a 17 inch flat panel LCD 1280x1024panel, HDMI/DVI and VGA, touch screen or strengthen grass. 6mm aluminum panel, IP65 level, idealy use into HMI, Kisok, Automation machine, M2M, Smart factory，heavy Manufacturing Equipment, CNC, machine tool,HMI, Kiosk etc.
Wide screen version
Features
17" SXGA TFT LCD Monitor support 1280 x 1024 pixels,300 cd/m2 brightness
6mm Aluminum bezel panel with touch screen/strengthen glass
Rugged construction and modularized design
VGA + DVI or HDMI + Audio Input signal(AV and Other Optional)
2 x stereo speakers for industrial automation system voice output
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
NEMA4 / IP 65 compliant front panel
Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
Application for LCD monitor, HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)
Specifications
Display LCD
Display Type 17" SXGA TFT LCD
Resolution 1280x1024
lor 16.7M
Luminance 300 cd/m2
View Angle 178°(H) , 178°(V)
Pixel Pitch 0.264 x 0.264mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs
Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input
Power supply
Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
Construction Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info
Dimensions (WxHxD) 408 x 345 x 47 mm
Weight Net: 8.0kg , Gross:10.5 kg
