Network Security Appliance Firewall Hardware With 2 NMC Slots

Firewall hardware barebone 1u rackmoun Network security Appliance with intel J6413 cpu and 2 NMC slots, industrial quality.

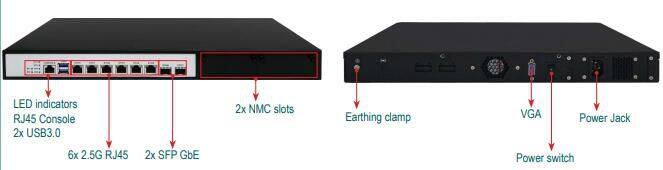

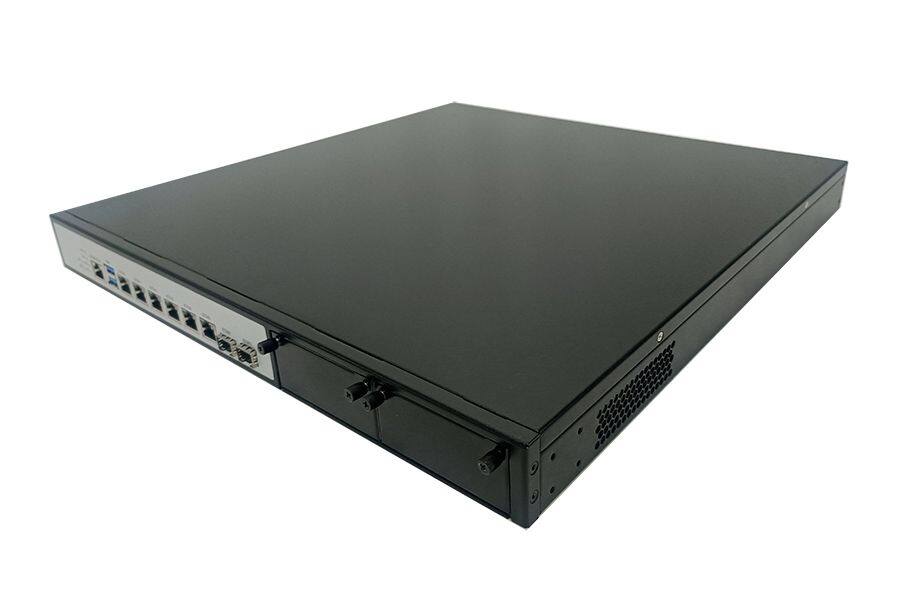

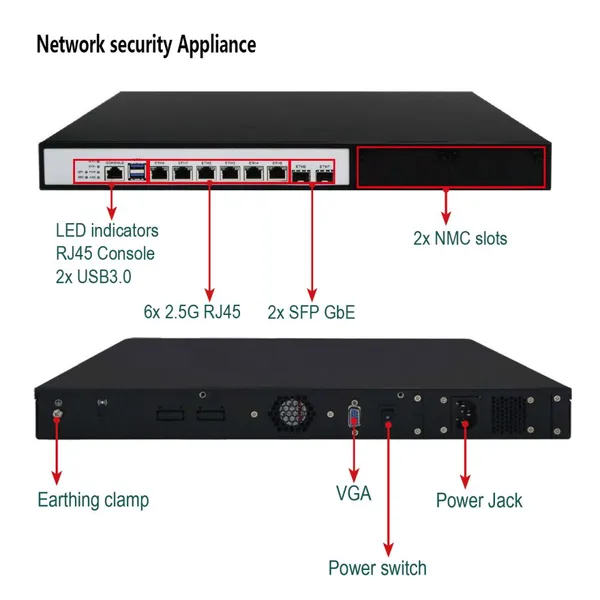

F64817 is a 1U nerwork firewall hardware barebone, rackmount network security Appliance, its motherboard with Intel® J6413 CPU, 6x 2.5G networking ports, 2 NMC slots support NIC modules extension with more RJ45/SFP Gbe, one SATA and one mSATA interface, CF slots, supports single or redundant power supply.

Features

• Nework security appliance with 2 NMC slots

• Onboard Intel Celeron Quad-core J6413 processor, 1.8GHz, 1.5MB L2 cache

• One 260-pin 3200MHz so-DIMM slot, up to 32 GB

• Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass

• Two SFP 1G optical ports

• Two NMC slots extension for NIC modules with more RJ45/SFP GbE network ports

• One SATA interface and one mSATA interface

• Two USB3.0, One CF TypeII

• One RJ45 console for RS232 communication

Specifications

Motherboard

• CPU Onboard Intel Celeron J6413 processor CPU

• System memory One so-DIMM slot, Max 32GB

Storage

• Interface One SATA connector and one mSATA interface

• Hard Drive One 2.5/3.5" HDD tray

• CF slot One CFII slot

Ethernet

• LAN Port Six 2.5G RJ45 network interfaces

• Ethernet Controller Intel® Ethernet Controller I225-V

• BYPASS Two  channels Gen3.0 BYPASS

• Optical ports Two GBE SFP ports

• NMC slots Supports 2 NIC modules extension

• Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

• USB Two USB3.0

• COM One RJ-45 COM

• Reset Button One built-in reset button

• Indicator One Power LED, one HDD LED

• Video Built-in one VGA interface, support hot plug(Internal)

Power supply

• Power consumption Built-in 65W power supply

• Power input 100 ~ 240V AC input

• Optional DC power or Redundant power

Environmental

• Mounting Supports rack-mounting or desktop-mounting

• Operate Temperature -10°C ~ 50°C

• Storage Temperature -20°C ~ 75°C

• Operate Humidity 5% ~ 85% non-condensing @ 40°C

• Storage Humidity 5% ~ 95% non-condensing

Mechanical

• Chassis Color Black or OEM

• Front panel Silver PVC/Aluminum front panel(OEM/Neutral)

• Construction 1u chassis, Heavy duty metal

• Dimensions (D x W x H) 450x430x45 mm

• Weight 6.0 kg

Ordering informations

• F64817 Network firewall hardware, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 2 NMC slots, 65W PSU
