4U Industrial rackmount computer Chassis supports ATX or Micro-ATX motherboard

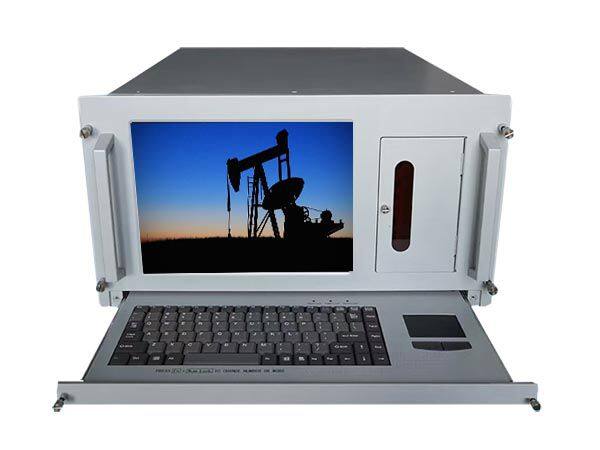

RCWS-08N/T is an 8 inch lcd industrial computer workstation, ATX/  Micro-ATX , 4U rackmount chassis, HDD/SSD,RAM and motherboard and FSB is optional, support 14 slots PCI/ ISA Backplane or ATX/  Micro-ATX motherboard, to factor, with keyboard and touchpad, touchsreen is optional. its ideal for for industrial automation, artificial intelligence, machine learning, data acquisition, content caching applications, inudstrial 4.0.

Features

• 4U height Industrial computer Rackmount workstation IPC chassis

• Support Full-size CPU card or ATX/Micro-ATX motherboard foam factor

• For ATX motherboard 7 expansion slots/ backplane 14 expansion slots

• 8"SVGA TFT LCD display Support 1024x768 pixels,250 cd/m2 brightness

• Built-in keyboard and Touchpad drawer

• Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives

• Signal input VGA and DVI interface

• 2xUSB Accessible from the front door

• Support PS2 and redundant power supply

• Power & HDD status indicator by front viewable LED indicator

• Aluminiumfront panel, Heavy duty steel chassis

Specifications

System

Construction Compact 19" 4u Rackmount Chassis
Disk Driver Bay 5.25" x1 , 3.5" x2
Cooling Fan 2xcooling fan, with air filter andMoistureproof design
Keyboard Built-in full-function keyboard and touch pad.
OSD OSD function in front panel
I/O Connector Front panel: 2xUSB2.0
Rear panel: DVI, VGA, USB, PS/2(Optional)
LED indicators & Switch Power LED indicator(Green), HDD LED indicator(Red), PowerSwitch and reset
Color White

LCD display

Display type 8" XGA TFT LCD
Resolution 1024x768
Colors 16.7M

Backlight LED
Luminance 250 cd/m2
Contrast Ratio 700:1
View angle 110°(H) , 120°(V)

LCD MBTF 50,000hrs

Touchscreen(Optional)

Type Resistive Touch Screen
Resolution continuous
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 80% or more
Operating Force 250g

Environmental

Oprerating Tempreture -20 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C, non-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
Safty FCC/VDE(Level A)

Packing info

Dimensions(WxHxD) 386mm x 141.6mm x 376 mm
Packing Dimension 590x390x550mm
NET weight 16 KG

Ordering Information:

RCWS-08N 4U rackmount chassis, 8"TFT LCD,for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard foam factor
RCWS-08NT 4U rackmount chassis, 8"TFT LCD, touchscreen,for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard foam factor
