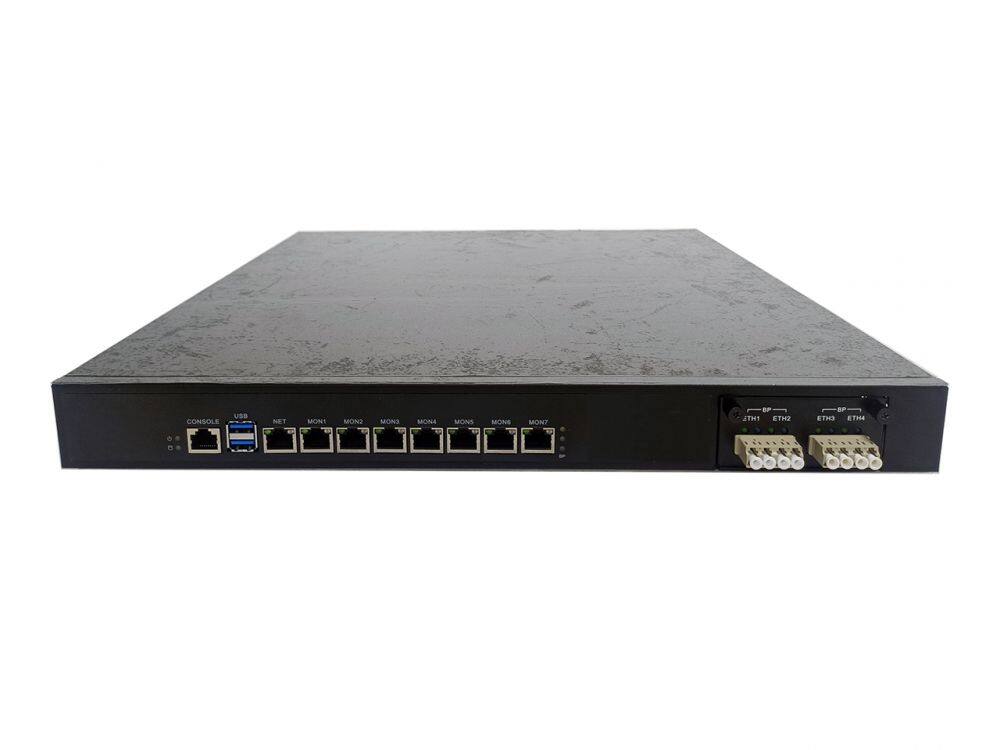

This configuration for F58811 is 8x 2.5G and 4x10G SFP+(support 2 groups optical bypass)

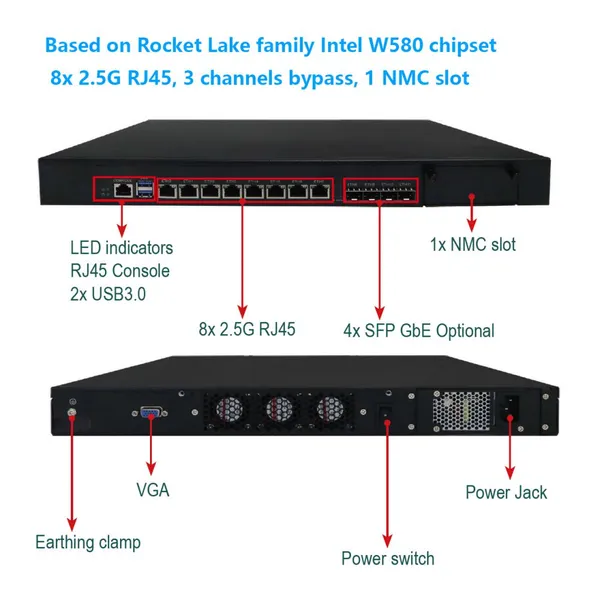

F58811 is a 1u Network cyber security Appliance support socket LGA 1200/ H5, I7 I9 Xeon W1200 W1300 CPU, based on Intel® Rocket Lake family Intel® W580 chipset, Network security appliance, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.2 multiple storages options and 4 ram slots MAX 128G RAM. 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU or 450W redundant PSU.
| Model NO | CPU | Max. RAM | Storage | LAN ports (Initial) |
Max.LAN ports (Scalability) |
Bypass | NMCs |
| F58811 | Gen10/Gen11 Core and Xeon W-1200/1300 series CPU | 128GB | SATA3.0, mSATA, M.2 | 8x 2.5G | 12x by NIC (SFP,SFP+, RJ45) |
3 groups | 1 NMC |
| F58214 | Gen10/Gen11 Core and Xeon W-1200/1300 series CPU | 128GB | SATA3.0, mSATA, M.2 | 2x 2.5G | 32x by NIC (SFP,SFP+, RJ45) |
Optional | 4 NMCs |
| F58224 | Gen10/Gen11 Core and Xeon W-1200/1300 series CPU | 128GB | SATA3.0, mSATA, M.2 | 2x 2.5G | 32x by NIC (SFP,SFP+, RJ45) |
Optional | 4 NMCs |
Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
Intel® W580 chipset(Rocket Lake family)
Four 288pin 2933/3200MHz DDR4 slots, up to 128GB
Eight Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass
One extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces
Supports SATA3.0, mSATA, M.2 multiple storages options
Front USB3.0, console interface and LED indicators
CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
Chipset Intel W580
System memory Four DDR4 slots, up to 128GB
Interface Two SATA3.0 connectors, one mSATA and one M.2 slots
Hard Drive Supports one 3.5/2.5" HDD tray
LAN Port Eight 2.5G RJ-45 ports
Ethernet Chip Intel® Ethernet Controller I225-V
BYPASS Optional 3 channels BYPASS
Optical ports Four 1G SFP(Optional)
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module

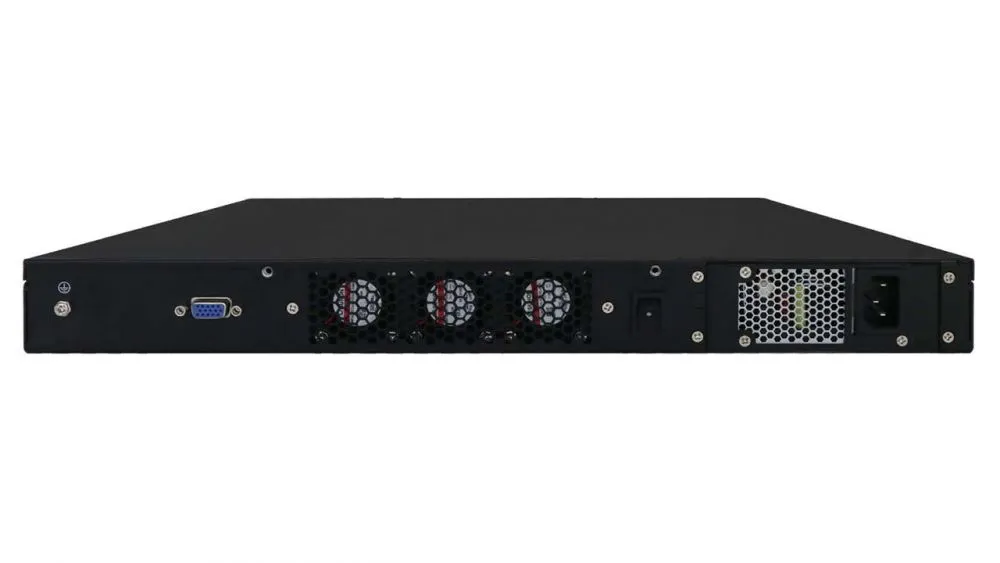

Video Built-in one VGA interface, support hot plug(Internal)
Expansion One NMC slot for extension NIC
Power consumption 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Chassis Color Black or OEM

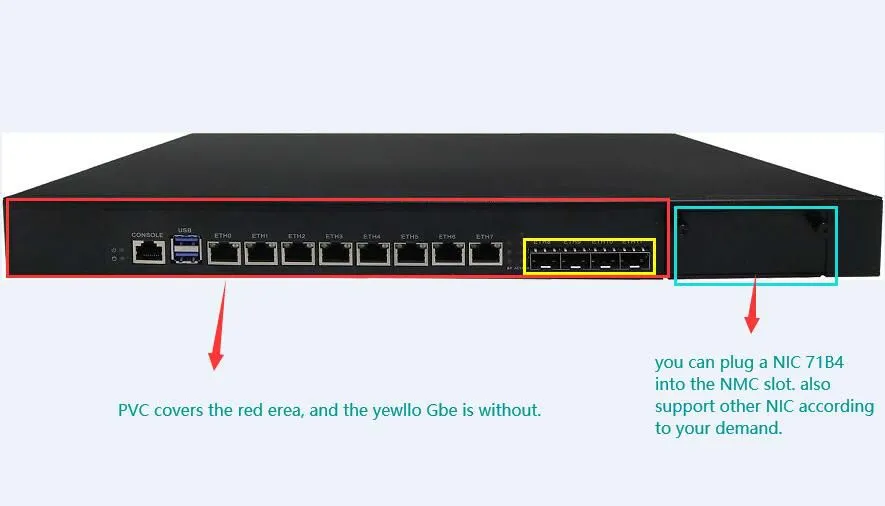

Front panel PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x45 mm
Weight 6.2 kg
