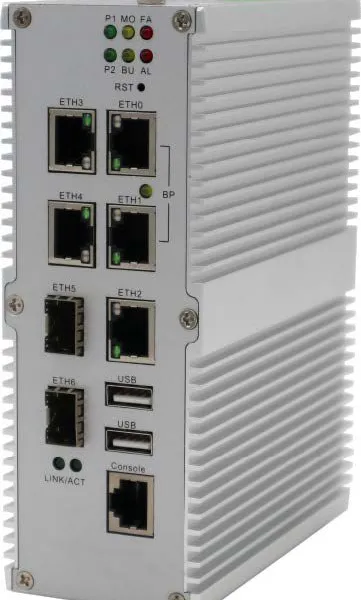

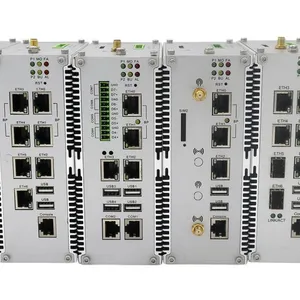

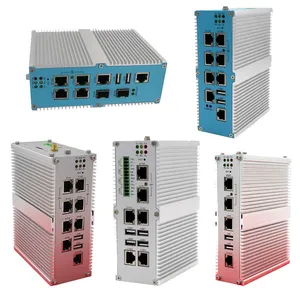

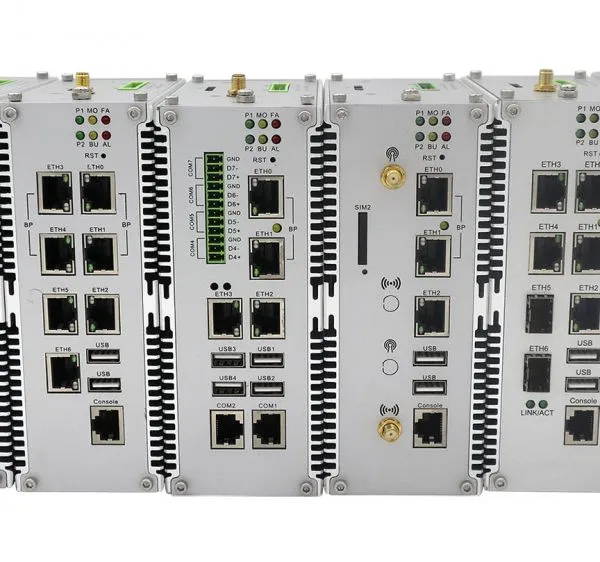

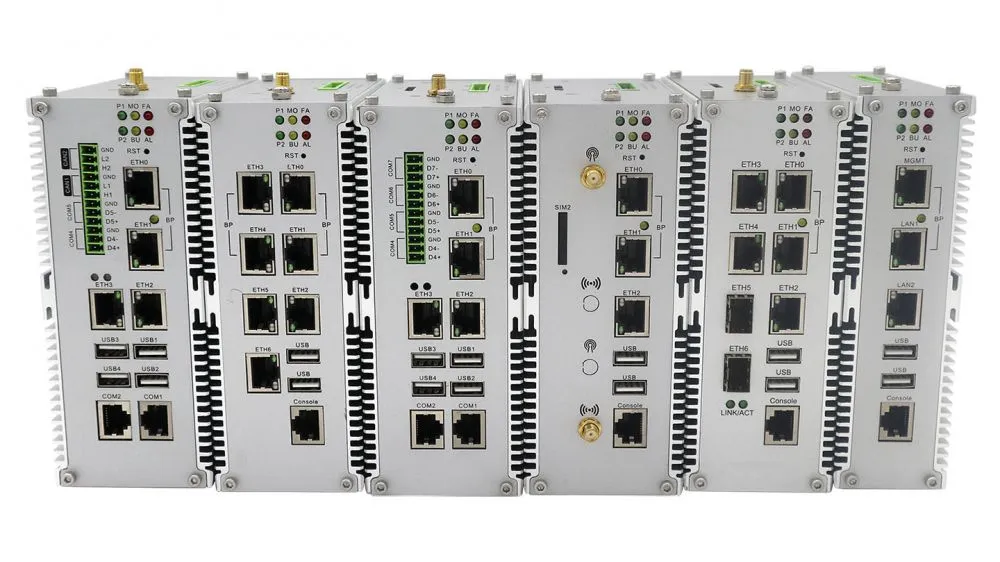

DIN-Rail Type industrial computer Network Appliances list:
Anxin's DIN-RAIL network appliances with E3845 processors are versatile devices that can be used in a wide range of applications in various industries. The E3845 processor can handle multiple inputs and outputs, making it ideal for applications that require fast and precise data acquisition and processing. In addition to this, offer a powerful and versatile solution for a wide range of industrial/ IOT applications. With their rugged design and wide temperature range, they can operate in harsh environments.
| Model NO | LAN | I/O | Datasheet |
|---|---|---|---|
| F19307 | 3 GbE RJ45 | 1 RS-485, 1 console, 2 USB2.0 | Datasheet (PDF) |
| F19308 | 2 SFP + 5 RJ45 Gbe | 1 Console, 1x RS232, 1 RS-485, 2 USB2.0 | Datasheet (PDF) |
| F1930A | 4 GBE RJ45 | 5 RS-485, 2 RS232, 2 USB2.0 | Datasheet (PDF) |
| F1930B | 7 GBE RJ45 | 2 RJ45 RSS232, 1 RS485, 2 USB2.0 | Datasheet (PDF) |
Wide temperature Fanless Industrial Network Appliance with 4 GbE Rj45 2 RS232 5 RS485
F1930A
Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Four Gigabit Ethernet ports, support one channel LAN BYPASS
Two RS232 RJ-45 port
Five RS-485 COM isolated interface
Optional a 4G model(external SIM slot)
Four USB2.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments
Industrial application computer
Wide temperature Industrial embedded application Network Appliance with Intel E3845 processor
F1930B
Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Seven Gigabit Ethernet ports, support Two channels LAN BYPASS
Two RS232 port(1 xRJ45 and 1x DB9)
One RS485 COM isolated phoenix interface
Optional a 4G model(external SIM slot)
Two USB2.0, mSATA storage
Two 9~36V DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments
