2u Network Appliance Support i7 i9 Xeon W Cpu and Multiple RJ45/ SFP/ 10g SFP+/ 40g Qsfp+

2u Network Appliance Support i7 i9 Xeon W Cpu and Multiple RJ45/ SFP/ 10g SFP+/ 40g Qsfp+ thumbnail-1
2u Network Appliance Support i7 i9 Xeon W Cpu and Multiple RJ45/ SFP/ 10g SFP+/ 40g Qsfp+ thumbnail-2
2u Network Appliance Support i7 i9 Xeon W Cpu and Multiple RJ45/ SFP/ 10g SFP+/ 40g Qsfp+ photo-1
2u Network Appliance Support i7 i9 Xeon W Cpu and Multiple RJ45/ SFP/ 10g SFP+/ 40g Qsfp+ photo-2
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Enterprise Level
Processor Type:
Intel Xeon
Power Supply:
Redundant PSU
Contact Supplier Request Quote Chat Now
Shanghai Anxin Intelligent Technology CO.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Enterprise Level
Processor Type Intel Xeon
Power Supply Redundant PSU
Max. CPUs 1
Number of CPu Threads 12
Supporting Memory Capacity 128GB
System Architecture X86 Server
Server Form Factor 2U
Storage Type Hybrid Storage(Combination of HDDs and SSDs)
Form Factor 2U

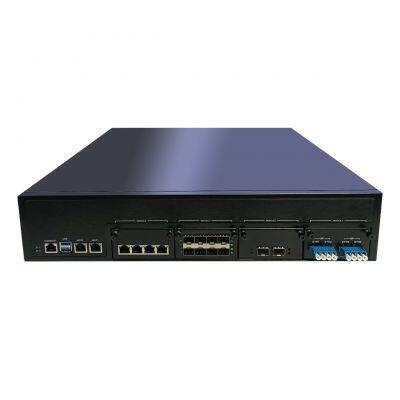

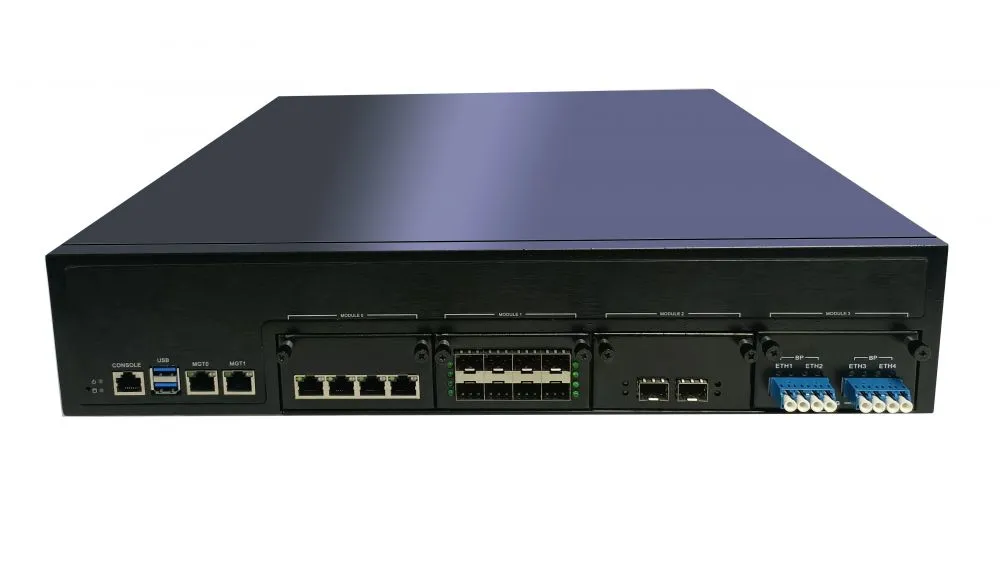

2U network appliance, The F58224 is a rackmount network appliance that can be customized with Intel® Xeon® and i7,i9 CPU , comes with high performance and flexible extensions in NIC for ports SFP/ 10G SFP+/ 40G QSFP+, storage and management, delivering excellent networking capacity for network traffic security, cloud computing and data centers.

2u network appliance support i7 i9 Xeon W CPU and 4 NMC for Flexible Nic RJ45/ SFP/ 10g SFP+/ 40g Qsfp+


Features

  • Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

  • Intel W580 chipset(Rocket Lake family)

  • Four 288pin 2933/3200MHz DDR4 slots, up to 128GB

  • Two Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass

  • Four extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+/QSFP+ interfaces

  • Supports SATA3.0, mSATA, M.2 multiple storages options

  • Front USB3.0,Console interface and LED indicators

Specifications
Motherboard

  • CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

  • Chipset Intel W580

  • System memory Four DDR4 slots, up to 128GB

Storage

  • Interface Two SATA3.0 connectors, one mSATA and one M.2 slot

  • Hard Drive Supports two 3.5/2.5" HDD tray

Ethernet

  • LAN Port Two 2.5G RJ-45 ports

  • Ethernet Chip Intel® Ethernet Controller I225-V

  • Extension ports Max 32 ports, extending by NMC slots

  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

  • USB Two USB3.0

  • COM One RJ-45 COM

  • Indicator One Power LED, one HDD LED

  • Video Built-in one VGA interface, support hot plug(Internal)

  • NMC slots Four NMC slots for extension NIC

  • Expansion PCIEx8 slots

Power supply

  • Power consumption 250W power supply

  • Power input 100 ~ 240V AC input

  • Optional DC power or Redundant power

Environmental

  • Mounting Supports rack-mounting or desktop-mounting

  • Operate Temperature -10°C ~ 50°C

  • Storage Temperature -20°C ~ 75°C

  • Operate Humidity 5% ~ 85% non-condensing @ 40°C

  • Storage Humidity 5% ~ 95% non-condensing

Mechanical

  • Chassis Color Black or OEM

  • Front panel PVC (OEM/Neutral)

  • Construction 1u chassis, Heavy duty metal

  • Dimensions (D x W x H) 500x440x88 mm

  • Weight 11.9 kg

Ordering informations

  • F58224 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 250W PSU

  • F58224-P2 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 550W redundant PSU

Optional NIC modules

  • 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers

  • 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers

  • 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers

  • 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers

  • 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers

  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass

  • 59W2 2 10G SFP+ LAN ports NIC module Lan card based on Intel 82599ES controllers

  • 59B2 2 10G SFP+ LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass

  • 71W4 4 10G SFP+ based on Intel XL710 controllers

  • 71B4 4 10G SFP+ based on Intel XL710 controllers, supports two channel optial bypass

  • 71Q2 2 40G QSFP+ based on Intel XL710 controllers
