Help Center15.6 Inch Industrial Monitor Without OSD Version
Related Products
-
Industrial Panel 8 Inch Lcd Display 1024x768 Touch Screen Monitor IDM-08NegotiableMOQ: 2 Units -
17 Inch Touch Screen Monitor for Industrial ApplicationsUS$ 315 - 1000MOQ: 1 Piece
-
Network Security Appliance Hardware Platform Supports 64G RAM Max 10 Gigabit Network PortsNegotiableMOQ: 2 Pieces
-
6U Height Rack Mount LCD DisplayNegotiableMOQ: 2 Pieces
-
Panel PCNegotiableMOQ: 2 Pieces

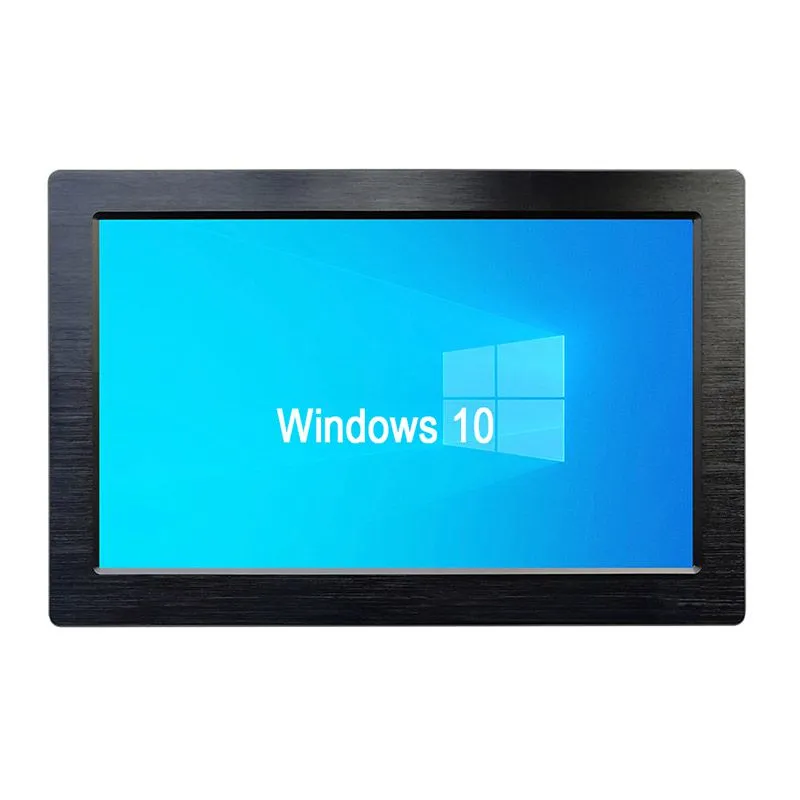

IDM-156W is an industrial monitor, OSD optional. its ip65 rate, 1920x1080, 15.6 inch lcd, touchscreen or Strengthen Glass and VGA HDMI, also an industrial monitor lcd display for HMI and industrial automations. 8~32 inch lcd and OEM are avaible. Application for Automation control, M2M, Heavy Manufacturing Equipment,CNC, machine tool,HMI, Kiosk etc.
15.6" wide Full HD LCD Panel support 1920 x 1080 pixels, 400 cd/m2 brightness
6mm Aluminum bezel panel with touch screen/strengthen glass
Flat, sealed and modularized design
Direct VGA, HDMI input interfaces
OSD control keys to optimize the display (Optional)
Power adapter with AC 100 V ~ 240 V input and DC +12 V output
Optional 9 ~ 36 VDC power input
NEMA4 / IP 65 compliant front panel
Supports panel, wall, desktop, rack or VESA arm mounting
Display Type 15.6" Wide Full HD LCD
Resolution 1920 x 1080
lor 16.7M
Luminance 400 cd/m2
View Angle 160°(H) , 140°(V)
Contrast Ratio 700:1
Response Time 8 ms
Backlight Life 50,000hrs
RGB Signal D-SUB 15P Connector (female)
DC input 2-Pin Terminal Block
HDMI Signal HDMI connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Touch screen Resistive type touch screen with USB controller
DC Power Input Wide Range 9~36v DC input
Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 9 ~ 36v input power module(optional)
Construction Heavy duty steel and aluminum front panel
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Dimensions (WxHxD) 402x 252 x 45 mm
Weight Net: 7.5kg , Gross: 9 kg
Also, We provide 8~19 inch wide screen industrial monitor with touch screen and HDMI VGA. Their model NO are: IDM-08,IDM-10,IDM-12,IDM-15,IDM-17,IDM-19, welcome to order and OEM.
