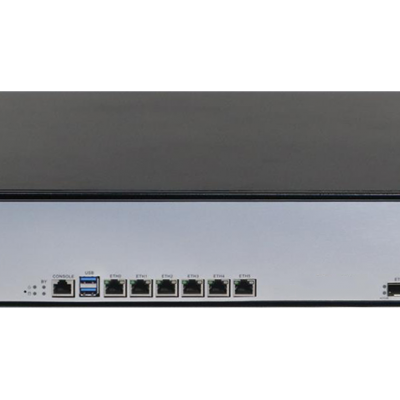

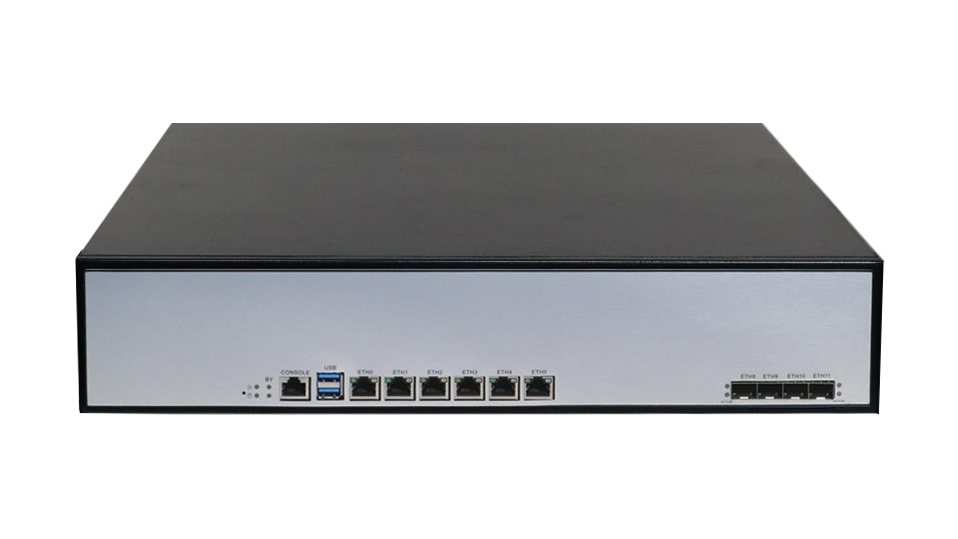

Rackmount Industrial Computer Network Appliance Hardware

F23622 is a 2U rackmount network appliance hardware wupports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four lan cards up to 14 GbE RJ45/SFP or 4x 10g SFP networking ports.

Specifications

Motherboard

CPU Supports Intel LGA1151 Socket Gen6/Gen7 Xeon E3-1200, or i3/i5/i7 Core, Pentium processor
Chipset Intel HC236
System memory Two 2133/2400MHz DDR4 slots, up to 32GB

Storage

Interface Three SATA3.0 connector and one mSATA slot
Hard Drive Supports four 3.5/2.5" HDD trays

Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel PCIe GbE controllers
BYPASS 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion Two PCIe3.0x8 for LAN cards and one PCIex4

Power supply

Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Environmental

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 500x440x88mm
Weight 17.8 kg
