Mini box pc for network applicaiton, low power consumption.

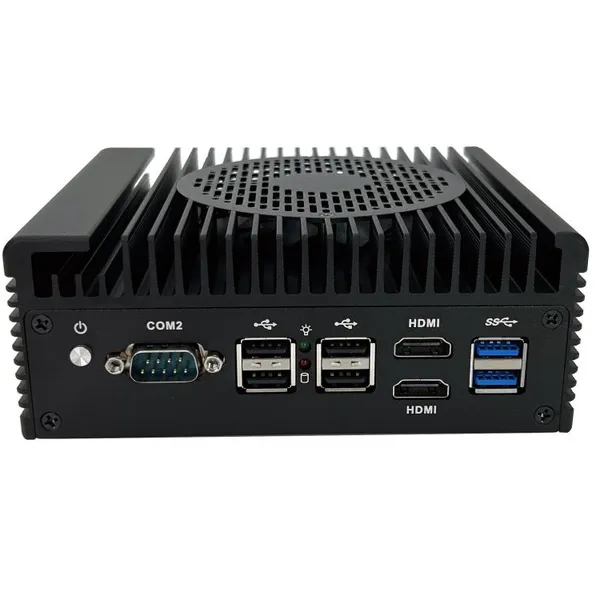

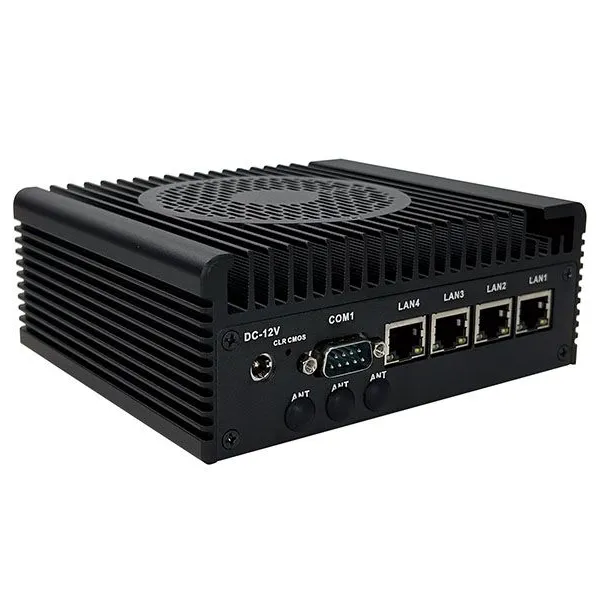

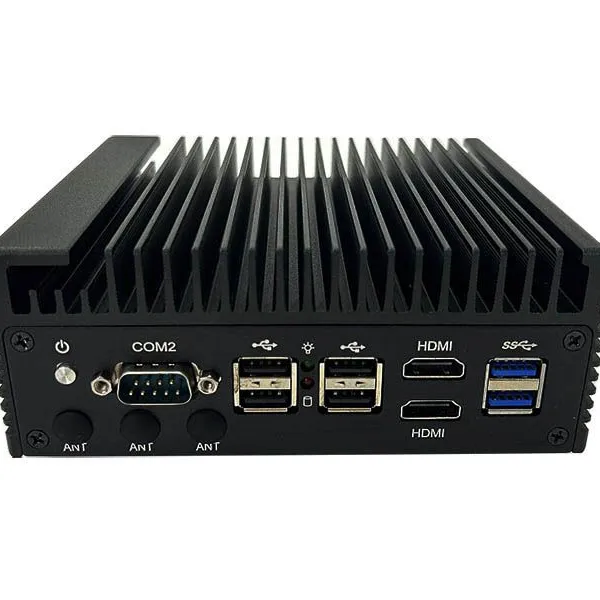

Network application Box PC with N100 CPU 4x 2.5GbE LAN 2x COM 2x HDMI
Place of Origin: China
OEM/ODM accepted
Box PC mini size solutions cover: Intel J1900, J4125, N2840, N100, i3-N305 processors.Fanless design Mini size extrusion chassis, the motherboard based on latest chip and solid e-components, industrial grade motherboard, They are durable, highly scalable, and applicable for networking, router, industrial automation, IoT, etc.
| Model NO | CPU | I/O | Datasheet |
|---|---|---|---|
| MPC-N1024 | Intel N100 | 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, 1x SIM | Datasheet (PDF) |
| MPC-N1022 | Intel N100 | 2x COM, 2x GbE LAN, 1xVGA, 1XDP, 1x HDMI,1x TypeC, 5x USB, 1x Audio | Datasheet (PDF) |
| MPC-N3024 | Intel N305 | 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB | Datasheet (PDF) |
| MPC-N3022 | Intel N305 | 2x GbE LAN, 2x COM, 1XDP, 1x HDMI,1x TypeC, 5x USB, 1x Audio | Datasheet (PDF) |
Intel® N100 (6M Cache, up to 3.40 GHz) processor
1x DDR5 4800MHz so-DIMM slot, up to 16GB
4x Intel i226 2.5G controllers
1x M.2_WIFI/4G interface, 1x mini PCIE
1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
2x COM (RS-232), COM1 can switch to RS-485 signal
2x HDMI
2x USB3.0, 4x USB2.0
TPM2.0 hardware encryption (optional)
DC 12V power supply
Supports Win10/Linux
CPU Intel N100
BIOS 64Mb Flash ROM
System memory DDR5 4800MHz so-DIMM slot, MAX 16GB RAM
SATA One SATA3 6Gb/s socket
MSATA One mSATA3 socket
CF slot None
LAN Port Four RJ-45 ports
Ethernet Controller Four Intel i226 2.5G network Controllers
Display one HDMI
USB Two USB3.0, Four USB2.0
COM Two COM(COM1 RS232,COM2 RS232/RS485)
Audio One Line out and MIC two-in-one jack
Power switch One switch with Led
Indicator One HDD Led
Expansion 1* Mini-PCIe
Power consumption DC 12-19V External power adapter
Power input 100 ~ 240V full range AC input
Operate Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing
Chassis Color Black
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 127x145x37 mm
Weight 1.5 kg
