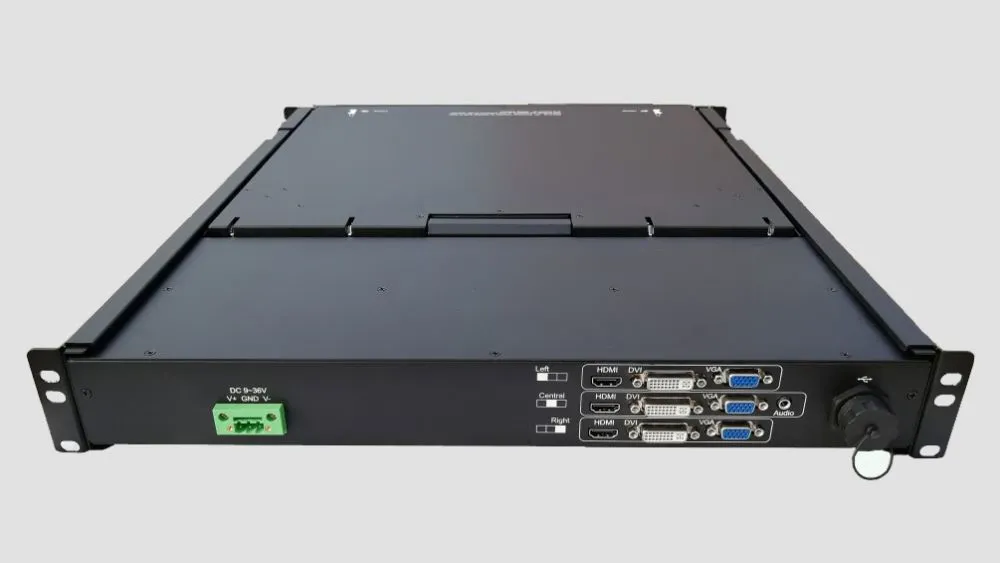

RCIM-173WX3 is a 1.5u rackmount monitor. Triple LCD Display Console Drawer Rack Mount Monitor, 3 displays screens, FHD 1920 x 1080, Multi LCD Console Drawer with Keyboard, Single rail, FHD 1920 x 1080, triple 17.3" LCD display, triple DVI & VGA interface,USB Hub.
-
Tags: Multi LCD Console Drawer,Triple Screen LCD Console Drawer,Triple LCD Display
Features
17.3" wide screen Triple LCD Display Console Drawer, 1.5u Height
1920 x 1080 Ultra high resolution
Triple DVI,HDMI & VGA Port
Front 2xUSB, Rear 1xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
104-key keyboard with touch pad mouse
USB 2.0 Keyboard & Mouse
Build in 2x 2 watts speakers
Self-locking and auto release rails
Specifications
LCD Panel
Display Type 17.3" Wide Screen LCD
Resolution 1920 x 1080
lor 262K
Luminance 300 cd/m2
View Angle 140 °(H) , 120 °(V)
Contrast Ratio 600:1
Response Time 8 ms
Backlight Life 50,000hrsSystem
Connectors 3 x DVI-D, 3 x HDMI, 3x VGA, 1 x 3.5mm Audio jack, 1 x USB for KB & Mouse
USB HUB Front x2 & Rear x 1 USB 2.0 for USB Peripheral Device
Rack Depth 600mm to 900mmrack cabinet front rails to rear rails
Power Supply 100-240V AC 50/60Hz via IEC Type power cord
DC Power (Optional) 9~36V DC inputMechanical and Environmental
Construction Heavy duty steel alloy chassis
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Dimensions (WxHxD) 450x67x 535mm
Weight Net: 17.9 kg , Gross:23 kgOrdering informations
RCIM-173WX3A Triple Screen LCD Console Drawers with 17.3" wide lcd, 100-240V AC IEC Type power cord
RCIM-173WX3D Triple Screen LCD Console Drawers with 17.3" wide lcd, 9~36V DC inputTags: 17.3 inch multi lcd console drawer, 17.3 inch triple screen lcd console drawer, 17.3 inch triple lcd display
