Help CenterFactory Lighting Street Lamp Step-down, Voltage Stabilization and Dimming Device Dsom-zm-40kva/50kva/60kva
Related Products
-
Building Lighting Energy-saving Renovation Intelligent Control System for pl - px - 416, pl - px - 816, pl - px - 1216US$ 138.46 - 153.69MOQ: 1 Unit -
L5504rvf, L5506rvf, L5512rvfp Intelligent Energy-saving Lighting Controller Sensing and Control SystemUS$ 246.15 - 253.85MOQ: 1 Unit
-
Sa/s2.16.1, Sa/s4.16.1, Sa/s12.16.1 Community Reconstruction Centralized Lighting Control SystemUS$ 153.69 - 192.31MOQ: 1 Unit
-
Intelligent Lighting Switch Modules Asf.rl.4.16a, Asf.rl.10.16a, Scenic Area Lighting Dimming PanelsUS$ 146.15 - 147.69MOQ: 1 Unit
-
Tlyzk - M4/10a Intelligent Lighting Module, Tlyzk - M8/10a, Tlyzk - M12/10aUS$ 146.15 - 161.54MOQ: 1 Unit

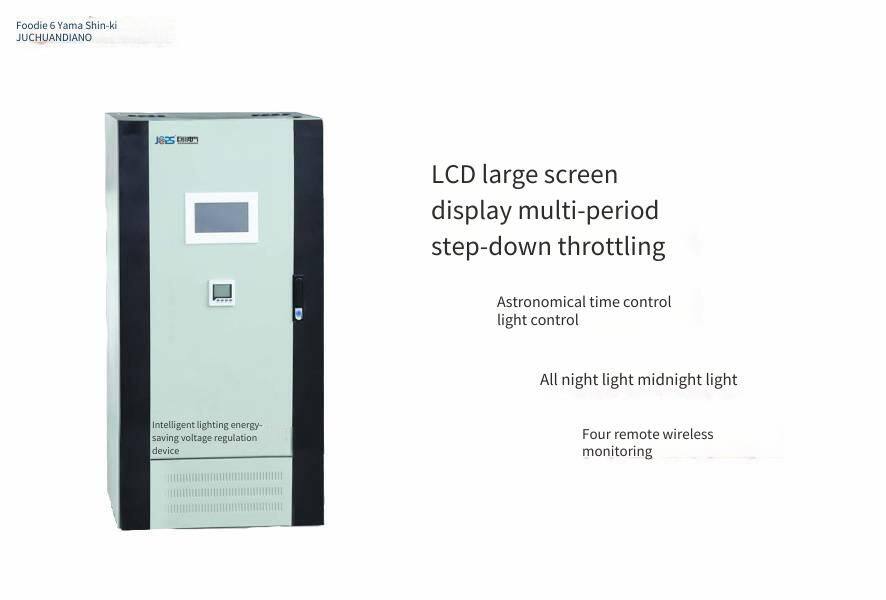

The green factory lighting street lamp step-down, voltage stabilization and dimming device DSOM-ZM-40KVA/50KVA/60KVA is equipped with overcurrent, overvoltage and undervoltage detection functions. When a device fault, input voltage exceeding the limit or output overload is detected, it automatically cuts off the control signal of the input power supply and outputs a bypass signal. The intelligent lighting control system can not only intelligently adjust the lighting voltage, but also ensure a relatively high stability of the lighting voltage, thereby further improving the power-saving rate and reliably ensuring the normal service life of the lighting equipment.
The lighting power-saving equipment should also have an automatic programming control function, which allows users to program the operating time and power supply voltage of the lighting load through the time control circuit according to the local road lighting needs, so as to minimize the power consumption and temperature of the lamps. The street lamp dynamic voltage stabilization monitoring device BEROV-0.38kv-60A uses a large Chinese color display screen, which is intuitive and clear. The voltage status and function status settings are simple. It can be set independently for three phases and achieve independent automatic adjustment for each phase. This machine can also be optionally equipped with astronomical clock longitude and latitude function, light control function and 485 communication function.
Specification summary: 10KVA, 15KVA, 20KVA, 30KVA, 40KVA, 45KVA, 50KVA, 60KVA, 80KVA, 100KVA, 120KVA, 125KVA, 150KVA, 160KVA, 180KVA, 200KVA, 250KVA, 300KVA, 315KVA, 400KVA; 20A, 30A, 40A, 45A, 50A, 60A, 63A, 80A, 100A, 120A, 125A, 150A, 160A, 170A, 180A, 190A, 200A, 250A, 300A, 315A, 400A; 10KW, 15KW, 20KW, 30KW, 40KW, 45KW, 50KW, 60KW, 80KW, 100KW, 120KW, 150KW, 160KW, 180KW, 200KW, 250KW, 300KW, 350KW, 400KW;
Technical indicators
Voltage: Three-phase AC 380V±10% (Single-phase AC220V±5%)
Current: 10 - 150A
Input: 50HZ±6%
Power-saving rate: 15 - 60% controllable
Voltage control accuracy: ±0.5V
Step-up/step-down speed: 1V/second - 1V/20 seconds
Operating temperature -40℃~65℃
Humidity requirement
Intelligent feature TPO (Time/Place/Occasion )
Monitoring function It has RTU measurement and control function. Remote measurement and control can be implemented according to user needs.
Heat dissipation Automatically control strong wind cooling.
Equipment safety guarantee Overvoltage and undervoltage protection, overcurrent protection, self - inspection protection of equipment main board and peripherals, over - temperature protection, fault bypass, and save historical data of fault codes.
Lighting load types HID lamps, fluorescent lamps, energy - saving lamps, incandescent lamps, neon lamps and other lighting fixtures.
Whether from the aspects of functionality, decoration or energy - saving, intelligent lighting is constantly developing and progressing. It meets people's various needs and brings greater convenience to our lives. The intelligent development trends of LED lighting fixtures are as follows: (1) Manual control; (2) Dimming control; (3) Semi - automatic control; (4) Automatic control;
Instruction manual for the correct use of power voltage regulation and stabilization device:
1. Before use, check whether the power voltage regulation and stabilization device is damaged. Mainly check the shell, ammeter, switch, indicator light, button, wiring terminal, etc. It can be used normally only after confirming that there is no damage;
2. Plug the input end of the power voltage regulation and stabilization device into the power strip, and install a fuse that meets the equipment power to ensure electrical safety;
3. Connect the power supply of the lighting equipment to the output end of the device. Remember to check the applicable voltage of the electrical appliance clearly and never connect it incorrectly;
4. Turn on the power switch of the power voltage regulation and stabilization device. When the working indicator light and the delay indicator light are on, observe whether the indicator light is correctly indicating the approximate output voltage. Then turn on the power switch of the lighting equipment, indicating that this power voltage regulation and stabilization device can automatically adjust the voltage and can be used for normal power supply.
6. For the fans and pumps in the boiler room, the power - saving effect of selecting the -F series fan and pump power - saver is 25 - 60%. After the transformation according to the above scheme, the overall power consumption can be reduced by 15% - 30%.
Functional indicators of the green factory lighting street lamp voltage reduction, stabilization and dimming device DSOM - ZM - 40KVA/50KVA/60KVA:
Microprocessor storage program: The program stored in the microprocessor can control all operations of the device, detect the output voltage, bypass and operation status of the PL series intelligent lighting control device, transmit the instructions required for correcting the voltage, and realize the conversion between the nominal voltage and the power - saving voltage through external control.
The upper limit of the power-saving cabinet is set to 50Hz, and the lower limit is 30Hz (subject to on-site conditions). During automatic control, follow the control curve in Figure 1 and combine with *'s intelligent fuzzy control technology.
Current limiting characteristics;
The output voltage (power or power-saving rate) can be continuously adjusted, which is different from the common power savers that use autotransformers for segmented adjustment. The output voltage of power savers with autotransformer segmented adjustment has sudden changes, which may easily cause malfunctions in electrical equipment.
Throughout the entire startup process, the output voltage remains within the pre-set fixed range.
