1. Overview

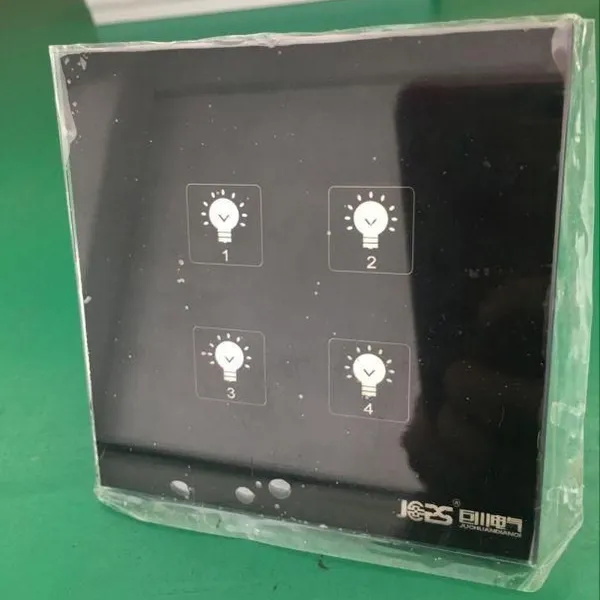

The intelligent lighting control module panel of Juchuan Electrical includes types such as 4-key, 6-key, 8-key, and 12-key. It uses E-BUS bus communication method, comes with scene control, and is suitable for use with intelligent switch modules and intelligent dimming modules. It has remote programming and management functions. The intelligent lighting control module is a high-performance product developed based on microprocessors and advanced modern power electronics technology. It can monitor and operate lighting electric controls, improve the load and faults of lighting electric controls, reduce maintenance costs, and reduce the maintenance workload of staff. It is simple to operate and powerful in function.
2. Functional features
Multiple key modes: single on, single off, single on/off, short press/long press, etc.
Multiple key control types: scene, single or multiple circuit adjustment, etc.
It has remote programming and management functions.
Each key has red and blue indicator lights.
It can reflect the status of the corresponding circuit in real-time.
It uses 485 bus communication.
It is installed in an 86-type concealed box.
* Time control function * Manual function * Automatic function * Fire control function * Light control function * Remote wired control
3. Main technical parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of keys: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: -40℃~+55℃
Storage relative humidity: 10%~93
5. External dimensions: 86mm×86mm×35mm
6. Weight: 0.3kg
Intelligent lighting control module connection system
No gateway or server host is required. No technical guidance is needed for installation, and networking is very simple.
The computer does not require high configuration. It supports the 32-bit WIN 7 system and the Android system of mobile phones.
For the intelligent lighting control module Y-BUS system, no signal amplifier is needed within a wired communication distance of 5 kilometers.
Intelligent lighting control module for building electrical control operation:
The terminal of the building intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the circuits of the whole building in the monitoring room without having to go to the site for inspection and on - site operation. They can operate and check whether the lighting is on/off just at the monitoring terminal.

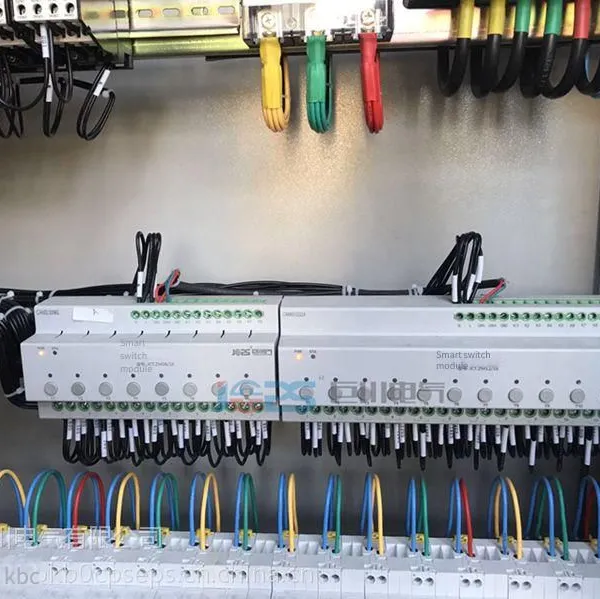

Installation method:
1. Install on the rail. The 4 - channel intelligent lighting module is equivalent to a 4 - position switch, the 6 - channel intelligent control module is equivalent to a 6 - position switch, and the 8 - position intelligent lighting control module is equivalent to an 8 - position switch.
2. The module wiring is very convenient with direct in - and - out.
3. Only one Yili bus is needed for the bus, reducing wiring errors.
4. The wiring terminals are large and can pass 25 - square wires.

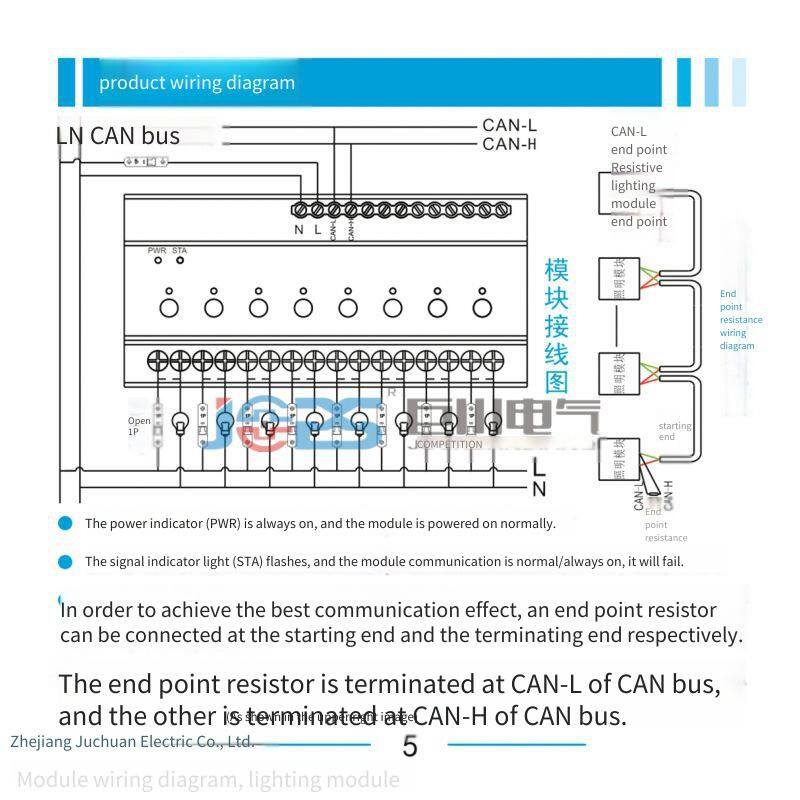

Wiring demonstration:
1. The switch is a Chint switch. The 16A switch is directly connected to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. The bus and the modules are directly connected in series and then connected to the computer.
Scope of application of the intelligent lighting module:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control center (MCC), especially the power distribution control and protection system in intelligent electrical control systems or those requiring a rated operating breaking capacity Ics of up to 80KA;
Single - motor control and protection system;
Power distribution center
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote - controlled lighting system.
Hospitals
Information processing centers (banks, municipal governments, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping centers, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger centers, etc.)
Highway lighting or ventilation systems
Resident control and protection systems (such as border posts, radar stations)
Fire protection systems
