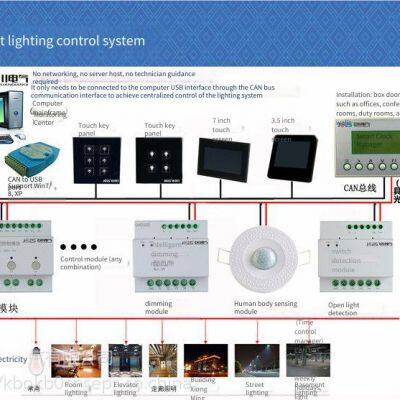

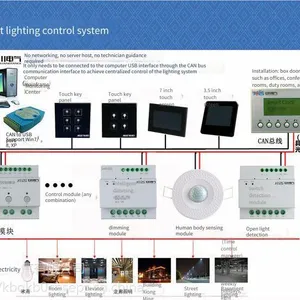

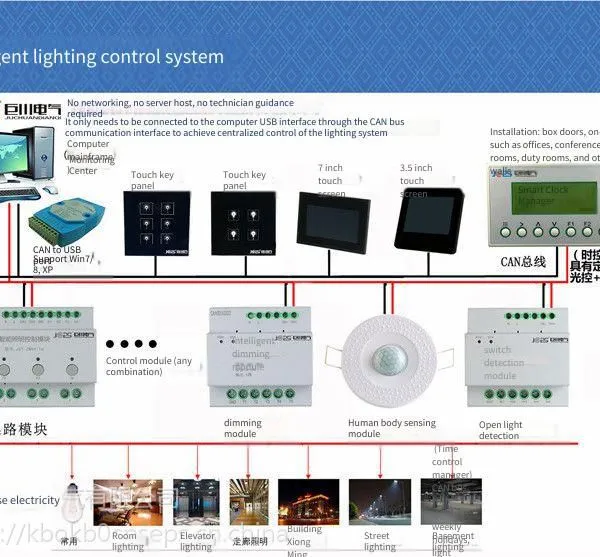

The dimming control panel ASF.RL.6.10A of the ASF.RL.4.10A building lighting sensing and control system module is generally composed of three parts: signal input, control unit, and system host. Signal input converts external control signals into system signals, including various control panels or touch screens, intelligent sensors, remote controls, etc.; The ASF.RL.4.10A building control unit executes system commands to achieve lighting control, including various control modules, dimming modules, etc.; The system host includes monitoring software and communication interfaces, etc.
Basic parameters of ASF.RL.4.10A
Operating voltage: 24VDC±10%
Operating current: Static current: 15mA
Dynamic current: 40mA
Operating environment: Temperature: 0℃~45℃, Humidity: 0~95%
Communication interface: CAN bus, 4-pin 5.08 pluggable terminal
Load interface: Relay output, 4*2-pin 7.62 wiring terminal, Wiring capacity: 4mm2
Output current: 8A
Installation method: 35mm standard rail installation (6 modules)
Functional features
Customizable travel time
Delay start and shutdown function
Can be connected to high-voltage motors and low-voltage motors
Relay interlock function
The service life of the module relay is more than 100,000 times
Utility of the intelligent lighting system:
1. Energy saving of lighting control equipment
The dimming control panel ASF.RL.6.10A of the ASF.RL.4.10A building lighting sensing and control system module can also improve the working efficiency of the lighting system well by using appropriate lighting control equipment. For example, by using infrared motion detection technology and constant illumination lighting technology, when there are people in the lighting environment and lighting is needed, the lighting source is turned on through the lighting control system. On the contrary, if there is no one in the lighting environment and lighting is not needed, the lighting source is turned off. Another example is that when the outdoor natural light is strong, the luminous intensity of the indoor lighting electric light source can be appropriately reduced, and when the outdoor natural light source is weak, the luminous intensity of the indoor lighting electric light source can be appropriately increased, so as to achieve constant illumination lighting in the lighting environment and achieve the effect of lighting energy saving.
2. Creating a good lighting environment
People's requirements for the lighting environment are closely related to the activities they engage in, so as to meet the requirements of different functions, which are specifically reflected as follows.
The lighting space can be divided by controlling the lighting environment. When the lighting room and partitions change, the lighting environment can be flexibly changed through corresponding control.
Different atmospheres can be created in the same room by using control methods, which can have a positive impact on people physically and psychologically through different visual experiences.
3. Automatic control of lighting
The system is characterized by scene control. In the same room, there can be multiple lighting circuits. Adjusting the brightness of each circuit to achieve a certain lighting atmosphere is called a scene. Different scenes (creating different lighting environments) can be preset, and the fade - in and fade - out time when switching scenes makes the lighting change gently. Clock control uses a clock controller to make the lighting change according to the daily sunrise and sunset or follow a time - based pattern. Various sensors and remote controls are used to achieve automatic control of the lighting.
4. Beautify the environment
Indoor lighting uses scene changes to enhance the environmental art effect, creating a sense of three - dimensionality and hierarchy, and creating a comfortable environment, which is beneficial to people's physical and mental health and improves work efficiency.
5. Extend the lifespan of lamps
The main factors affecting the lifespan of lamps are over - voltage use and cold - state shock, which greatly reduce the lifespan of lamps. The LT series intelligent dimmer has an output voltage limit protection function: that is, when the grid voltage exceeds the rated voltage of 220V, the dimmer automatically adjusts the output to be within 220V. When a light bulb is powered on in the cold state, an inrush current 5 - 10 times the rated current will be generated, which greatly affects the lifespan of the lamp. The intelligent dimming control system uses slow - start and fade - in/fade - out dimming control to avoid cold - state shock to the lamps and extend their lifespan. The system can extend the lifespan of bulbs by 2 - 4 times, save a large number of bulbs, and reduce the workload of replacing bulbs.
Installation method:
1. Install on the rail. The 4 - channel intelligent lighting module is equivalent to a 4 - position switch, the 6 - channel intelligent control module is equivalent to a 6 - position switch, and the 8 - position intelligent lighting control module is equivalent to an 8 - position switch.
2. The module wiring is very convenient with direct in - and - out connections.
3. Only one Yili bus is needed, reducing wiring errors.
4. The terminal block is large enough to accommodate 25 - square - millimeter wires.
Wiring demonstration:
1. The switch is a Chint switch. A 16A switch is directly connected to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. The bus and the modules are directly connected in series and then connected to the computer.
