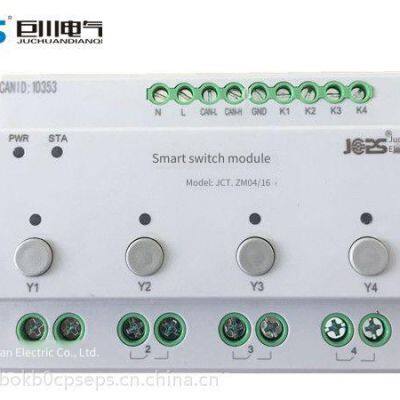

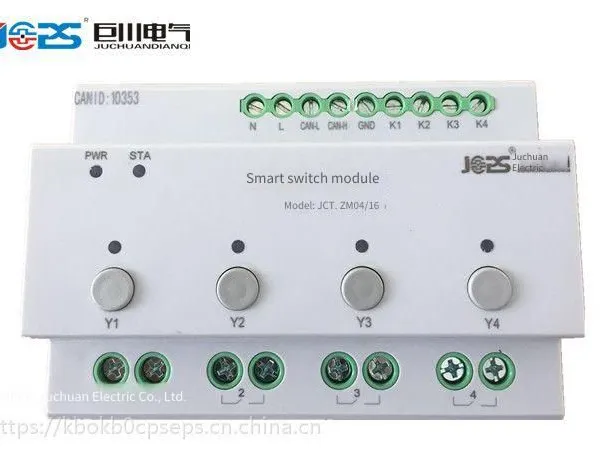

Switch drive moduleIt contains a power module and a clock, and can be synchronized via network clock. Juchuan Electrical 0577-27877837, Quotation QQ421563834. Each load20A, Each circuit can be manually switched locally. Each area can store128 scenarios. Each circuit can be set with four time periods. The status is fed back to the monitoring part. The scenario has the network opening function, and the control voltage is the safety voltageDC5V.
Two.
BCX-H416 BCX-H816 BCX-H1216 Park lighting energy-saving intelligent switch drive module remains off when powered on again after power failure.
2, Remote control and remote centralized control function
The "switch controller" and "dimming controller" can be remotely controlled (remotely) through control terminals such as a remote controller (or a centralized host). The relevant operation results are fed back to the control terminal device.
3, Scenario control function
It can be used in conjunction with the control terminal in theHOUNEN smart home system, and can be freely combined to complete different scenario modes.
4, Query function
The real-time status of the "switch controller and dimming controller" can be queried through relevant terminal control devices.
5, Dimming function (only for dimming controller)
The "dimming controller" can manually adjust the brightness of the connected lights, and can also be achieved through remote control operations. The brightness value after dimming can be memorized. When the lights are turned on next time, the brightness value after the last dimming is saved.
Commonly applied occasions: Civilian residences, landscape lighting, gardens, underground garages, distribution warehouses, office buildings (corridors, public areas), schools (corridors, dormitories, internship workshops), stadiums, amusement parks, hospitals (corridors, wards, office areas).
3. Main technical parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of buttons: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: -40℃~+55℃
Storage relative humidity: 10%~93
Advantages:
Improve lighting quality
Good lighting quality is a necessary condition for improving work and learning efficiency.

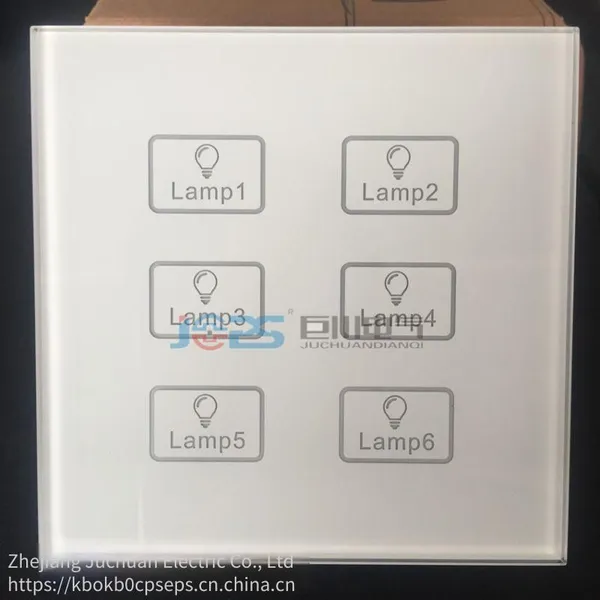

The intelligent lighting control system uses a dimming module control panel to replace the traditional flat switch to control the lamps, which can effectively control the overall illuminance value in each room, thereby improving the illuminance uniformity. At the same time, the electrical components used in this control method also solve the stroboscopic effect, and will not make people feel dizzy and eye - tired.
Realize a variety of lighting effects
In modern buildings, lighting is not simply to meet the visual light - dark effect of people. It should also have a variety of control schemes to make the lighting of the building more artistic and allow people to enjoy the magnificent visual effects. If the exhibition halls, lecture halls, lobbies, atriums, etc. inside the building and the external outlines are equipped with an intelligent lighting control system, and the corresponding preset scenes are used for control according to different times, different uses, and different effects, rich artistic effects can be achieved.
Convenient management and maintenance
The control of lighting by the intelligent lighting control system is mainly based on modular automatic control, supplemented by manual control. The parameters of the lighting preset scenes are digitally stored in the EPROM. The setting and replacement of this information are very convenient. Coupled with the greatly improved service life of the lamps, lighting management and equipment maintenance become simpler.
High economic return
According to expert calculations, only from the two aspects of power saving and lamp saving: in three to five years, the owner can basically recover all the additional costs of the intelligent lighting control system. And the intelligent lighting control system can improve the lighting environment, improve the work efficiency of employees, and reduce maintenance and management costs, etc., which also saves a considerable amount of money for the owner. BCX - H416 BCX - H816 BCX - H1216
BCX-H416 BCX-H816 BCX-H1216 Installation method of the intelligent switch drive module for park lighting power saving:
1. Install on the rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-channel intelligent lighting control module is equivalent to an 8-position switch.
2. The wiring of the module is very convenient with direct in and out.
3. Only one bus line is needed, which reduces wiring errors.
4. The wiring terminals are large and can pass 25-square wires.

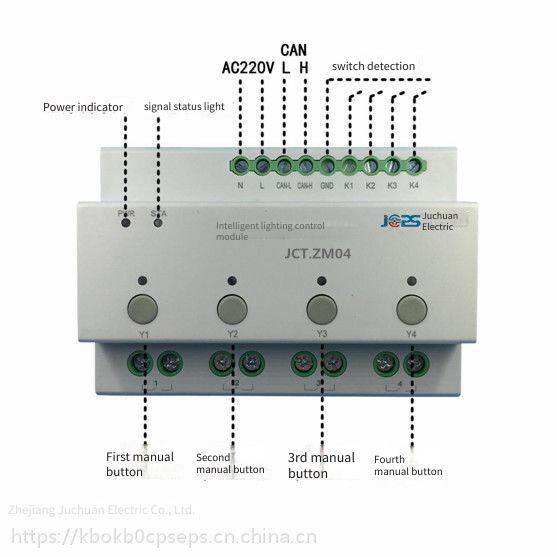

Wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. Connect the bus, the modules in series, and then connect them to the computer.
