1. Overview
Under the condition of ensuring the normal operation of the lamps, the system outputs a certain lighting power to the lamps. This can not only reduce the lighting glare caused by over - voltage, make the light emitted by the lamps softer and the lighting distribution more uniform, but also save a large amount of electric energy. The power - saving rate of the intelligent lighting control system can reach 20% - 40%. The intelligent lighting control system can be used in lighting and mixed circuits, with strong adaptability. It can work continuously and stably in various harsh power grid environments and complex load conditions. At the same time, it will effectively extend the service life of the lamps and reduce the maintenance cost. Juchuan Electrical O577 - 27877837.

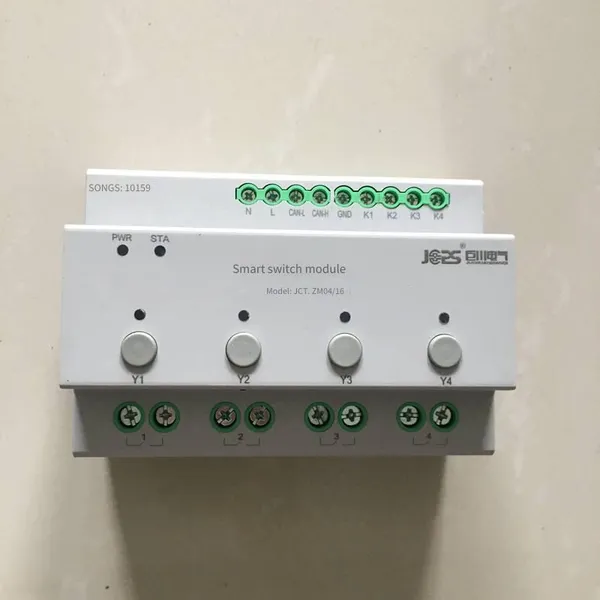

Installation and debugging of TLYZK - M4/10A intelligent lighting module, TLYZK - M8/10A, TLYZK - M12/10A:
Drill holes in the load - bearing wall to install screws, and then fix the power dimmer on the wall.
Connect each input, output terminal and 485 bus terminal according to the wiring diagram.
The power supply at the input end adopts single - phase power supply. The single - phase power supply incoming line is connected to the two - pole air switch at the same time, and each individual circuit is connected to the output load.
The brightness can be output through the bus command.
There is a bypass switch at the upper end of the junction box. It is in the bypass state when leaving the factory, and the output is in the non - dimming direct - through state. When the dimmer fails or in an emergency, the bypass switch can be closed. When working normally, open the bypass switch.
In use, in an emergency, the lights can be manually switched on/off or dimmed by pressing the 4 buttons on the end cover for a long time.
Press and hold to enter the manual state for cyclic dimming. Release the button, and the light brightness will stop at the current value.
In the manual state, it does not receive the bus.
Short - press or power off and then power on to exit the manual state and enter the automatic state of receiving the bus.
Turn off the air switch to completely cut off the load power supply.
Performance characteristics:
1. The system can control the continuous dimming or switching of any circuit.
2. Scene control: Multiple different scenes can be preset, and there will be a fade - in and fade - out effect when switching scenes.
3. Various sensors can be connected to automatically control the lights.
4. Motion sensor: Detect human infrared rays to control the lights; for example, the light turns on when someone comes and turns off (dim) when someone leaves.
5. Light illuminance sensor: In some occasions, the indoor light can be adjusted according to the intensity of the outdoor light, such as the constant illuminance control in school classrooms.
6. Time control: In some occasions, the brightness can be adjusted according to the working hours.
7. Infrared remote control: A hand - held infrared remote control can be used to control the lights.
8. System networking: The system can be networked, and comprehensive control can be carried out using the above - mentioned control means or networked with the building intelligent control system.
3. Main technical parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of buttons: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: -40℃~+55℃
Storage relative humidity: 10%~93
Installation method:
1. Install on the rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-position intelligent lighting control module is equivalent to an 8-position switch.
2. The module wiring is very convenient with direct input and output.
3. Only one Yili bus is needed, which reduces wiring errors.
4. The wiring terminals are large and can pass 25-square wires.

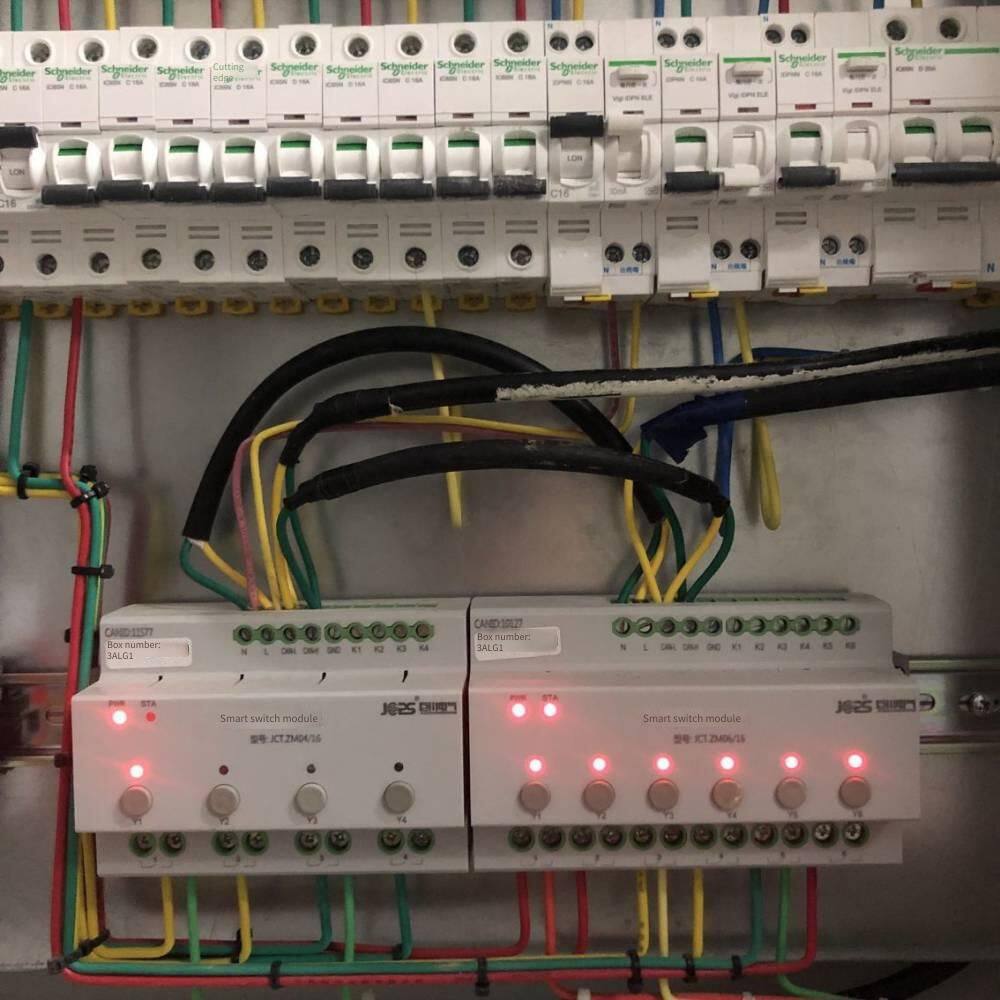

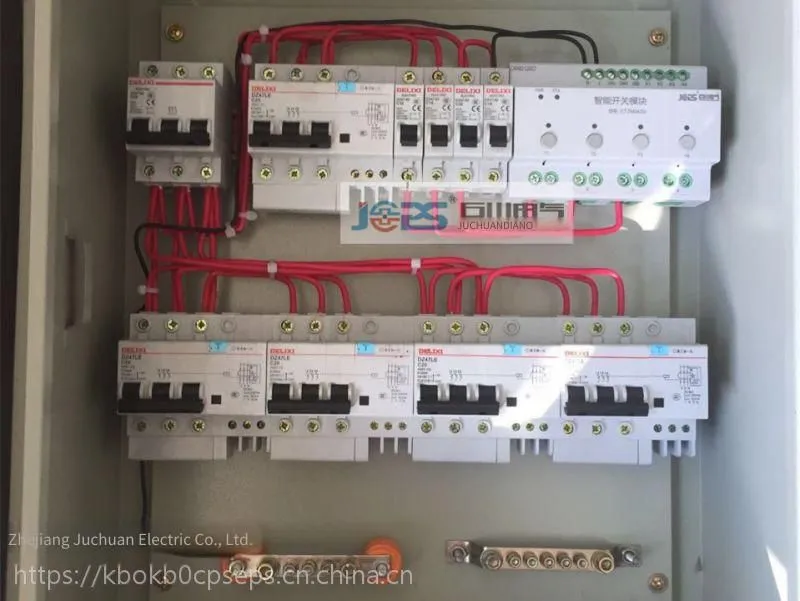

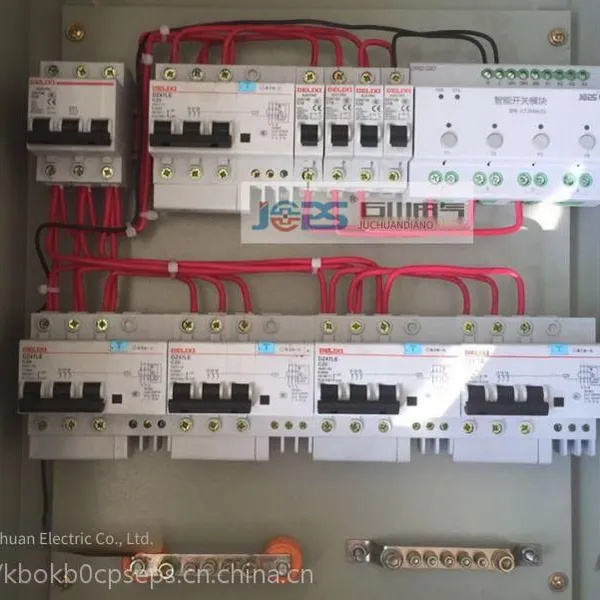

Wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the module input terminal, and the input terminal is directly connected to the lamp.
2. Connect the bus and the modules in series, and then connect them to the computer.
Scope of application of the intelligent lighting module:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control center (MCC), especially the power distribution control and protection system for intelligent electric control systems or those requiring a rated operating breaking capacity Ics of up to 80KA;
Single motor control and protection system;
Power distribution center
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote control lighting system.
Hospitals
Information processing centers (banks, municipalities, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping malls, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger terminals, etc.)
Highway lighting or ventilation systems
Military base control and protection systems (such as border posts, radar stations)
Fire protection systems.
