1. Overview
The central monitoring software of DDRC420FR and DDRC820FR intelligent parking lot lighting switch drivers is a switch input and switch output module. It comes with a built - in relay and does not require system power. For Juchuan Electrical, the contact number is 0577 - 27877837, and the QQ for quotation is 421563834. DDRC420, without the need for a gateway or a centralized controller, can achieve network - mode control; it supports the mode configuration function, allowing users to freely configure any mode in advance, and different modes can be matched for any date and festival throughout the year. It can automatically control according to the configured plan. The controller is responsible for receiving and processing the signals transmitted by sensors, such as turning lights on/off and adjusting the brightness of lights. The system components are mainly responsible for building the system platform, such as system power supply, line couplers, transmission media, etc. Combined with local bypass switches and lighting circuit status indicators, debugging is simple and convenient. Both the lighting power input and the output of each circuit are equipped with short - circuit and overload protection circuit breakers, as well as grounding protection. It uses a three - terminal bidirectional thyristor switching element and meets the lighting dimming requirements through efficient leading - edge phase - control dimming technology. It is suitable for lighting equipment such as incandescent lamps, electronic low - voltage lamps, and cold cathode tubes.
Technical parameters of DDRC420FR:
Power supply: The operating voltage is DC 21~30V, powered from the bus
Operating current:
Standby power consumption:
Operation indication: The red LED indicator and buttons are used to assign physical addresses; the green LED blinking indicates that the device is working properly
Channel output: 12 channels
Rated current: AC 250VAC (50/60Hz) 16A
Temperature range: Operating temperature (-5°C~45°C), storage temperature (-25°C~55°C), transportation temperature (-25°C~70°C)
2. Functional Features
Multiple key modes: Single - on, single - off, single - on/off, short - press/long - press, etc.
Multiple key control types: Scene, single/multiple circuit adjustment, etc.
It has remote programming and management functions.
Each key has red and blue indicator lights.
It can reflect the status of the corresponding circuit in real - time.
It uses the 485 bus for communication.
It is installed in an 86 - type concealed box.
* Time - control function * Manual function * Automatic function * Fire - control function * Light - control function * Remote wired control
Connection system of the intelligent lighting control module
No gateway or server host is required, and no technical guidance is needed for installation. Networking is very simple.
The computer does not need a high - end configuration. It supports the 32 - bit WIN 7 system and the Android system of mobile phones.
For the intelligent lighting control module Y - BUS system, there is no need to install a signal amplifier within a wired communication distance of 5 kilometers.
Intelligent lighting control module for building electrical control operations:
The terminal of the building's intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the circuits of the entire building in the monitoring room. There is no need to personally go to the site for inspection and on - site operation. They can operate and check whether the lighting is on/off just at the monitoring terminal. Quotation list for Zhejiang Juchuan DDRC420FR and DDRC820FR intelligent lighting switch modules
Installation method of the central monitoring software for DDRC420FR and DDRC820FR parking lot intelligent lighting switch drivers:
1. Install on the rail. The 4 - channel intelligent lighting module is equivalent to a 4 - position switch, the 6 - channel intelligent control module is equivalent to a 6 - position switch, and the 8 - position intelligent lighting control module is equivalent to an 8 - position switch.
2. The module wiring is very convenient with direct in - and - out connection.
3. Only one wire is needed for the bus, reducing wiring errors.
4. The wiring terminals are large and can pass 25 - square wires.

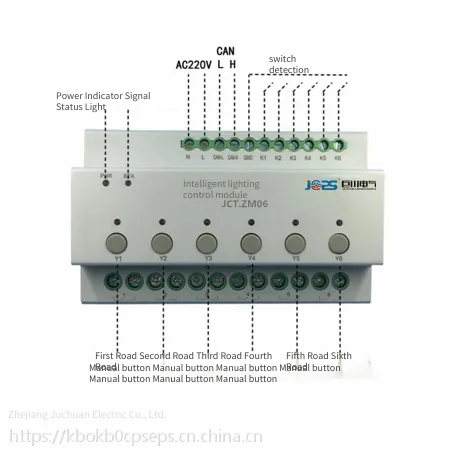

Wiring demonstration:
1. The switch is a Chint switch. A 16A switch is directly connected to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. The bus and the modules are directly connected in series and then connected to the computer.
Scope of application of the parking lot intelligent lighting switch driver:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control centers (MCC), especially power distribution control and protection systems in intelligent electrical control systems or those requiring a rated operating breaking capacity Ics of up to 80KA;
Single - motor control and protection systems;
Power distribution centers
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote - controlled lighting systems.
Hospitals
Information processing centers (banks, municipalities, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping centers, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger terminals, etc.)
Highway lighting or ventilation systems
Military garrison control and protection systems (such as border posts, radar stations)
Fire protection systems.
