1. Overview
The switch control module includes types such as 2-key, 4-key, 6-key, 8-key, and 12-key. It uses the E-BUS bus communication method and comes with scene control. It is suitable for use in conjunction with intelligent switch modules and intelligent dimming modules, and has remote programming and management functions. The intelligent lighting control module is a high-performance product developed based on microprocessors and advanced modern power electronics technology. It can monitor and operate lighting electrical controls, improve the load and faults of lighting electrical controls, reduce maintenance costs, and decrease the maintenance workload of staff. It is simple to operate and powerful in function.
AT/S6.6.1 AT/S8.10.1 Switch Control Module, Logic Light Sensor, Features of Smart Application Scenarios
Multiple key modes: Single on, single off, single on/off, short press/long press, etc.
Multiple key control types: Scene, single/multiple circuit adjustment, etc.
Has remote programming and management functions
Each key has red and blue indicator lights
Real-time reflection of the status of the corresponding circuit
Uses 485 bus communication
Installed in an 86-type concealed box
* Time control function * Manual function * Automatic function * Fire protection function * Light control function * Remote wired control
3. Main Technical Parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of keys: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: -40℃~+55℃
Storage relative humidity: 10%~93
Connection System of Intelligent Lighting Control Module
No gateway or server host is required. Installation does not require the guidance of technicians, and network configuration is very simple.
The computer does not require high configuration. It supports the 32-bit WIN 7 system and the Android system on mobile phones.
For the Y-BUS system of the intelligent lighting control module, a signal amplifier is not required within a wired communication distance of 5 kilometers.
AT/S6.6.1 AT/S8.10.1 Switch Control Module, Logic Light Sensor, Smart Application Scenarios for Building Electrical Control Operations:
The terminal of the building intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the entire building's circuits in the monitoring room without having to go to the site for inspection and on-site operation. They can operate and check whether the lighting is on/off at the monitoring terminal.

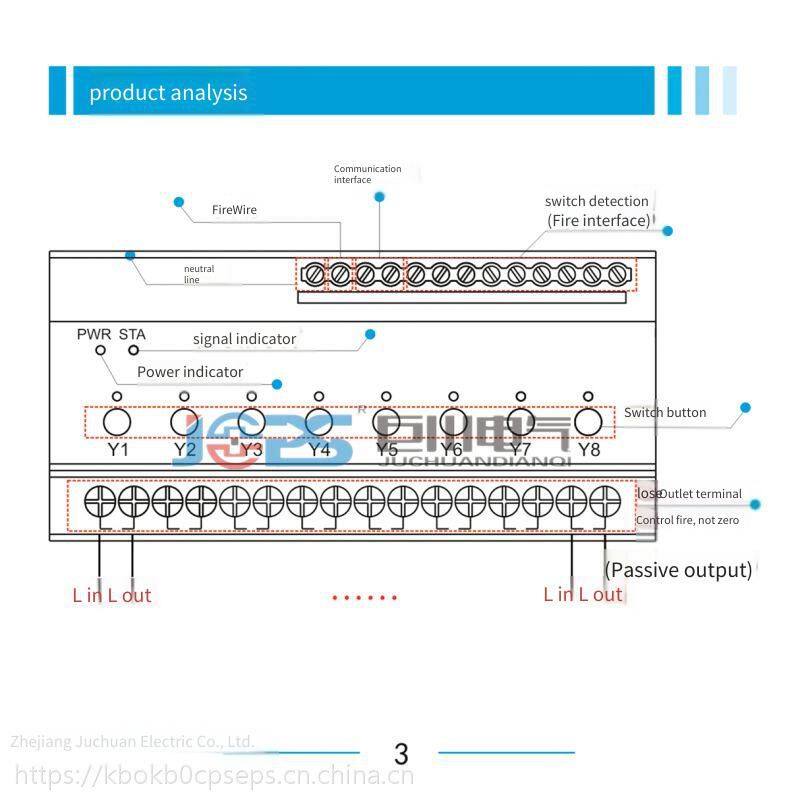

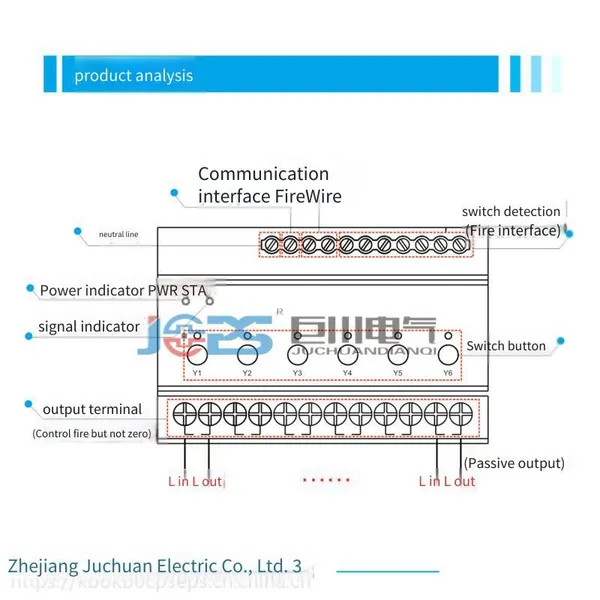

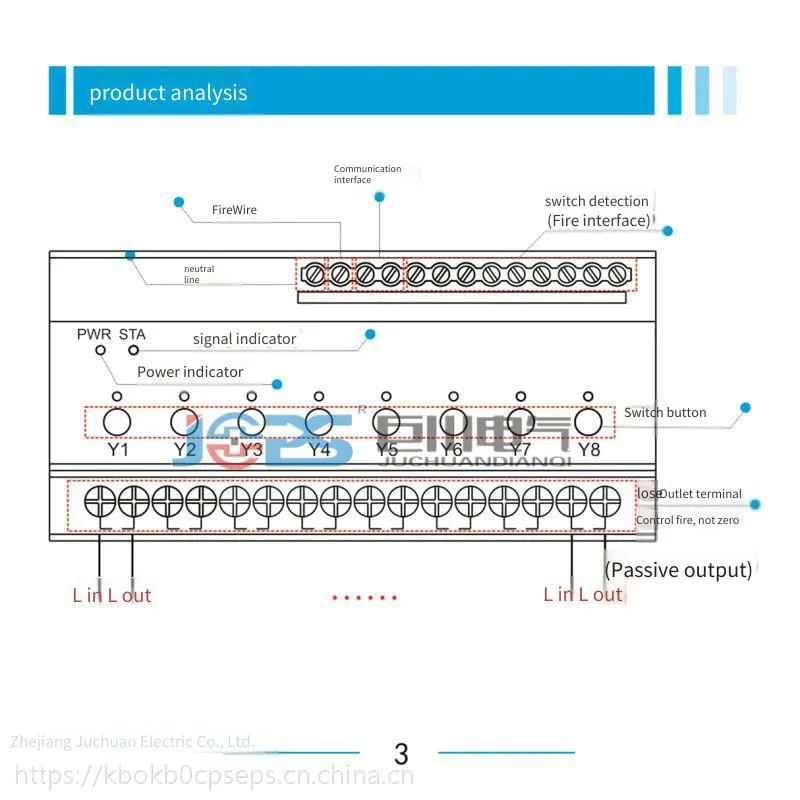

Installation method:
1. Install on the guide rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-position intelligent lighting control module is equivalent to an 8-position switch.
2. The module wiring is very convenient with direct in and out.
3. The Yili bus can be used with just one line, reducing wiring errors.
4. The wiring terminals are large and can accommodate 25-square wires.
Wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. Connect the bus and the modules in series, and then connect them to the computer.

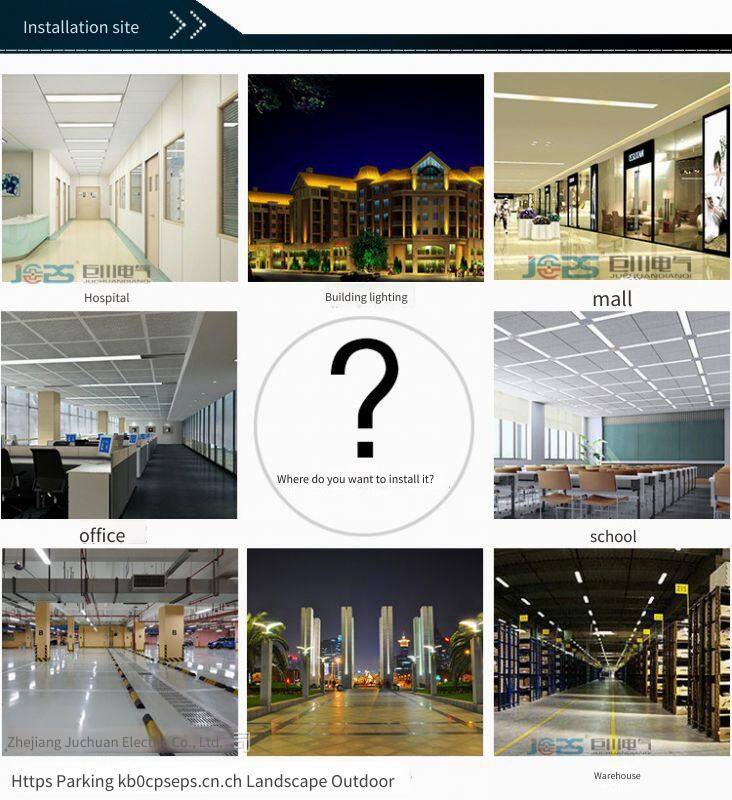

AT/S6.6.1, AT/S8.10.1 switch control moduleScope of application of the intelligent lighting module:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control center (MCC), especially the power distribution control and protection system with a rated operating breaking capacity Ics of up to 80KA in intelligent electrical control systems;
Single motor control and protection system;
Power distribution center
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote control lighting system.
Hospitals
Information processing centers (banks, municipalities, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping centers, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger terminals, etc.)
Highway lighting or ventilation systems
Military garrison control and protection systems (such as border posts, radar stations)
Fire protection systems.
