1. Overview
SA/S2.16.1 SA/S4.16.1 SA/S12.16.1 The centralized lighting control system for community renovation has optional loops of 4, 6, 8, and 12 routes, which is suitable for the on - off control of incandescent and fluorescent lamp circuits. Zhejiang Juchuan Electrical Technology Co., Ltd. O577 - 27877837, quote QQ421563834. The bus adopts the industrial standard bus CAN, using a pair of twisted - pair wires for bidirectional data transmission, supporting two - way real - time communication. The system has no master - slave structure, and the backbone network uses the TCP/IP standard network. The network media can use communication media such as Category 5 twisted - pair wires, optical fibers, and wireless microwaves.
2. Performance Features
Each system can accommodate up to 255 sub - networks
Each sub - network can accommodate up to 255 devices
Each sub - network is connected to the Ethernet through the IP/E - BUS protocol module
Total number of network devices: 65025
The BUS baud rate can be set by software, with a default of 9600Bit/s
Distributed control system
The length of a single physical bus is 1000 meters, and a single physical bus can have 64 devicesBus arbitration mechanism
3. Technical Parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of buttons: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: - 40℃~+55℃
Storage relative humidity: 10%~93
SA/S2.16.1-SA/S4.16.1-SA/S10.16.1 Connection System
No gateway or server host is required. No technical guidance is needed during installation, and network setup is very simple.
No high - configuration computer is required. It supports the 32 - bit WIN 7 system and the Android system on mobile phones.
For the intelligent lighting control module Y - BUS system, no signal amplifier is needed within a wired communication distance of 5 kilometers.
Operation of the building's electrical control by the intelligent lighting control module:
The terminal of the building's intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the entire building's circuits in the monitoring room. There is no need to go to the site for inspection and on - site operation. They can operate and check whether the lighting is on/off just at the monitoring terminal.
Installation method of the centralized lighting control system for community renovation of SA/S2.16.1 SA/S4.16.1 SA/S12.16.1:

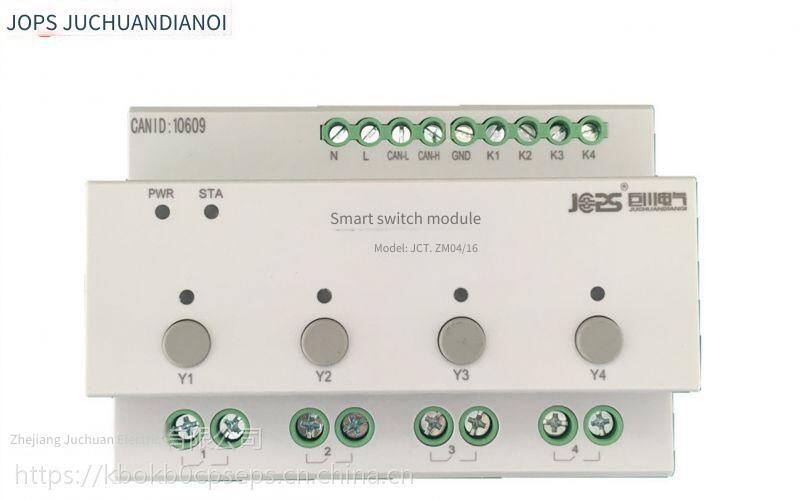

1. Install on the rail. The 4 - channel intelligent lighting module is equivalent to a 4 - position switch, the 6 - channel intelligent control module is equivalent to a 6 - position switch, and the 8 - position intelligent lighting control module is equivalent to an 8 - position switch.
2. The module wiring is very convenient with direct in - and - out connections.
3. Only one bus line is needed, reducing wiring errors.
4. The wiring terminals are large and can accommodate 25 - square wires.
Wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. Connect the bus and the modules in series, and then connect them to the computer.
Scope of application of the intelligent lighting module:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control centers (MCC), especially power distribution control and protection systems for intelligent electrical control systems or those requiring a rated operating breaking capacity Ics of up to 80KA;
Single - motor control and protection systems;
Power distribution centers
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote - controlled lighting systems.
Hospitals
Information processing centers (banks, municipalities, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping malls, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger centers, etc.)
Highway lighting or ventilation systems
Military base control and protection systems (such as border posts, radar stations)
Fire protection systems .
