1. Overview
The loads of the intelligent lighting induction control systems TLYZK-L12/16, TLYZK-L16/16, and TLYZK-L18/16 are lighting fixtures. According to the output power provided by the intelligent lighting controller, connect lighting fixtures with appropriate power. If the total power of the lighting fixtures is too large, a controller of a suitable specification needs to be replaced. The advantage of this controller is that users can use it directly, and the installation and maintenance are very convenient. It can be controlled on-site, and multiple panels can also be installed to achieve remote control and multi-location control. The lighting module has a built-in switching power supply, effectively controls temperature and current, and has strong expandability, overcoming the weakness of the transformer's anti-interference ability.
2. Control methods:
Time programming: Automatically turn on or off all loops, some loops, or scene loops according to the pre-defined time.
Local manual control:

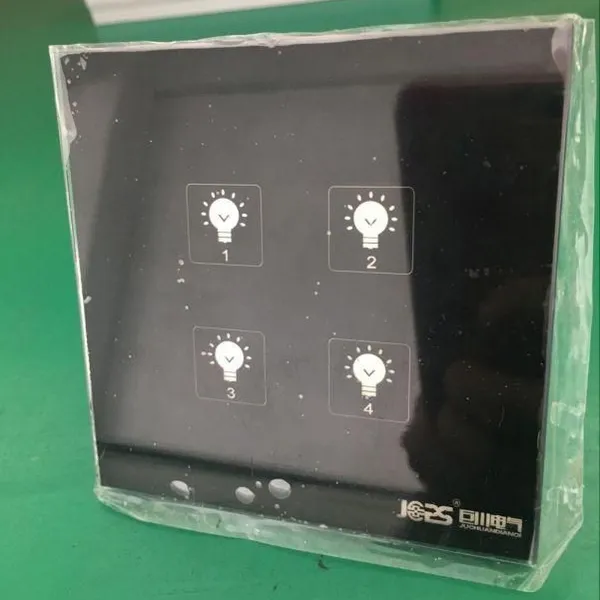

In case of special circumstances, the intelligent panel can be used to manually control the switches of each lighting loop.
Multi-location control:
Users can place touch screen panels in multiple locations. Through the connection of communication lines, multi-location control can be achieved.
Scene control:
Users can pre-set loops with the same control mode as a scene (up to 10 scenes can be set). After the setting is completed, the scene loops can be switched on and off with one key through scene selection.
Emergency handling control:
After receiving the alarm from the security and fire protection systems, all the lighting in the specified area will be automatically turned on.
External signal control:
The intelligent lighting induction control system can receive the signals from the infrared motion detector to turn on the lights when people or vehicles come and turn off the lights when they leave; it can also receive the signals from the illuminance detector. When the on-site illuminance is lower than a certain value, all the lights will be automatically turned on.
3. Main technical parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of keys: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: -40℃~+55℃
Storage relative humidity: 10%~93

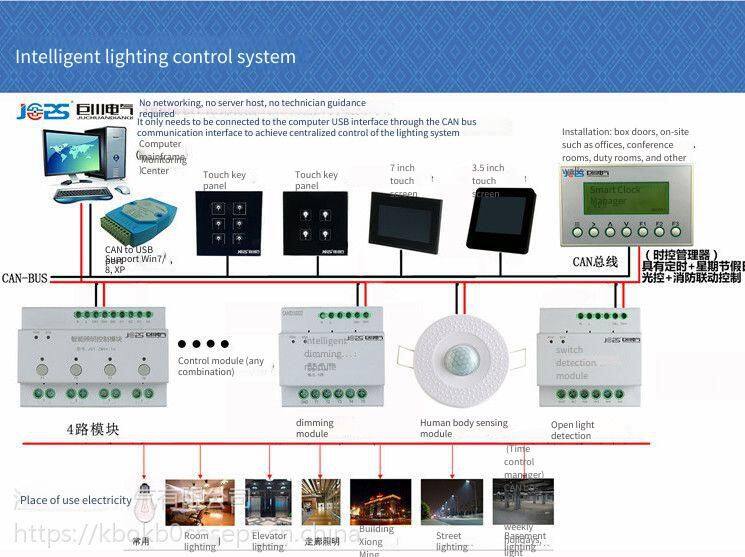

Connection system of the intelligent lighting control module
No gateway or server host is required. No technical guidance is needed for installation, and the networking is very simple.
The computer does not need high configuration. It supports the 32-bit WIN 7 system and the Android system of mobile phones.
For the intelligent lighting control module Y-BUS system, no signal amplifier is required within a wired communication distance of 5 kilometers.
Intelligent lighting control module for building electrical control operations:
The terminal of the building intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the circuits of the entire building in the monitoring room without having to go to the site for inspection and on - site operation. They can operate and check whether the lighting is on/off just at the monitoring terminal.
Installation methods of intelligent lighting induction control systems TLYZK - L12/16, TLYZK - L16/16, TLYZK - L18/16:

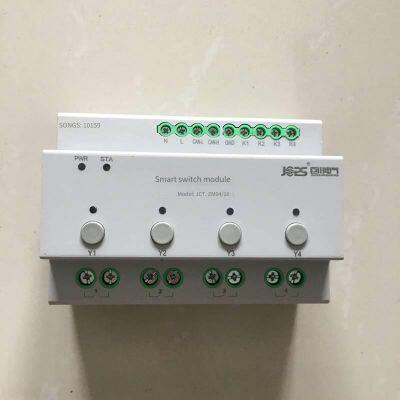

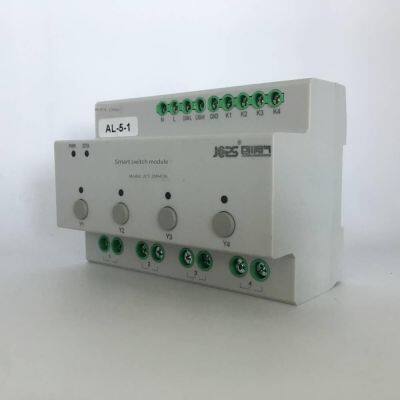

1. Install on the rail. The 4 - way intelligent lighting module is equivalent to a 4 - position switch, the 6 - way intelligent control module is equivalent to a 6 - position switch, and the 8 - position intelligent lighting control module is equivalent to an 8 - position switch.

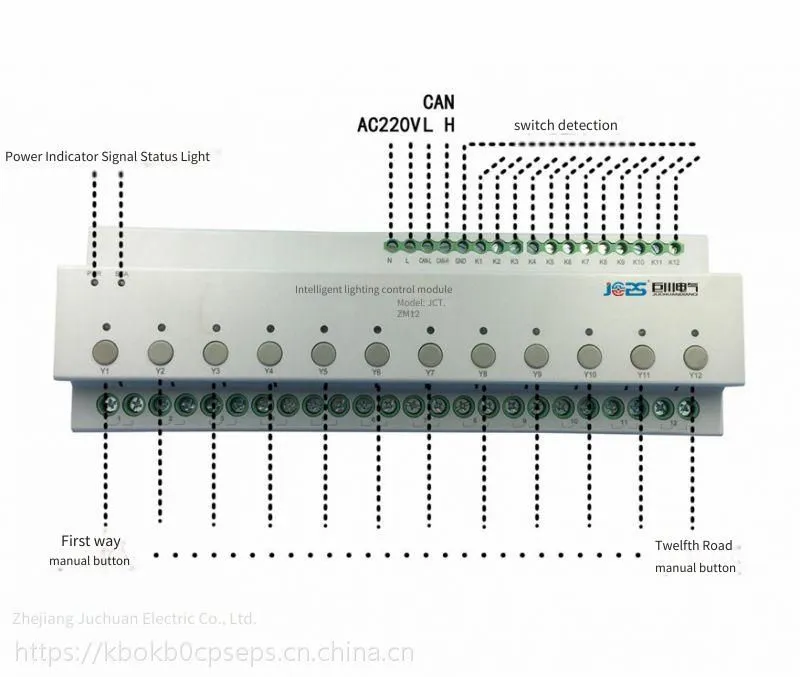

2. The module wiring is very convenient with direct input and output.
3. Only one bus line is needed, reducing wiring errors.
4. The wiring terminals are large enough to pass 25 - square - millimeter wires.

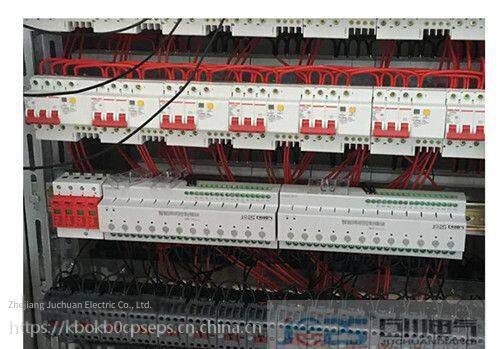

Wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the module input terminal, and the input terminal is directly connected to the lamp.
2. Connect the bus, modules, and other modules in series, and then connect them to the computer.
Scope of application of intelligent lighting modules:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control centers (MCC), especially intelligent electrical control systems or power distribution control and protection systems requiring a rated operating breaking capacity Ics of up to 80KA;
Single - motor control and protection systems;
Power distribution centers
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote - controlled lighting systems.
Hospitals
Information processing centers (banks, municipal facilities, securities trading centers, etc.)
Telecommunications equipment rooms
Commercial buildings (large shopping malls, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger centers, etc.)
Highway lighting or ventilation systems
Military control and protection systems (such as border posts, radar stations)
Fire protection systems.
