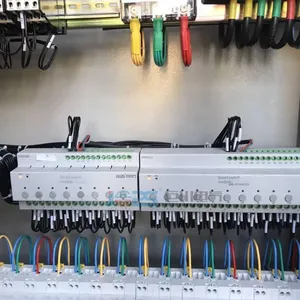

Help CenterDdbc516fr Office Intelligent Lighting Switch Driver Panel, Ddbc300 Logic Light Sensor
Related Products
-
Tya604b Intelligent Lighting Switch Driver, Txa210a Dimming ModuleUS$ 407.69MOQ: 1 Set -
Slc-3-100, Slc-3-60, Slc-3-80 Park Street Light Energy Savers, Energy-saving Retrofit, Voltage Stabilization and DimmingUS$ 1230.77 - 1307.69MOQ: 1 Set
-
Ksl-r416a Factory Lighting Induction System, Ksl-r816a Self-locking Negative Feedback Switch ModuleUS$ 150.77 - 166.15MOQ: 1 Set
-
Ajt-rm0416a School Lighting Intelligent Switch Controller, 8-channel 16a Intelligent Lighting Time Control Module With Remote ControlUS$ 153.69 - 161.54MOQ: 1 Set
-
Thlxd-pt-60a, Thlxd-pt-30a, Thlxd-pt-40a Road Lighting Energy-saving Voltage Stabilizers for National HighwaysUS$ 153.54 - 153.69MOQ: 1 Unit
DDBC516FR Office Intelligent Lighting Switch Driver Panel. The DDBC300 Logic Light Sensor can be remotely controlled via the bus or manually operated for local on/off control; it has a current detection function. System power supply, line coupler, transmission medium, etc. Combined with local bypass switches and lighting circuit status indicators, debugging is simple and convenient. Both the lighting power input and each circuit output are equipped with short-circuit and overload protection circuit breakers. There is also grounding protection. It is suitable for lighting equipment such as incandescent lamps, electronic low-voltage lamps, and cold cathode tubes. Zhejiang Juchuan Electrical Technology Co., Ltd. O577-27877837, Quotation QQ421563834.
DDBC516FR/DDBC300 Technical Parameters:
Input Voltage 30V DC
Switching Voltage 440V AC
Switching Current 20A-16AX 250V ~
Operation and Display Red LED and buttons for assigning physical addresses
Ambient Temperature Range Operating: －5℃～＋45℃
Storage: －25℃～＋55℃
Switching Action Time Less than or equal to 15ms
Design Modular installation equipment
Installation Adopt 35mm standard guide rail
1. Automatic control of lighting
The system is characterized by scene control. There can be multiple lighting circuits in the same room. Adjusting the brightness of each circuit to achieve a certain lighting atmosphere is called a scene. Different scenes can be preset (creating different lighting environments), and the fade-in and fade-out time when switching scenes makes the lighting change gently. Clock control uses a clock controller to make the lighting change according to the sunrise and sunset every day or follow a time pattern. Various sensors and remote controls are used to achieve automatic control of the lighting.
2. Beautify the environment
Indoor lighting uses scene changes to increase the artistic effect of the environment, create a sense of stereoscopy and hierarchy, and create a comfortable environment, which is beneficial to people's physical and mental health and improves work efficiency.
3. Extend the lifespan of lamps
The main factors affecting the lifespan of lamps are overvoltage use and cold-state shock, which greatly reduce the lifespan of lamps. The LT series intelligent dimmer has an output voltage limit protection function: that is, when the grid voltage exceeds the rated voltage of 220V, the dimmer automatically adjusts the output to within 220V.
4. Save energy
A brightness sensor is used to automatically adjust the light intensity to achieve energy-saving effects. A motion sensor is used. When a person enters the sensing area of the sensor, the light gradually brightens. When the person walks out of the sensing area, the light gradually dims or goes out, so that the "always-on lights" in some corridors and stairwells can be controlled to achieve the purpose of energy saving.
5. Illuminance and illuminance consistency
An illuminance sensor can be used to keep the indoor light constant.
6. Comprehensive control
The entire system can be monitored through a computer network. For example, you can understand the current working status of each lighting circuit; set and modify scenes; control the entire system and issue fault reports in case of an emergency. It can be connected to the BA system, fire protection system, security system and other control systems of the building through the gateway interface and serial interface. The LT-net intelligent lighting control system usually consists of dimming modules, switch power modules, scene control panels, sensors and programmers, programming sockets, PC monitoring machines and other components. Connecting the above various modules with independent control functions on a computer data line can form an independent lighting control system. 。
DDBC516FR Office Intelligent Lighting Switch Driver Panel DDBC300 Logic Light Sensor Installation Method:
1. Install on the rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-channel intelligent lighting control module is equivalent to an 8-position switch.
2. The module wiring is very convenient with direct input and output.
3. Only one Yili bus line is needed for the bus, reducing wiring errors.
4. The wiring terminals are large and can accommodate 25-square wires.
Wiring Demonstration:
1. The switch is a Chint switch. The 16A switch is directly connected to the module input terminal, and the input terminal is directly connected to the lamp.
2. The bus and the modules are directly connected in series and then connected to the computer.
Scope of Application of the Intelligent Lighting Module:
Industrial Facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor Control Center (MCC), especially the power distribution control and protection system with a rated operating breaking capacity Ics of up to 80KA in intelligent electrical control systems;
Single motor control and protection system;
Power Distribution Center
Commercial and Civil Facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote control lighting system.
Hospitals
Information Processing Centers (banks, municipalities, securities trading centers, etc.)
Telecommunications Equipment Rooms
Commercial Buildings (large shopping malls, supermarkets, etc.)
Infrastructure
Port or Railway Systems (airports, railway passenger centers, etc.)
Highway lighting or ventilation systems
Military Garrison Control and Protection Systems (such as border posts, radar stations)
Fire Protection Systems.
