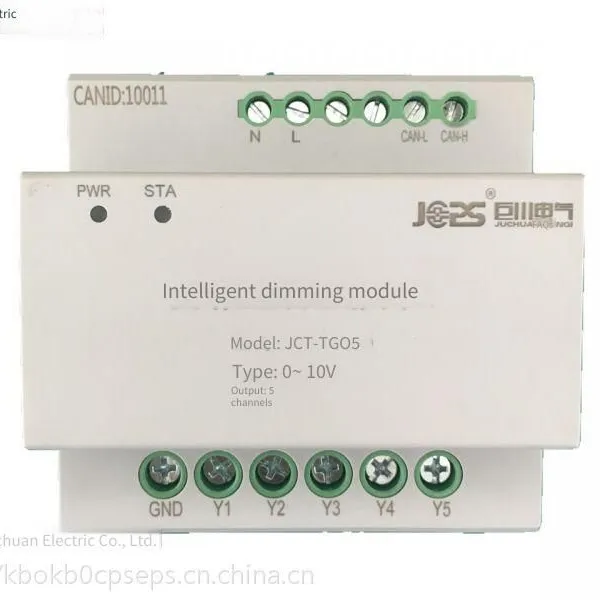

TLYZK-M4/16A Building Intelligent Lighting Sensing and Control System TLYZK-M8/16A, TLYZK-M12/16AAdopts a structured design, With good modularity, Modifiability and portability.Zhejiang Juchuan Electrical Technology Co., Ltd. 0577-27877837 Quotation QQ421563834. With scene control, suitable for use with intelligent switch modules and intelligent dimming modules. It has remote programming and management functions. The intelligent lighting control module is a high-performance product developed based on microprocessors and advanced modern power electronics technology. It can monitor and operate lighting electrical controls, improve the load and faults of lighting electrical controls, reduce maintenance costs, and reduce the maintenance workload of staff. It is simple to operate and powerful in function. The system comes with fire linkage, Fire forced start function. When there is a fire signal, it will automatically light up.
Technical Specification:
Operating Voltage 24DC±10%
Operating Current Starting current: 30mA, Standby current: 30mA, Operating current: 160mA
Operating Environment Temperature: 0℃~45℃, Humidity: 0~95%
Communication Interface CAN bus, 4-pin 5.08 pluggable terminal
Load Interface Relay output, 8×2-pin 7.62 wiring terminal, Wiring capacity: 4mm⊃2;
Rated Current 16A, 20A (single circuit), Instantaneous output current: 80A (single circuit)
Installation Method 35mm standard rail-mounted installation (10 modules
II. Functional Features
Multiple button modes: Single on, Single off, Single on/off, Short press/long press, etc.
Multiple button control types: Scene, Single/multiple circuit adjustment, etc.
With remote programming and management functions
Each button has red and blue indicator lights
Reflects the status of the corresponding circuit in real time
Uses 485 bus communication
86-type concealed box installation
*Time control function *Manual function *Automatic function *Fire protection function *Light control function *Remote wired control

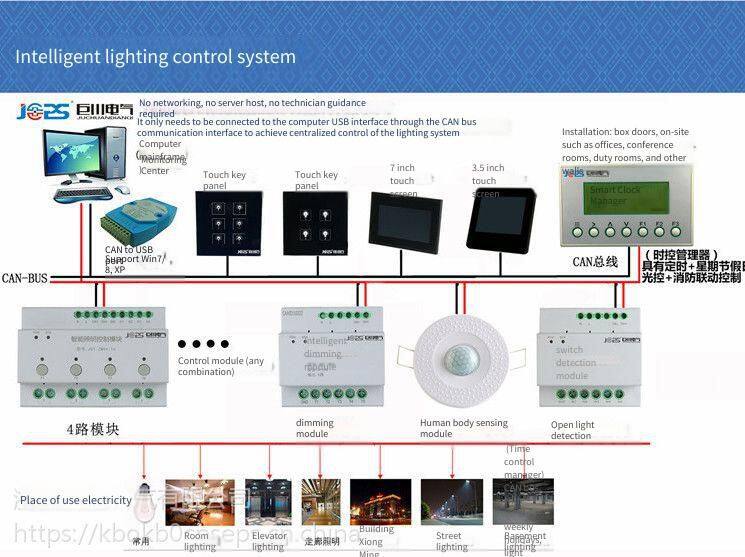

Intelligent lighting control module connection system
No gateway or server host is required. Installation does not require technical guidance, and networking is very simple.
The computer does not need high configuration. It supports the 32-bit WIN 7 system and the Android system on mobile phones.
For the intelligent lighting control module Y-BUS system, there is no need to install a signal amplifier within a wired communication distance of 5 kilometers.
Operation of the building's electrical control by the intelligent lighting control module:

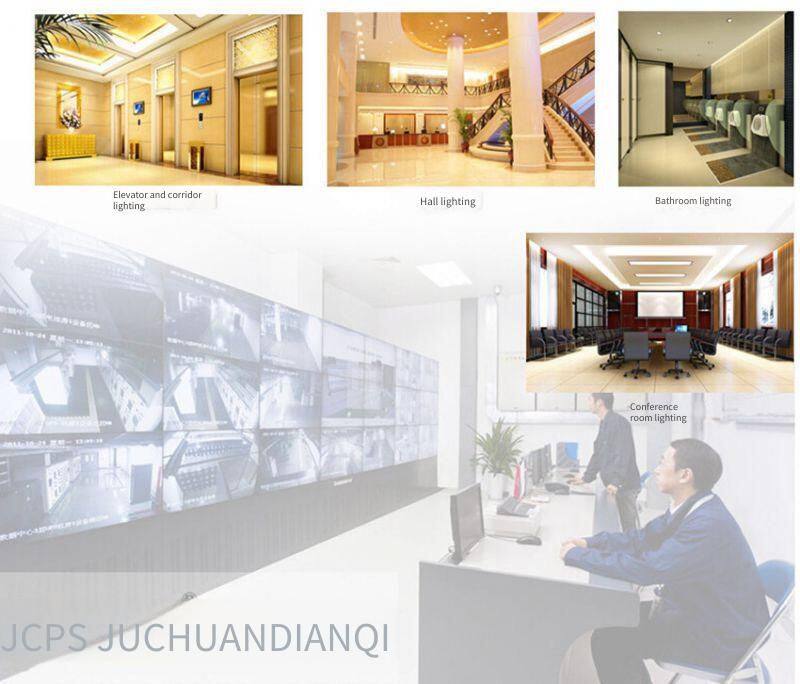

The terminal of the building's intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the circuits of the entire building in the monitoring room without having to go to the site for inspection and on - site operation. They can operate and check whether the lighting is on/off just at the monitoring terminal.

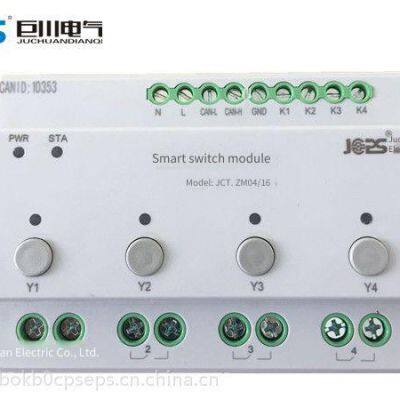

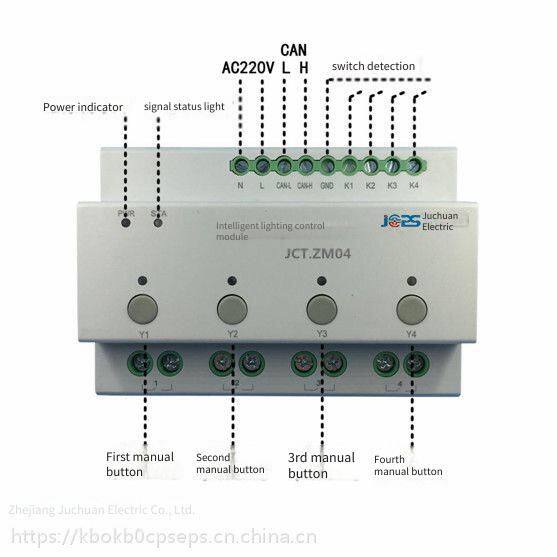

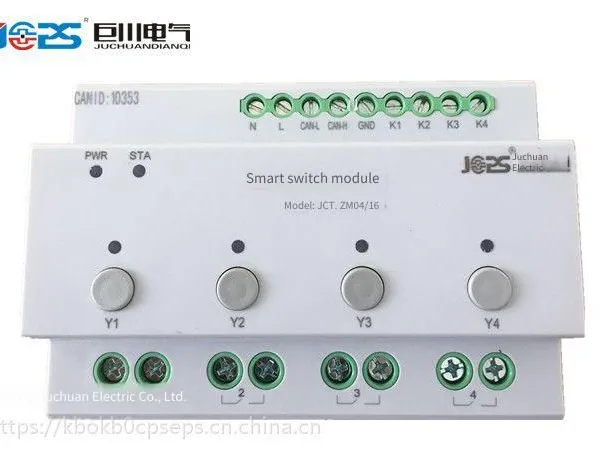

TLYZK-M4/16A TLYZK-M8/16A TLYZK-M12/16A
Installation method of the TLYZK-M4/16A building intelligent lighting sensing and control system, TLYZK-M8/16A, TLYZK-M12/16A:
1. Install on the rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-channel intelligent lighting control module is equivalent to an 8-position switch.
2. The module wiring is very convenient with direct in and out.
3. Only one bus line is needed for the bus, reducing wiring errors.
4. The wiring terminals are large and can accommodate 25-square wires.

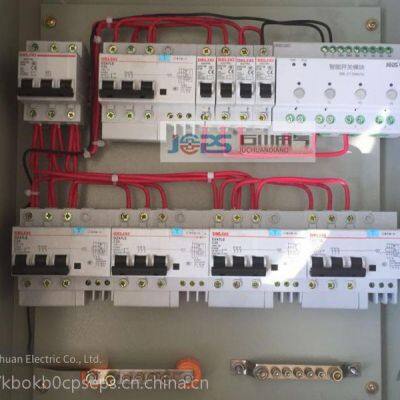

Wiring demonstration:
1. The switch is a Chint switch. The 16A switch is directly connected to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. The bus, modules are directly connected in series and then connected to the computer.
Scope of application of the intelligent lighting module:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, railways, etc.;
Motor control center (MCC), especially the power distribution control and protection system for intelligent electrical control systems or those requiring a rated operating breaking capacity Ics of up to 80KA;
Single motor control and protection system;
Power distribution center
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote control lighting system.
Hospitals
Information processing centers (banks, municipal facilities, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping malls, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger terminals, etc.)
Highway lighting or ventilation systems
Military base control and protection systems (such as border posts, radar stations)
Fire protection systems.
