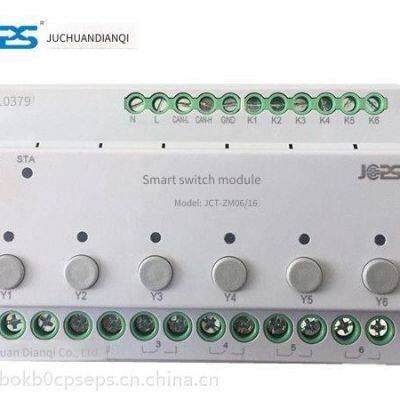

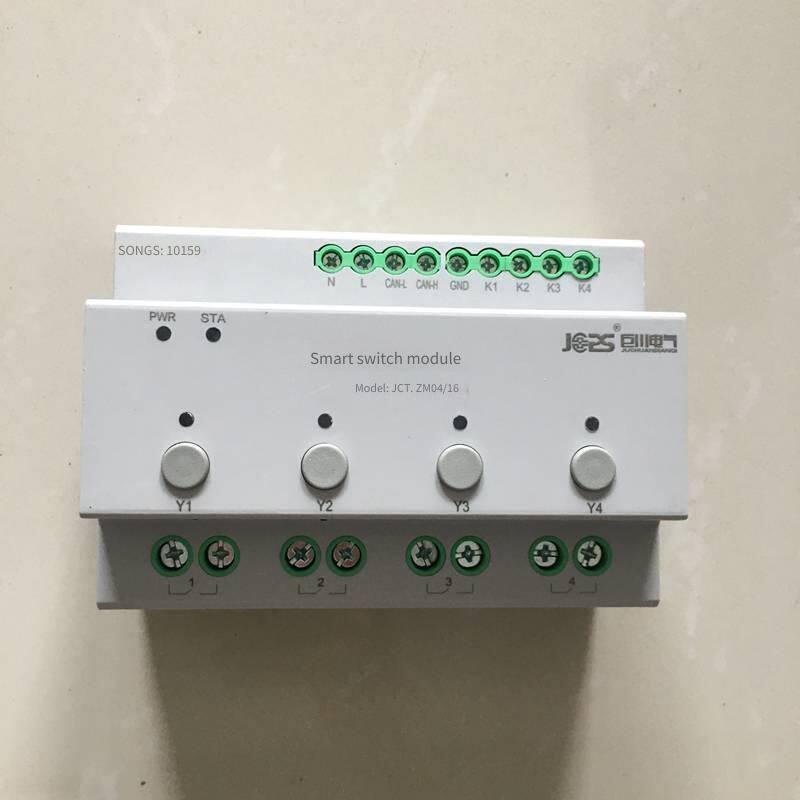

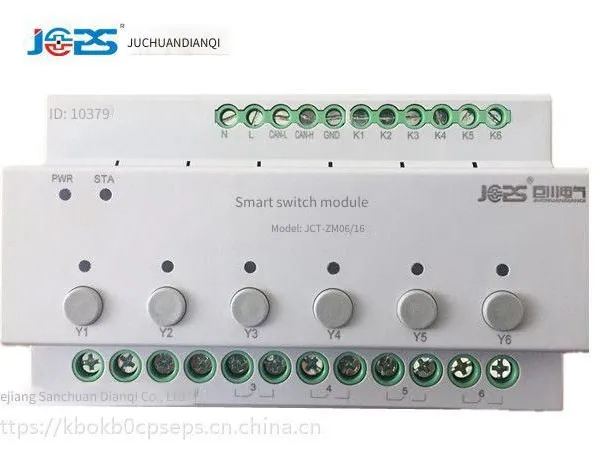

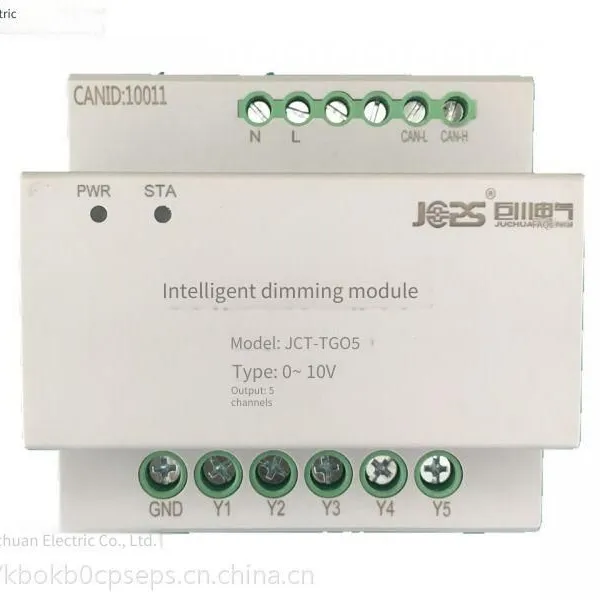

Intelligent lighting switch modules ASF.RL.4.16A and ASF.RL.10.16A. The scenic area lighting dimming panel has optional loops of 4, 6, 8, and 12 circuits, with a load of 16A/20A per circuit. Each channel has a delay function. The system bus network uses the CAN bus method, keeping the bus in a stable state at all times. At the same time, it is combined with SILO's unique intelligent CSMA/CD control technology that integrates software and hardware to ensure that the system can obtain the best transmission rate regardless of the number of bus devices and the length of the bus. The system uses an open and highly scalable protocol, enabling seamless connection between the system and any control system.
2. Control methods of ASF.RL.4.16A:
Time programming: Automatically turn on or off all loops, some loops, or scene loops according to the pre - defined time.
Local manual control:
In case of special circumstances, the intelligent panel can be used to manually control the switches of each lighting loop.
Multi - location control:

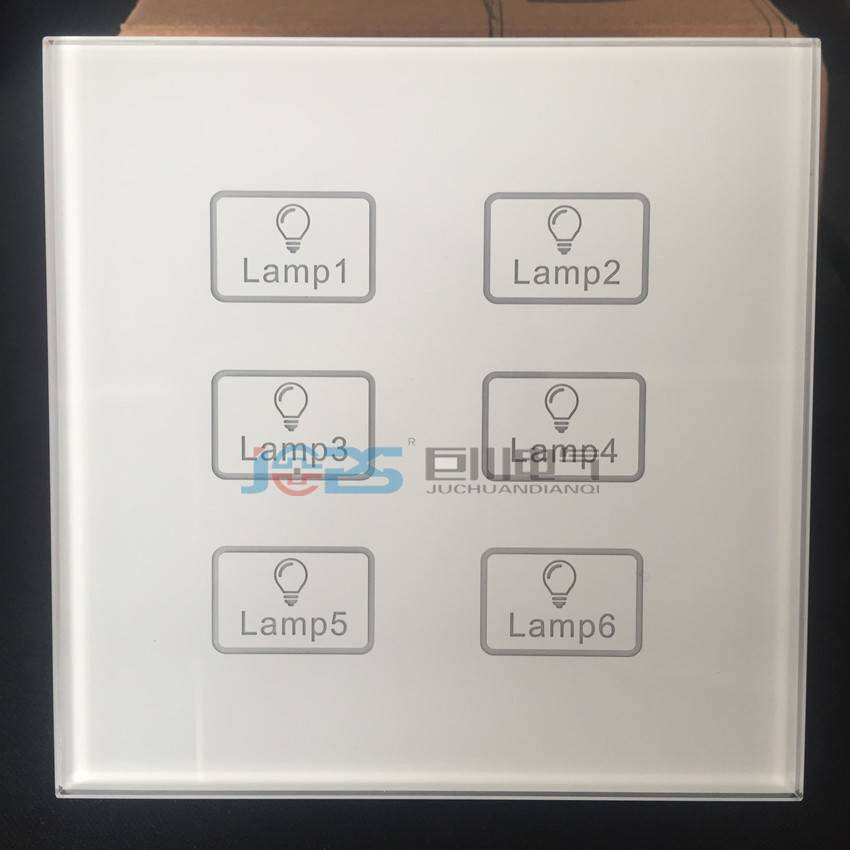

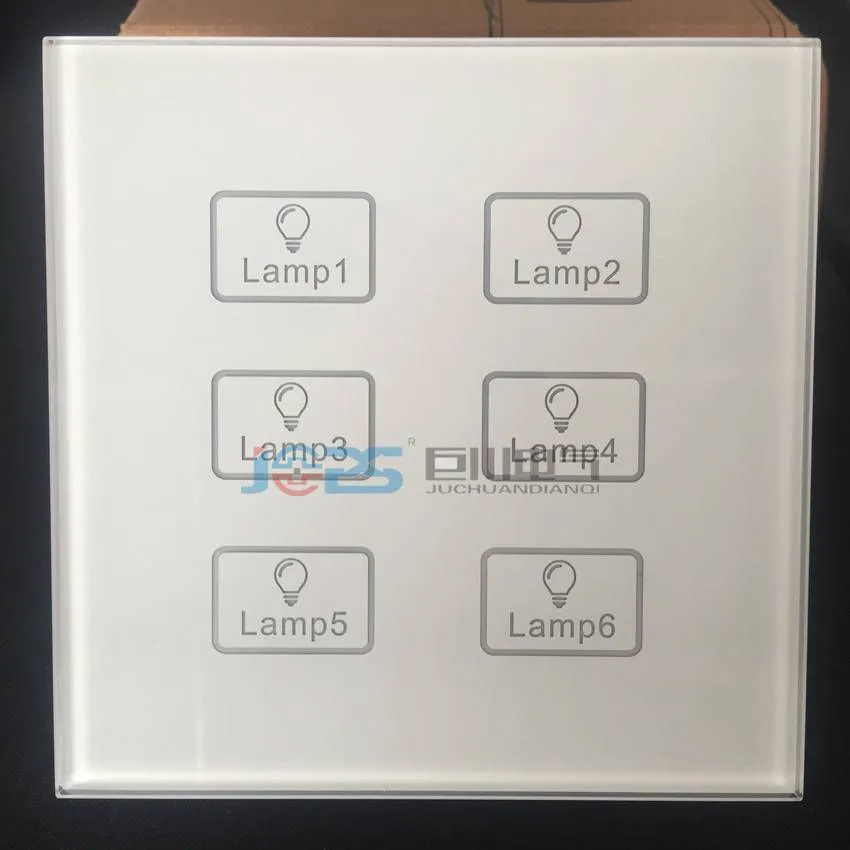

Users can place touch - screen panels in multiple locations. Through communication line connection, multi - location control can be achieved.
Scene control:
Users can pre - set loops with the same control method as a scene (up to 10 scenes can be set). After the setting is completed, the scene loops can be switched on and off with one key through scene selection.
Emergency handling control:
After receiving the alarm from the security and fire - fighting systems, all the lighting in the specified area will be automatically turned on.
External signal control:
The controller can receive signals from infrared motion detectors to turn on the lights when people or vehicles come and turn them off when they leave. It can also receive signals from illuminance detectors. When the on - site illuminance is lower than a certain value, all the lights will be automatically turned on.
3. Main technical parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of buttons: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: - 40℃~+55℃
Storage relative humidity: 10%~93
The intelligent lighting switch modules ASF.RL.4.16A and ASF.RL.10.16A, the scenic area lighting dimming panel is suitable for the following types of lamps: high - pressure sodium lamps, low - pressure sodium lamps, metal halide lamps, high - pressure mercury lamps, fluorescent lamps and other gas - discharge lighting lamps. It contains a power module and a clock, which can be synchronized via the network clock. Each circuit has a load of 20A, and each loop can be manually switched locally. Each area can store 128 scenes. Each loop can be set with four time periods, and the status is fed back to the monitoring part. The scene has a network opening function, and the control voltage is the safe voltage DC5V.
Installation method:
1. Install on the guide rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-position intelligent lighting control module is equivalent to an 8-position switch.
2. The module wiring is very convenient with direct input and output.
3. Only one bus line is needed for the bus, reducing wiring errors.
4. The wiring terminals are large and can accommodate 25-square wires.

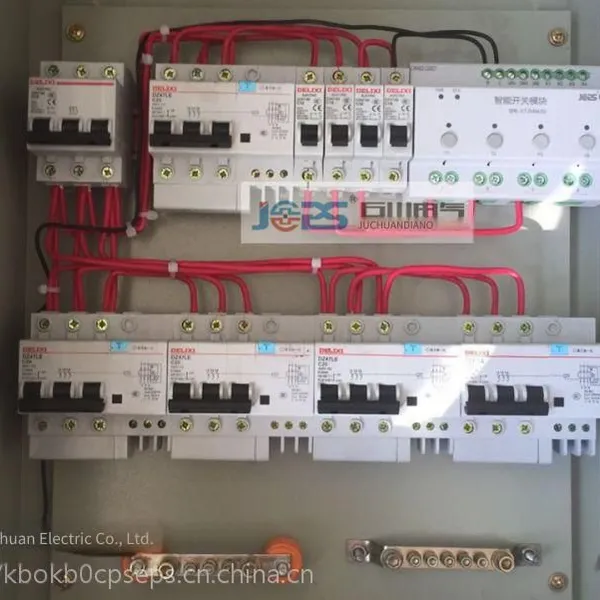

Wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. Connect the bus, modules in series, and then connect them to the computer.
Scope of application of the intelligent lighting module:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control center (MCC), especially the intelligent electrical control system or the power distribution control and protection system requiring a rated operating breaking capacity Ics of up to 80KA;
Single motor control and protection system;
Power distribution center
Commercial and civil facilities
Electrical control and protection systems for lighting, power conversion, pumps, fans, air conditioners, fire protection, lighting, etc. in modern buildings;
Remote control lighting system.
Hospitals
Information processing centers (banks, municipal governments, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping centers, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger transport centers, etc.)
Highway lighting or ventilation systems
Military garrison control and protection systems (such as border posts, radar stations)
Fire protection systems.
