1. Overview
SW/S2.5 SW/S4.5 Intelligent Lighting Control Module, Logic Light Sensor. The smart application scenarios include types such as 2-key, 4-key, 6-key, 8-key, and 12-key. It uses E-BUS bus communication method, has built-in scene control, and is suitable for use in conjunction with intelligent switch modules and intelligent dimming modules. It has remote programming and management functions. The intelligent lighting control module is a high-performance product developed based on microprocessors and modern power electronics advanced technologies. It can monitor and operate lighting electrical controls, improve the load and faults of lighting electrical controls, reduce maintenance costs, and decrease the maintenance workload of staff. It is simple to operate and powerful in function.
2. Functional Features
Multiple key modes: Single on, single off, single on/off, short press/long press, etc.
Multiple key control types: Scene, single/multiple loop adjustment, etc.
Has remote programming and management functions
Each key has red and blue indicator lights
Real-time reflection of the status of the corresponding loop
Uses 485 bus communication method
Installed in an 86-type concealed box
* Time control function * Manual function * Automatic function * Fire protection function * Light control function * Remote wired control
3. Main Technical Parameters
Input voltage: DC24V
Bus power consumption: 30mA/DC24V
Number of keys: 2, 4, 6, 8, 12
Environmental conditions:
Operating temperature: 0℃~45℃
Operating relative humidity: 20%~90%
Storage temperature: -40℃~+55℃
Storage relative humidity: 10%~93

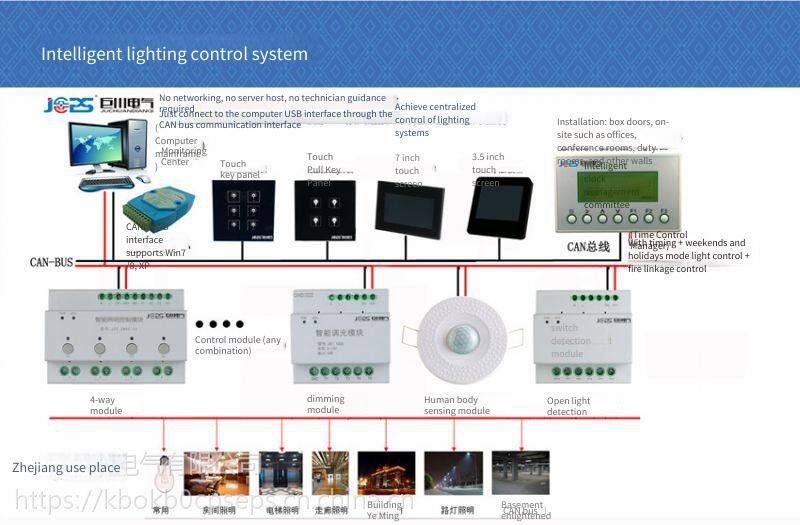

Intelligent Lighting Control Module Connection System
No gateway or server host is required. Installation does not require technical personnel guidance, and networking is very simple.
The computer does not need high configuration. It supports the 32-bit WIN 7 system and the Android system on mobile phones.
The Y-BUS system of the intelligent lighting control module does not require a signal amplifier within a wired communication distance of 5 kilometers.
SW/S2.5 SW/S4.5 Intelligent Lighting Control Module, Logic Light Sensor. The smart application scenarios for the electrical control operation of the building:
The terminal of the building intelligent lighting monitoring system is used to operate and monitor the lighting part of the building in the monitoring room. Managers only need to operate the entire building's circuit in the monitoring room without having to go to the site for inspection and on-site operation. They can operate and check whether the lighting is on/off just at the monitoring terminal.
Installation method:

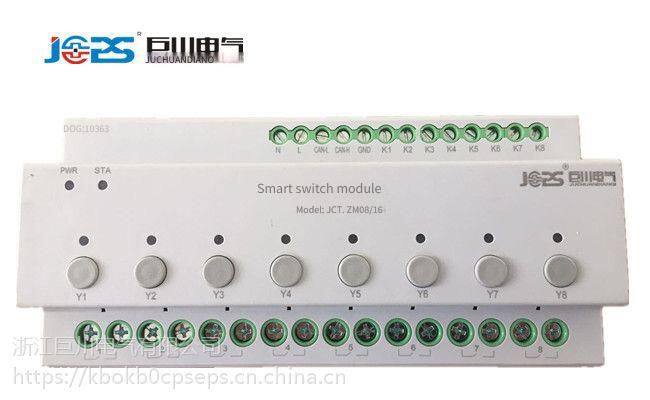

1. Install on the guide rail. The 4-channel intelligent lighting module is equivalent to a 4-position switch, the 6-channel intelligent control module is equivalent to a 6-position switch, and the 8-position intelligent lighting control module is equivalent to an 8-position switch.
2. The module wiring is very convenient with direct input and output.
3. Only one bus line is needed for the bus, reducing wiring errors.
4. The wiring terminals are large and can accommodate 25-square wires.
Technical parameters of the intelligent lighting time control module timer SW/S2.5 SW/S4.5. Clock management wiring demonstration:
1. The switch is a Chint switch. Connect the 16A switch directly to the input terminal of the module, and the input terminal is directly connected to the lamp.
2. Connect the bus and the modules in series, and then connect them to the computer.

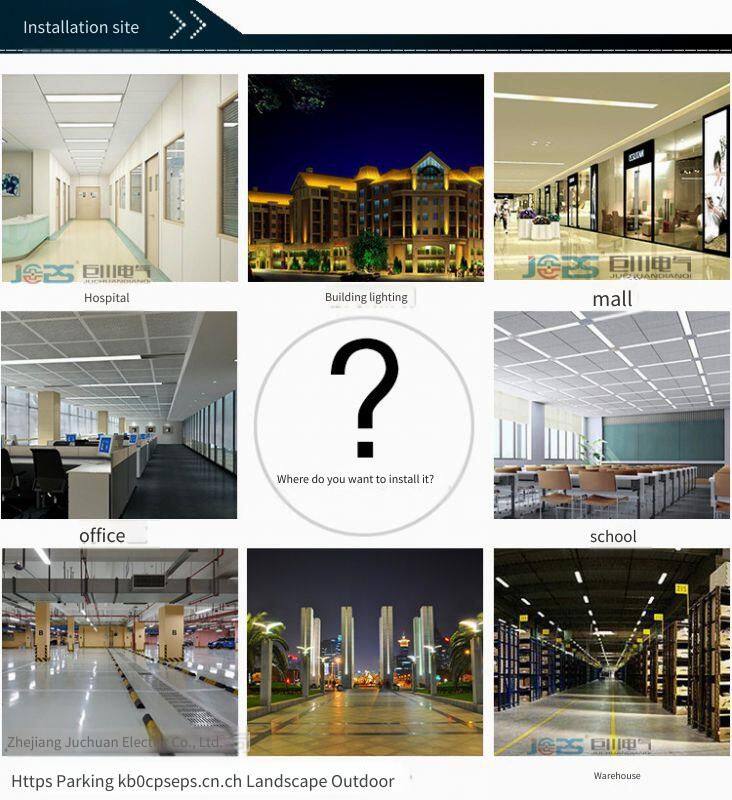

SW/S2.5 SW/S4.5 intelligent lighting control module, logical light sensor. Applicable scope of intelligent application scenarios:
Industrial facilities
Power distribution and motor protection and control systems in fields such as metallurgy, coal mines, steel, petrochemicals, ports, ships, and railways;
Motor control center (MCC), especially the power distribution control and protection system of intelligent electrical control systems or those requiring a rated operating breaking capacity Ics of up to 80KA;
Single motor control and protection system;
Power distribution center
Commercial and civil facilities
Electrical control and protection systems such as lighting, power conversion, pumps, fans, air conditioners, fire protection, and lighting in modern buildings;
Remote control lighting system.
Hospitals
Information processing centers (banks, municipal governments, securities trading centers, etc.)
Telecommunication equipment rooms
Commercial buildings (large shopping centers, supermarkets, etc.)
Infrastructure
Port or railway systems (airports, railway passenger centers, etc.)
Highway lighting or ventilation systems
Military station control and protection systems (such as border posts, radar stations)
Fire protection systems.
