AJT - RM0416A School Lighting Intelligent Switch Controller. The 8 - channel 16A intelligent lighting time - control module features remote distributed intelligent control and an open design. Through the communication protocol (OPC), it can be integrated with other building management systems (BMS), building automation systems (BAS), security, and fire - protection systems to improve the intelligent level of property management.
It enables intelligent control of lighting. Currently, there are mainly two types in the market: Wi - Fi and non - Wi - Fi. The non - Wi - Fi remote control uses the JenNet IP or ZigBee protocol stack source code. There are various wireless protocol stack source codes for different types of applications. Wi - Fi is used for access. If immediate control is needed, JenNet IP and ZigBee are very popular at present. Taking the intelligent lighting control solution as an example, it consists of three main hardware parts, which are responsible for the conversion between TCP/IP and the JenNet IP or ZigBee protocol stack source code. After receiving a TCP/IP command, it converts the command into JenNet IP or ZigBee and sends it to the remote unit. The second part is the Jennic module, which consists of an RF receiver and an MCU. It receives commands and takes actions, supplies power, and transmits information to other modules.
Installation instructions for AJT - RM0416A School Lighting Intelligent Switch Controller:
Step 1. Fix the DIN rail with screws.
Step 2. Snap one end of the bottom cover of the 12 - channel 20A relay module (with current detection) onto the edge of the rail.
Step 3. Press the entire module onto the rail and push the Zhejiang Juchuan Electrical Technology Co., Ltd. module until it reaches the correct position and then fix it.
It causes large - scale lighting outages. The fixed lighting facilities for personnel and vehicles consume a large amount of manpower, material resources, and financial resources. The unreasonable control of lighting facility switching leads to a significant waste of power resources. In modern urban lighting control, while achieving lighting effects, more attention should be paid to the convenience of centralized operation, the characteristics of the location, and the convenience and reliability of equipment installation. For large - scale control areas in cities, it is very difficult to implement intelligent lighting control through wired means. Firstly, large - scale pipe laying and wiring in renovation projects bring great trouble to construction.
Parameter description:
| Intelligent residual pressure monitoring bus power supply: DC24V. |
| Device power supply input: DC24V 125mA; |
| Operating temperature range: 0°C - 45°C |
| Operating accuracy: ±1 second/day |
| Operating current: Starting current: 30mA, |
| Output current: 16A |

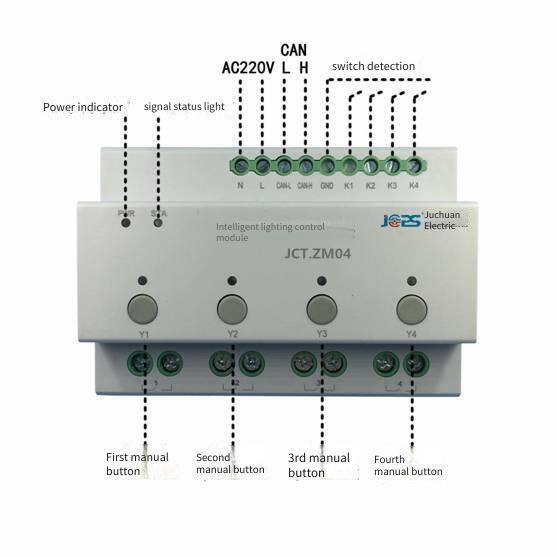

Switch control module
Functional features:
Maximum load per circuit: 16A
Fault reset function
Equipped with multi-circuit sequential delay start function
Can receive passive dry contacts and can be linked with fire protection for control
Each area can store 128 units, with an operating time of 0 - 120 minutes
The switch and closing time of each circuit can be stored in the EEPROM, and the status will automatically return to the main control station when the manual switch is pressed.
Each circuit has a network enable (Enable) or disable (Disable) function
The working voltage of the control circuit is a safe voltage of DC12V~36V
Dimensions: 126(W)x88.4(H)x66(D) / 4-channel, 6-channel, 8-channel, 12-channel
Operating conditions: -10～55℃, 0～95%RH
Working power supply: 220V, 50/60Hz
Features of AJT-RM0416A School Lighting Intelligent Switch Controller:
The product is suitable for the outgoing lines of lighting circuits in the terminal lighting box, providing energy-saving measures for the terminal lighting circuits. It features a small size, light weight, and flexible application.
(1) It adopts high-performance microcomputer control and closed-loop voltage control, with high precision in automatic voltage control, and keeps the voltage within ±1.5V of the optimal lighting voltage.
(2) It can automatically determine the type of lighting load and automatically select the voltage regulation drive.
(3) It has the functions of time-division voltage regulation control and time-division on-off control.
(4) It has an intelligent lighting control function, which can realize lighting control, zone lighting on-off, timing control, and remote centralized control.
(5) It can be used in combination with Juchuan sensors and light intensity sensors to make it more intelligent.
Mechanical and electrical characteristics
Made of 1.2mm cold-rolled steel sheet, with door lock and equipment installation base plate. The wiring can be led out from the top and bottom of the cabinet, and there are two options: surface-mounted and recessed installation.

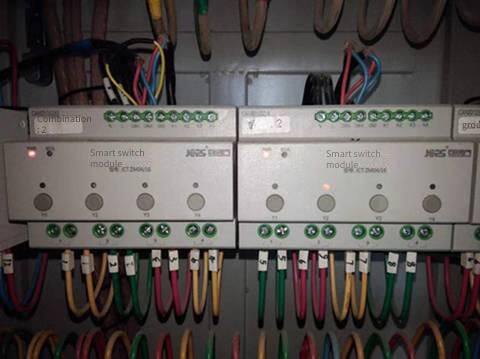

AC220V power input. The internal wiring is pre - assembled. Each relay module is equipped with a separate live wire incoming circuit breaker.
The cabinet contains complete sets of equipment such as circuit breakers, bus device power supplies, equipment rails, cable trays, etc. The cabinet with infrared modules comes with 3 infrared emitter head wires.
All infrared control modules come with self - learning and on - site debugging functions. All Juchuan relay control modules have a relay capacity of 16A, with magnetic latching and manual operation functions.
Each type of cabinet is equipped with 2 channels of RS485 third - party control interfaces. One channel can be flexibly configured with baud rate, verification parameters, etc., while the other channel can only be configured with the baud rate, and other parameters cannot be configured.
The cabinets are connected to the switch through Ethernet cables for networking. All cabinets need to be within the same local area network segment.
