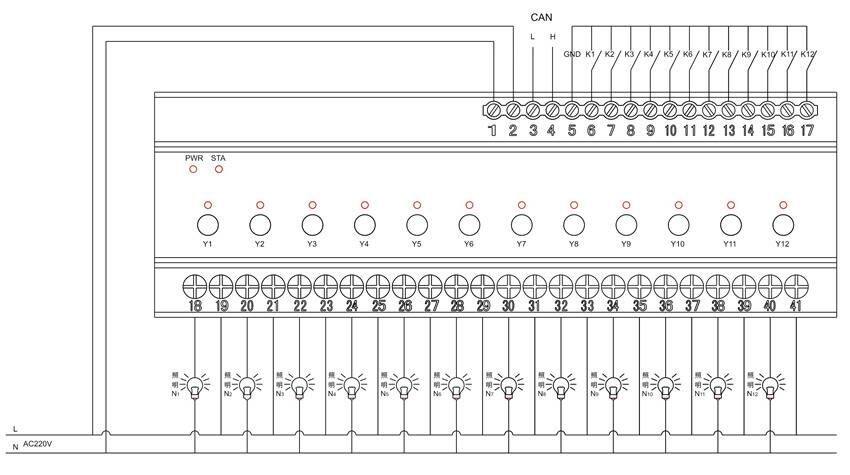

Features of the bus-type intelligent lighting switch: Connect the load circuit wiring to the output terminal of the output unit, and connect the control switch to the output unit with a Category 5 cable. When the load capacity is large, only increase the capacity of the output unit, and the control switch is not affected; when the switch is far away, only the length of the control bus needs to be considered, saving the use of large-section cables; various functions (on/off, dimming, timing, etc.) can be set.
The KSL-R416A factory lighting induction system and the KSL-R816A self-locking negative feedback type switch module save users' electricity expenses and also save power resources. In today's society, the integration theory and intelligent control technology are becoming more and more perfect. Both the theoretical basis and practice are available, providing a good foundation for the combination of building automation and intelligent lighting control. The integration analysis of building automation and intelligent lighting control technology is in its initial stage. At first, designers mainly used relays to combine building automation and intelligent lighting. Through actual operation, it was found that this method did not work well in use, could not meet the requirements for a high degree of intelligence and automation, and was poor in flexibility and reliability. Therefore, designers and architects are looking for a better integration method. With the continuous improvement of people's living standards, people have personalized requirements for buildings, and the shapes and structures of many buildings have become more complex. Based on the structural conditions of buildings, the idea is to combine intelligent lighting control with building automation.

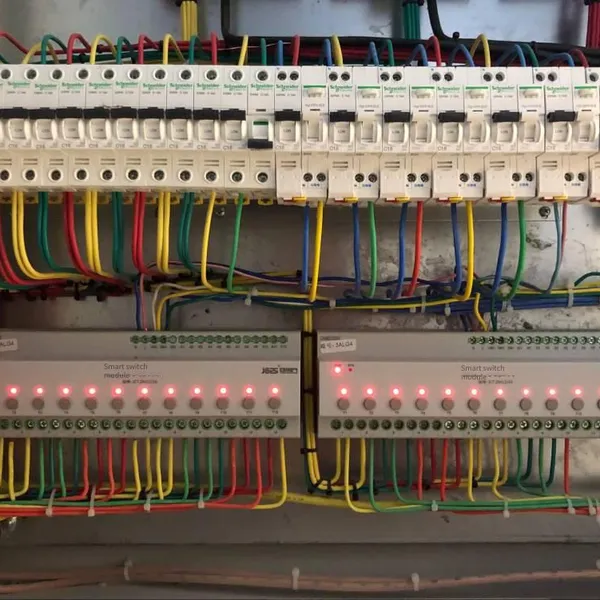

Installation dimensions of the intelligent lighting module
1、Installed in PZ30 distribution box: .18, 24 positions
2、Installed in the complete distribution box: 126*88*66 or 6P dimensions
3、Installation: DIN35 rail
Precautions
1) Please strictly follow the user manual when wiring and installing.
2) Select the module according to the rated current of the circuit to avoid overloading.
3) Please strictly distinguish between220V and12V power supplies to avoid burning out the module.
Main functions:
Function of abnormal lamp startup and automatic protection;
Functions of recording the lamp startup time, cumulative records, and statistics of the lamp service life;
In case of power supply failure, it has the function of automatically switching the dual-circuit power receiving cabinets and starting the emergency lighting group;
An automatic/manual transfer switch is provided for manual operation of turning on and off each lamp group when necessary;
Interfaces for connection with other systems, such as Building Automation (BA), are set up to improve the comprehensive level;
Functions of presetting, brightness adjustment, timing, sequential control, soft start, and soft shutdown. With the further development and improvement of Juchuan Intelligence, its functions will be further enhanced.
KSL-R416A Factory Workshop Lighting Induction System KSL-R816A Self-locking Negative Feedback Type Switch Module Product Advantages:
2-channel lighting circuit output, supports high-power equipment with magnetic latching relays
Power supply: AC220V
Rated power: 2W
Bus protocol: LonWorks
Number of dimming interfaces: 6
Dimming interface type: Thyristor
Number of relays: 2
Relay type: 16A magnetic latching
Number of DIs: 5
Installation: 35mm rail installation
Overall dimensions: 157mm*86mm*60mm
2-channel lighting circuit output, supporting high-power equipment with magnetic latching relays
6-channel thyristor lighting circuit dimming control
Supports incandescent lamps, halogen lamps and thyristor LED lamps
5-channel DI for dynamic control of lighting, etc.
Compatible with ordinary reset panels to function as Juchuan smart switches or perform related functions
Comparison of lighting control products
1. Comparison of materials and workmanship
The relays of Zhejiang Juchuan Electrical Technology Co., Ltd. lighting modules are selected from Hongfa relays and use American ATMEL Atmel chips, with excellent performance. They do not crash after long-term use, and are not affected by climate or bad weather. IP three-proofing can be customized.
2. Comparison of product design
Our products have a more beautiful appearance. The internal circuit board of the switch module is designed for rail-mounted installation, occupying only 4 module positions with a small volume, leading in the 4/6/8/12-channel industry.
Some enterprises' products have ordinary appearances. The relay module is a circuit board covered with a plastic cover, with an unreasonable design, difficult to form a complete system, and cumbersome to install.
3. Comparison of installation and wiring
Zhejiang Juchuan Electrical Technology Co., Ltd. products are convenient for wiring and installation. They are rail-mounted, with modular wiring, plug-and-play, clear layout, and can be wired by ordinary electricians.
Most peer enterprises use labor model products, which are difficult to install on the guide rail, with chaotic layout and require a lot of work for installation.
4. Comparison of functional features
Our bus is programming-free, and the configuration of intelligent lighting, key binding, timing control, status monitoring control, and multi-control terminal control of lights can be completed on the mobile phone. The switch module is equipped with a manual emergency button, a forced switch interface, an ID manual dial, and the switch status is displayed in real time.
