Product Overview
Intelligent lighting can be divided into bus-type and hybrid (mainly star structure) according to the network topology. The bus-type has strong flexibility, is easy to expand and control, and has a relatively low cost; the hybrid has high reliability, simple fault diagnosis and exclusion, simple access protocol, and high transmission rate. Therefore, in the specific design, the 4-channel intelligent lighting control is designed as an independent unit, adopting a distributed and decentralized structure. The dimming control of each unit is relatively independent and self-contained, without interference with each other.
It has functions such as manual toggle, logic, delay, stair, preset, and flashing. Each loop can be called by 5 8-bit addresses simultaneously, and there are 64 addresses to choose from. Each output channel is equipped with a current detection function.

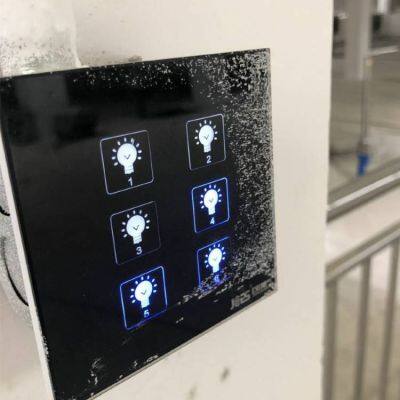

The lighting in public areas (such as corridors, lounges, and stairwells) can be automatically controlled through infrared sensors. The working state can be changed through the monitoring computer according to actual needs.
| Technical Specifications of TYA604B Intelligent Lighting Switch Driver and TXA210A Dimming Module: |
| Operating voltage: 21 - 30VDC, powered from the bus |
| Small load: 60W |
| Unit: 100mA |
| Large current peak Ip(150μs) 400A |
| Function: Power transformer; |
| Standby power consumption: |
| Power LED indicator and one communication LED indicator |
| Contacts provide 5 - 10A 250VAC AC on-off control |
Specification description:
Digital switch output
Output characteristics: 8-channel output, one set of normally open and one set of normally closed, rated load 250VAC/10A. Zhejiang Juchuan Electrical Technology Co., Ltd. supports local loop switch operation and remote loop switch operation.
Digital switch input
Input characteristics: 8-channel input, passive dry contact, normally open. Supports the detection of the contactor's pull-in state. When the input and output states are inconsistent, the lights are turned on during the day and off at night. When the input dry contact is closed, it can be used for door opening, electronic fence, etc.
Multiple timing controls
The product has three built-in time schemes: date-time scheme, weekly scheme, and degree scheme. Users can choose any one of the time schemes for timing control.
Local human-machine interface operation
3-inch grayscale clear LCD display and push-button operation, supporting local manual light switching operations when the network is disconnected, local timing plan setting, device working status display, device operation parameter query and configuration, etc.
Network time synchronization function
Technical parameters

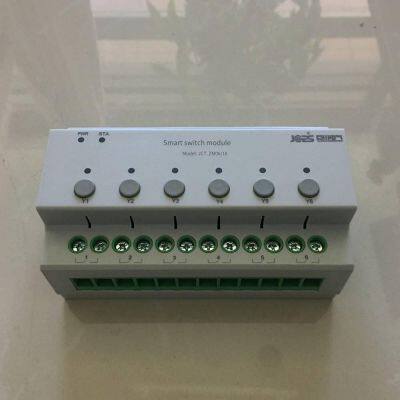

| External dimensions of 4-channel intelligent module | 126mm (length) × 88mm (width) × 66mm (height) |
| External dimensions of 6-channel intelligent module | 144mm (length) × 88mm (width) × 66mm (height) |
| External dimensions of 8-channel intelligent module | 185mm (length) × 88mm (width) × 66mm (height) |
| External dimensions of 12-channel intelligent module | 266mm (length) × 88mm (width) × 66mm (height) |
After-sales service and warranty scope for TYA604B intelligent lighting switch driver and TXA210A dimming module:
Since the date of purchase (subject to the date on the warranty certificate), when used correctly in accordance with the user manual and the labels posted on the device.
If there is no man-made fault within the warranty period, the warranty is valid for one year. Please keep the warranty certificate properly. It will not be reissued if lost.
If you have any objections to the product appearance and quantity, you should inform Zhejiang Juchuan Electrical Technology Co., Ltd. by phone within five working days after receiving the equipment. Otherwise, the supplier will consider it as correct and handle it accordingly;
The following situations do not fall within the scope of free warranty, and maintenance fees will be charged:
Damage caused by non - factors such as electrostatic induction, lightning strike, abnormal voltage, etc. due to incorrect power supply, connection, short - circuit of the line, or poor grounding not in accordance with the instructions during installation and use;
Malfunctions and damages caused by incorrect use, unauthorized disassembly, or modification;
Malfunctions and damages caused by dropping, handling, etc. during installation at the site, transportation after purchase; damages caused by force majeure.
