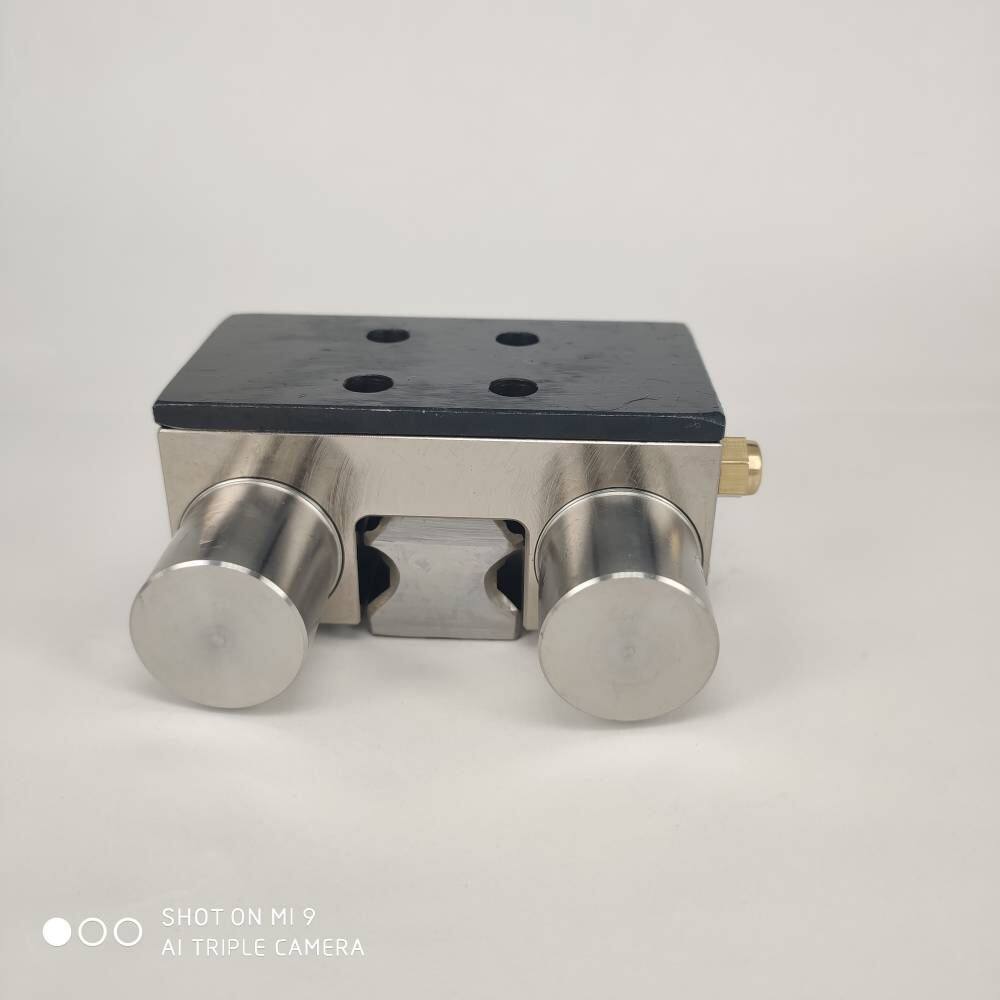

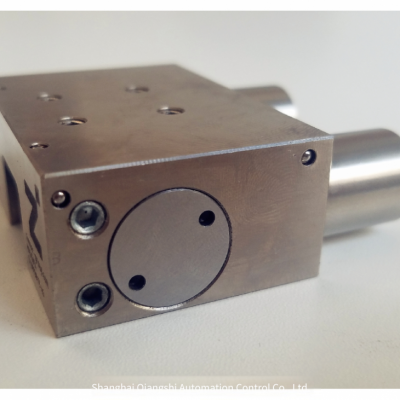

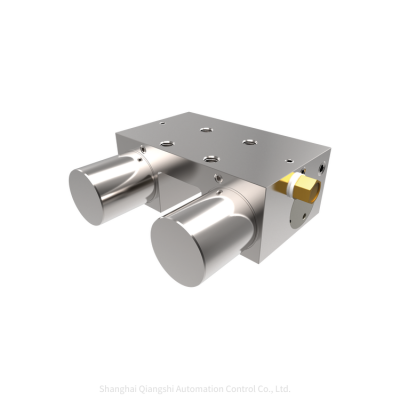

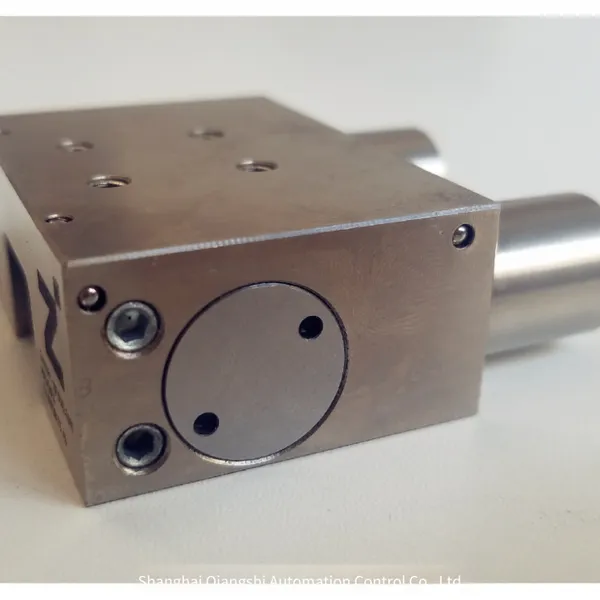

Pneumatic control linear rail clamping unit MCPS45S, normally closed type rail lock clamp, NUMAX rail clamp. Product specifications:
Control method: Pneumatic, normally closed
Opening pressure: 0.55MPa
Working pressure: 0.65MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Nominal size of applicable rails: #12～#85
Main body material: Equivalent to SCr415 electroless nickel plating.

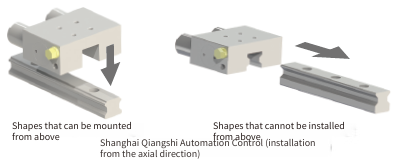

Pneumatic control linear rail clamping unit MCPS45S, normally closed type rail lock clamp, NUMAX rail clamp. Installation steps:
First, install the rail clamp on the rail in the unclamped state. For the normally closed type, with the spacer inserted at the factory, perform about 10 opening and closing operations, and then install the rail.
2. Then temporarily fasten the rail clamp and the auxiliary gasket (if necessary) to the object such as the slide table to be used. Screws with a strength grade of 8.8 or higher should be used, and ensure that the engagement length is at least the nominal diameter of the thread × 0.9.
3. Next, after repeating the clamping/unclamping operation of the rail about 10 times, keep it in the clamped state.
4. In the clamped state of the rail, fasten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
5. For products with a sealing ring, fasten the sealing ring fixing bolts in the temporarily fastened state.
6. Confirm that the rail clamp does not interfere with the shield base, etc.
7. The MCPS normally closed type rail lock has a spacer between the contact surfaces at the factory. Do not remove the spacer except during installation. If it is left for a long time with the spacer removed, the MCPS may fail to operate.

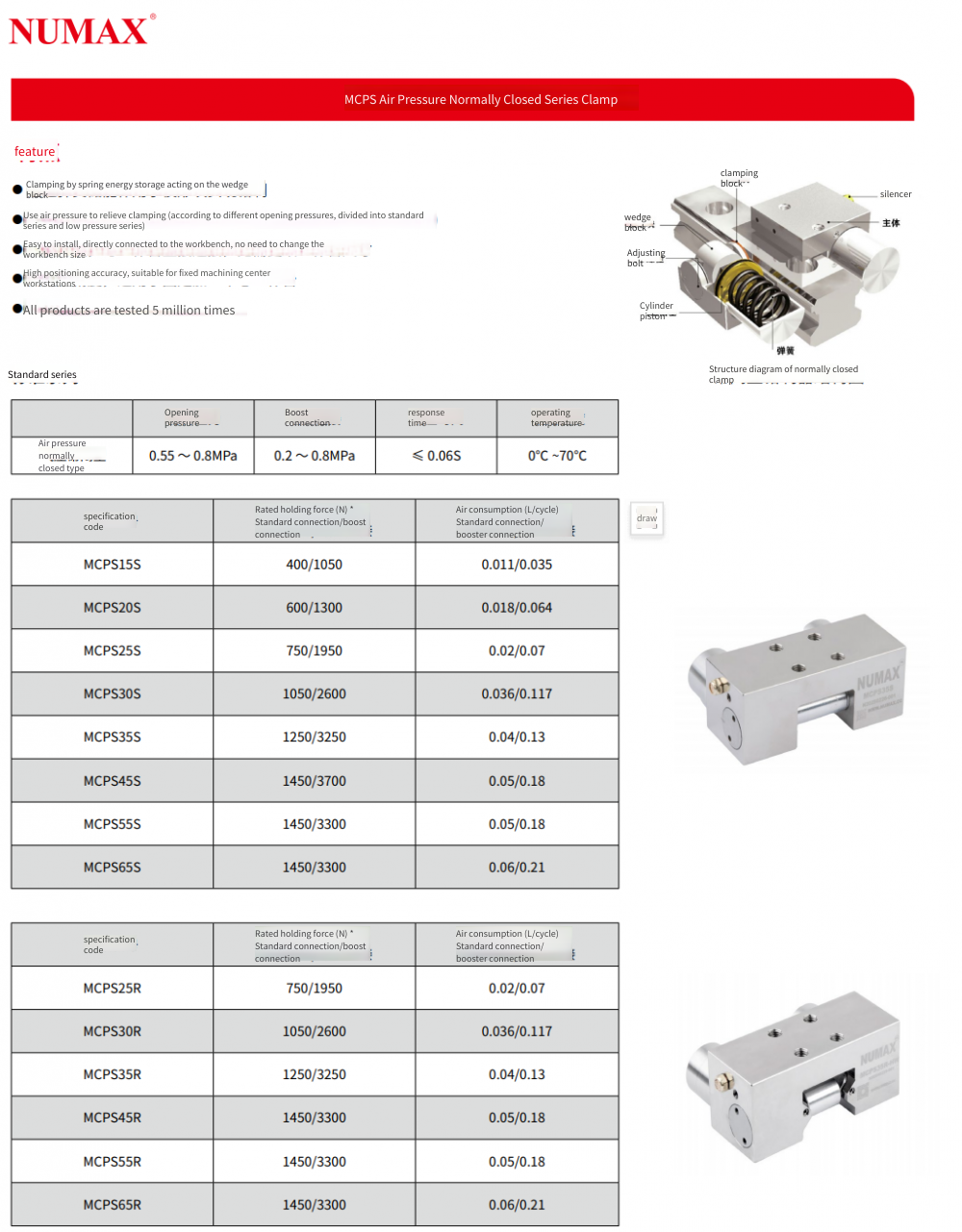

Product features:
1. Used for fixing the slide table, positioning and preventing vibration.
2. It is a normally closed (Normally Closed) type.
That is, when supplying air: Release the clamping. When exhausting: Clamp the linear rail by the force of the spring.
The opening pressure is 0.3MPa
3. Compact design.
It can also be used on square shafts. Please refer to the following pages for the hardness and dimensional tolerance of the square shaft.

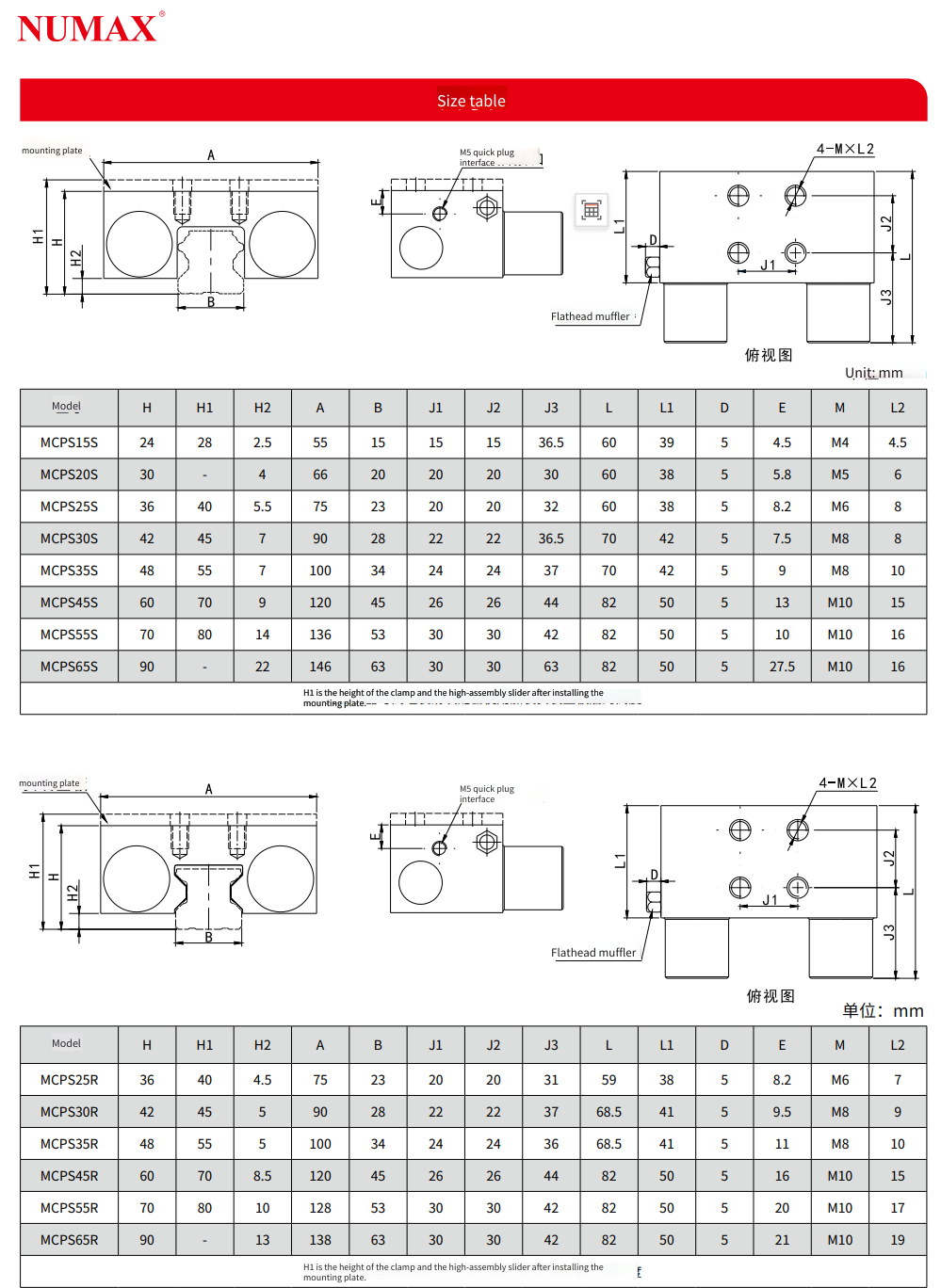

Installation dimensions
It can be easily assembled into the existing system. There is no need for design changes such as extending the rail length or changing the slide table size.
Installation dimensions:
