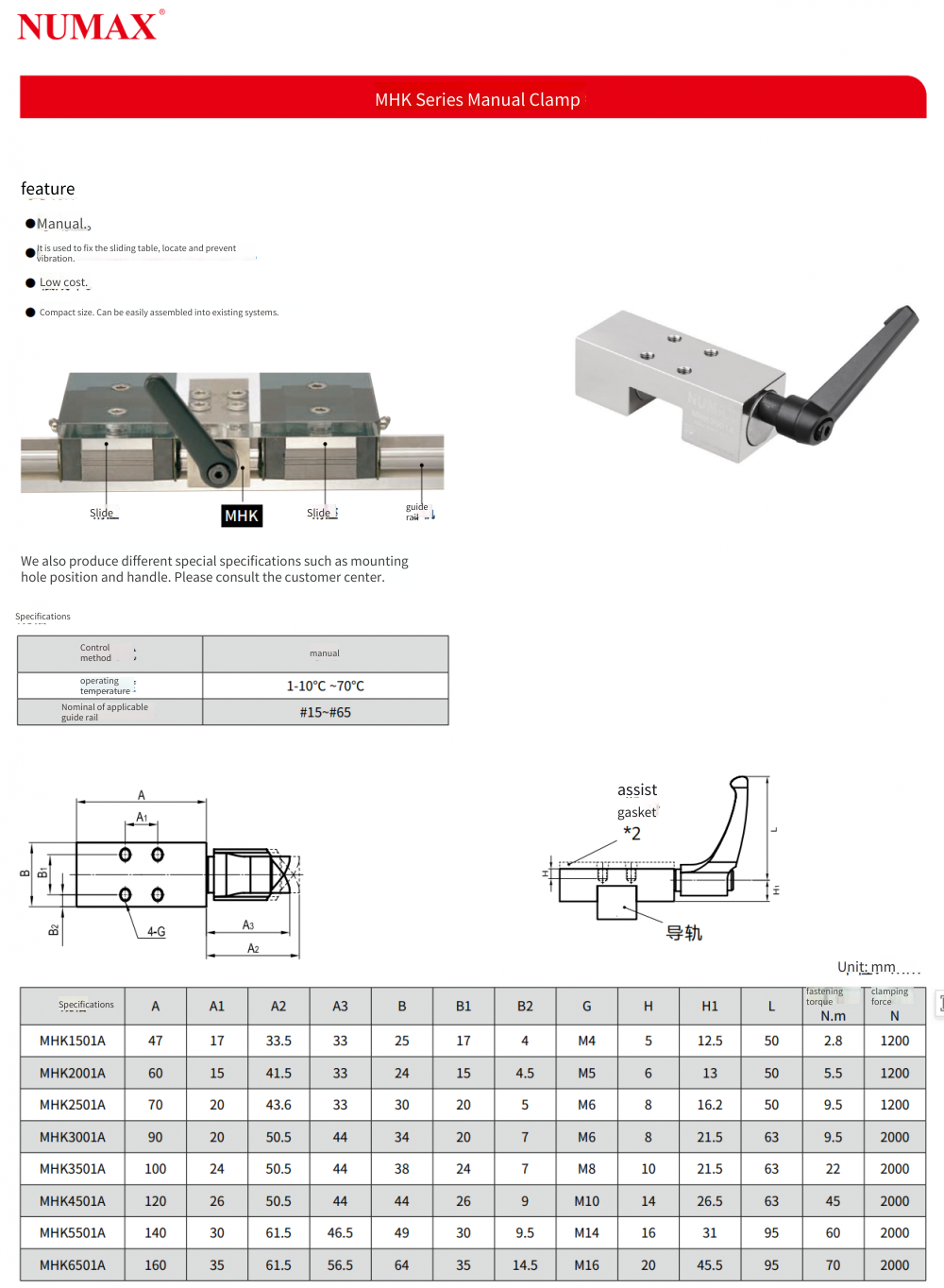

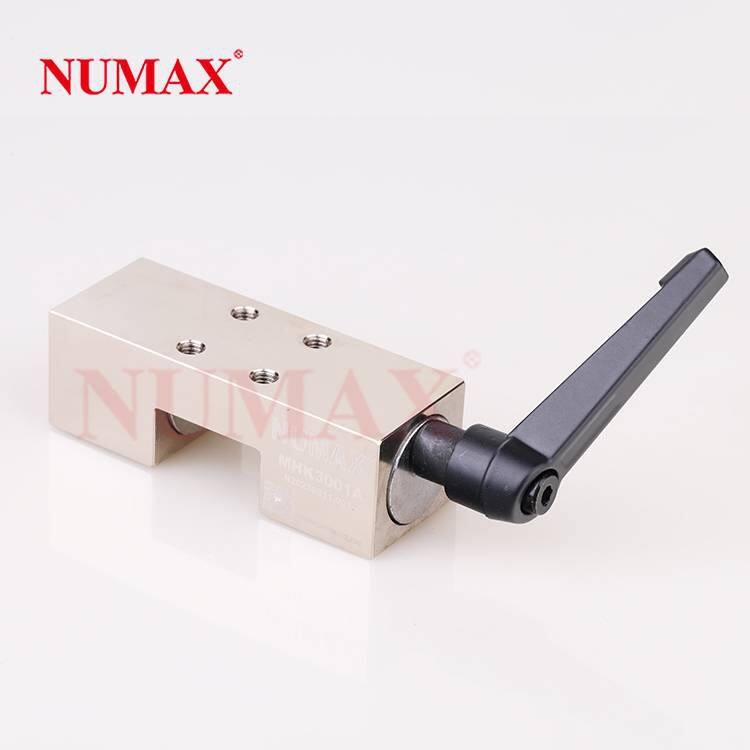

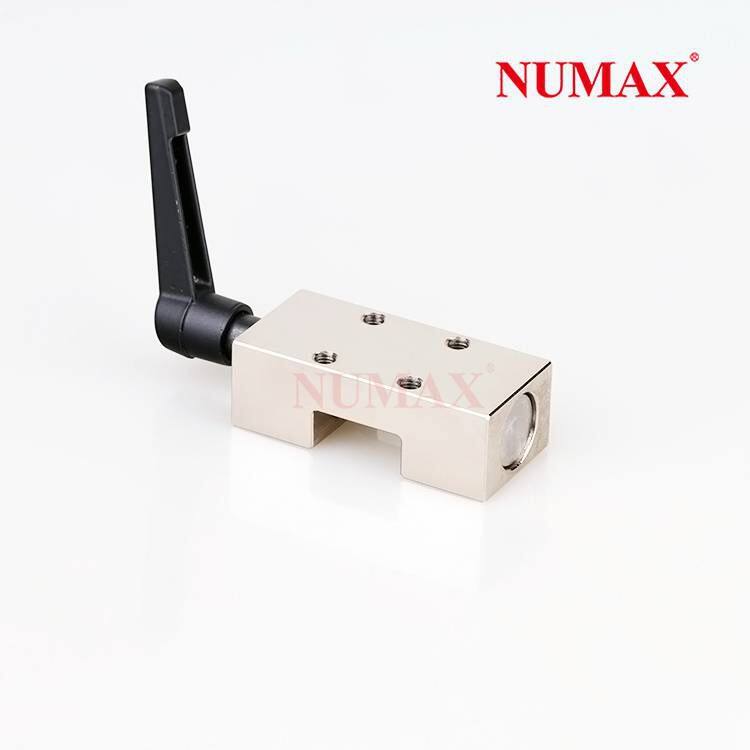

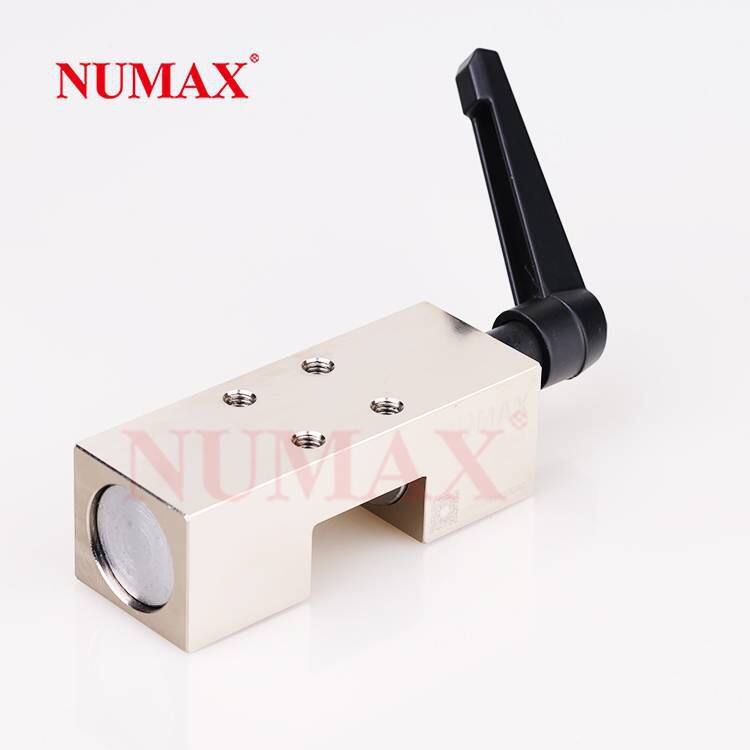

Domestic manual clamp HK3501A, linear guide clamping pliers, manually controlled guide rail lock. Product features:
Plastic clamping rod: Can be freely adjusted (separated when lifted).
Jaw: Floating installation ensures symmetrical force transmission.
Shell: Made of electroless nickel-plated steel.
Product description and technical specifications:
A wide range of product types, suitable for common shaped guide rails of many brands of linear guides.
Can be opened and closed without tools (bistable);
Maintenance-free by rotating the clamping rod;
Up to 50,000 static clamping cycles.
Control method: Manual;
Operating temperature: -10 to +50 degrees;
Nominal size of applicable guide rails: 15 to 35;
Material: The main body is equivalent to SCr415, electroless nickel-plated
Applicable linear guide specifications:
PMI MSA MSA35A
PMI MSA MSA35E
PMI MSA MSA35LA
PMI MSA MSA35LE
PMI MSA PMK35-7 MSA35LS
PMI MSA PMK35-7 MSA35S
PMI MSB PMK35-4 MSB35E
PMI MSB PMK35-4 MSB35LE
PMI MSB PMK35-4 MSB35LS
PMI MSB PMK35-4 MSB35S
PMI MSB PMK35-4 MSB35TE
PMI MSB PMK35-4 MSB35TS
THK HSR HSR35A
THK HSR HSR35AM
THK HSR HSR35B
THK HSR HSR35BM
THK HSR HSR35C
THK HSR HSR35CA
THK HSR HSR35CAM
THK HSR HSR35CB
THK HSR HSR35CBM
THK HSR HSR35HA
THK HSR HSR35HAM
THK HSR HSR35HB
THK HSR HSR35HBM
THK HSR HSR35LA
THK HSR HSR35LAM
THK HSR HSR35LB
THK HSR HSR35LBM
