German ZIMMER Pneumatic Controller, Profile Rail φ85 Clamp, Normally Open Rail Lock MK8501A. Installation steps:
1. Install the clamp on the rail in the unclamped state. For the normally closed type, perform about 10 opening and closing actions with the spacer inserted at the factory, and then install the rail.
2. Temporarily fasten the rail clamp and auxiliary shims (if necessary) to the object such as the slide table to be used. Please use screws with a strength grade of 8.8 or higher, and ensure that the engagement length is at least 0.9 times the nominal diameter of the thread.
3. After repeating the action of clamping/unclamping the rail about 10 times, keep it in the clamped state.
4. In the state of clamping the rail, fasten the mounting screws with the specified tightening torque.
5. For products with sealing rings, fasten the sealing ring fixing bolts in the temporarily fastened state.
6. Confirm that the rail clamp does not interfere with the shield base, etc.
Specification introduction:
Control method: Pneumatic, Normally Open
Opening pressure: 0.3MPa
Operating pressure: 0.6MPa
Response time: 0.06s
Operating temperature: 0℃～70℃
Clamping life: 5,000,000 times
Nominal size of applicable rail: #85
Body material: Equivalent to SCr415 electroless nickel plating;
German ZIMMER Pneumatic Controller, Profile Rail φ85 Clamp, Normally Open Rail Lock MK8501A. Features:
1. Used for fixing the slide table, positioning and preventing vibration.
2. It is a Normally Open type.
When the air pressure is on, it clamps the linear rail.
When the air pressure is off, it releases the clamping.
3. Compact design.
4. It can also be used on square shafts. Please refer to the relevant materials for the hardness and dimensional tolerance of the square shaft.
5. Special specification products with different pneumatic connection positions and mounting hole positions can also be customized.
6. It can be easily assembled into the existing system. There is no need to make design changes such as extending the rail length or changing the slide table size.

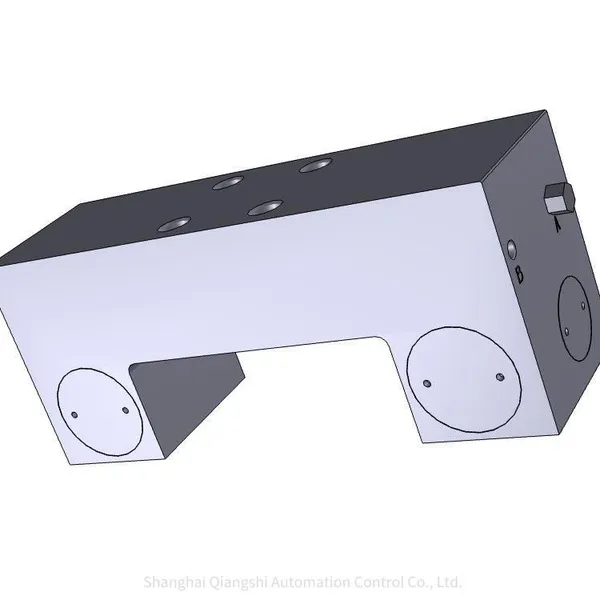

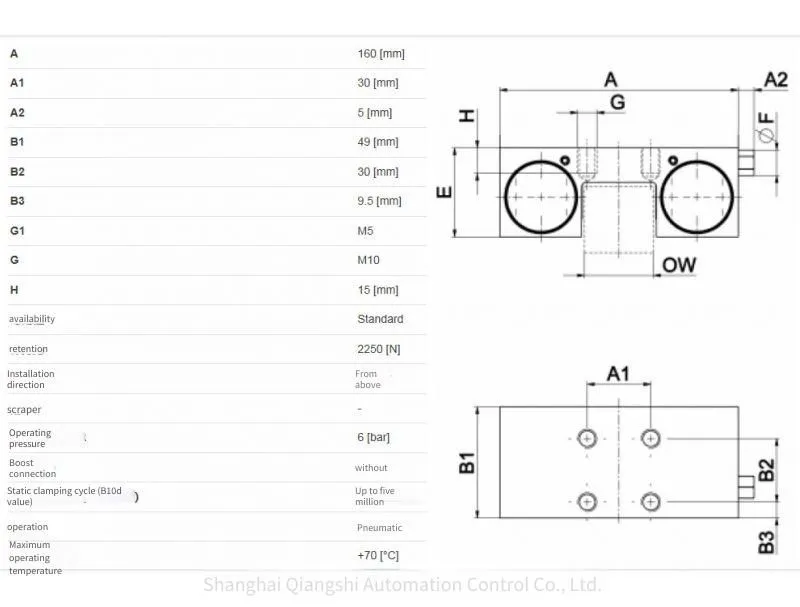

Product installation dimensions:
