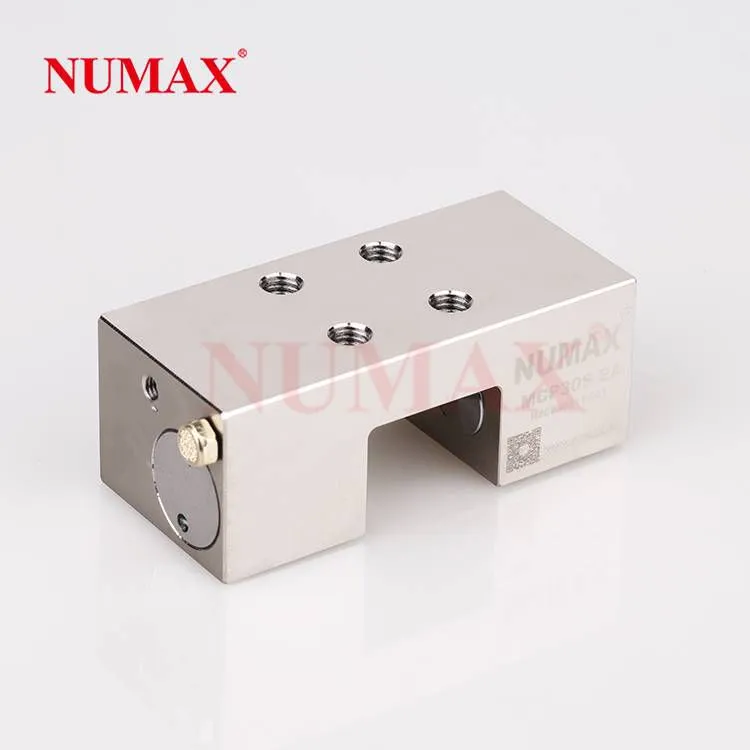

Linear Guide Rail Gripper Mcp25s, Domestic Pneumatic Clamping Guide Rail Lock, Air-ventilated Clamping Type Linear Rail Clamp

Linear guide rail gripper MCP25S, domestic pneumatic clamping guide rail lock, air-ventilated clamping type linear rail clamp, installation steps:

1. Install the clamp on the guide rail in the unclamped state. For the normally closed type, perform about 10 opening and closing actions with the spacer inserted at the factory, and then install the guide rail.

2. Temporarily fasten the guide rail clamp and the auxiliary gasket (if necessary) on the object such as the slide table to be used. Please use screws with a strength grade of 8.8 or above, and ensure that the engagement length is more than the nominal diameter of the thread × 0.9.


3. After repeating the action of clamping/unclamping the guide rail about 10 times, keep it in the clamped state.


4. Fasten the mounting screws with the specified tightening torque in the state of clamping the guide rail.


5. For products with a sealing ring, fasten the sealing ring fixing bolts in the temporarily fastened state.


6. Confirm that the guide rail clamp does not interfere with the shield base, etc.




Material:

Main body: Equivalent to SCr415 electroless nickel plating;
Air filter: Brass;
Contact surface: Equivalent to SUJ2;
Adjusting bolt: Equivalent to SUJ2;
Cover: SUS303

Linear guide rail gripper MCP25S, domestic pneumatic clamping guide rail lock, air-ventilated clamping type linear rail clamp, features:
1. Used for fixing the slide table, positioning and preventing vibration.

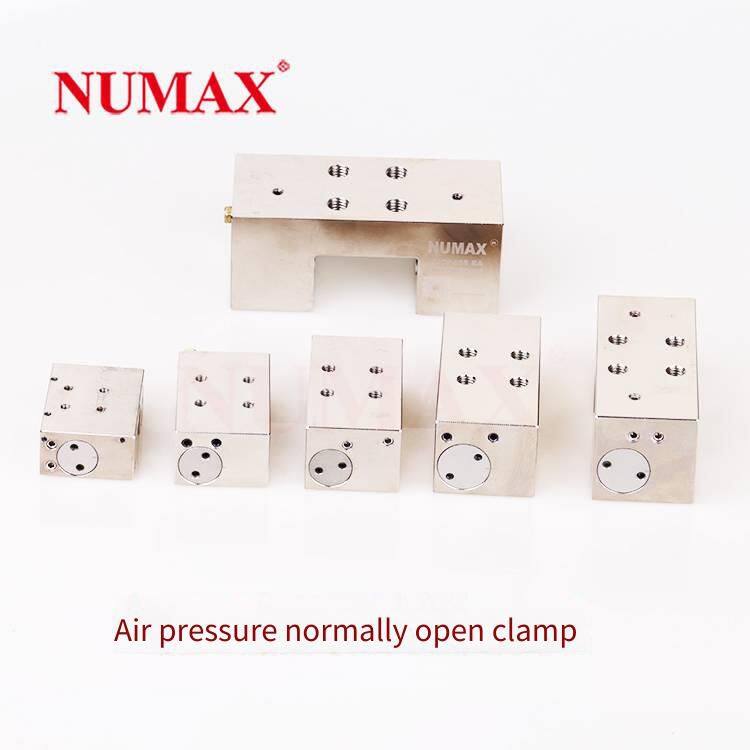

2. It is a normally open (Normally Open) type.
When the air pressure is on, it clamps the linear guide rail.
When the air pressure is off, the clamping is released.
3. Compact design.
4. It can also be used on square shafts. Please refer to the relevant materials for the hardness and dimensional tolerance of the square shaft.
5. Special specification products with different air pressure connection positions and mounting hole positions can also be customized.
6. It can be simply assembled to the existing system. There is no need to make design changes such as extending the guide rail length or changing the slide table size.

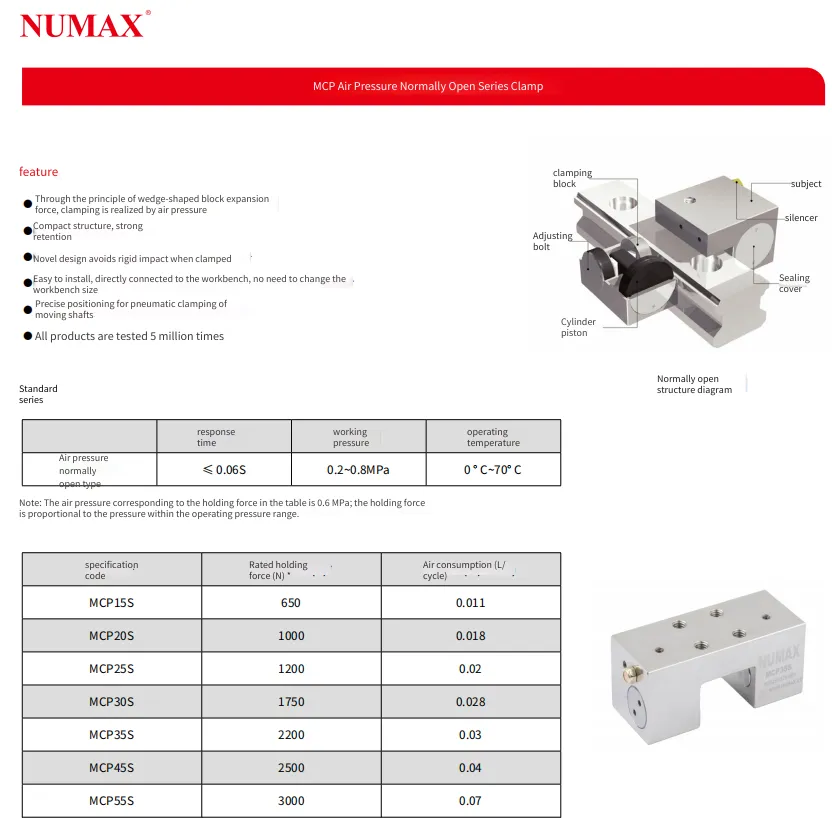

Specification description:

Control method: Pneumatic, normally open
Opening pressure: 0.3MPa
Operating pressure: 0.6MPa
Response time: 0.06s
Operating temperature: 0℃～70℃
Clamping life: 5000000 times
Nominal size of applicable guide rail: #12～#65

Installation dimensions:
