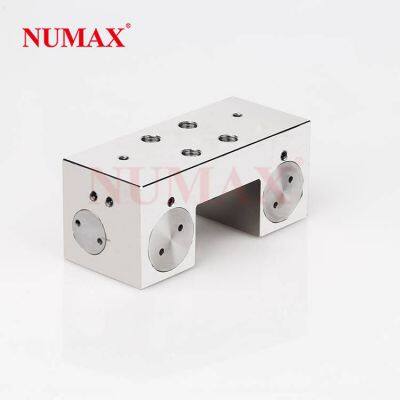

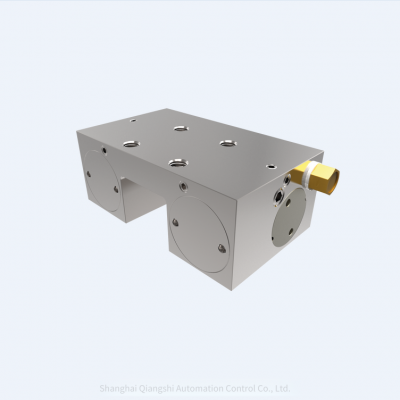

Air Pressure Control Type Rail Lock Mcp55s, Domestic Numax Clamp, no Normally Open Type Rail Brake

Air pressure control type rail lock MCP55S, domestic NUMAX clamp, NO normally open type rail brake. Product description:

1. Used for fixing the sliding table, positioning and preventing vibration.


2. It is a normally open type. When the air pressure is on, it clamps the linear rail. When the air pressure is off, the clamping is released.

3. Compact design.


4. It can also be used on square shafts. Please refer to the relevant materials for the hardness and dimensional tolerance of the square shaft.


5. Special specification products with different air pressure connection positions and mounting hole positions can also be customized.


6. It can be simply assembled to the existing system. There is no need to make design changes such as extending the rail length or changing the sliding table size.

Air pressure control type rail lock MCP55S, domestic NUMAX clamp, NO normally open type rail brake. Installation introduction:

1. Install the clamp on the rail in the state of releasing the clamping. For the normally closed type, perform about 10 opening and closing actions with the spacer inserted at the time of delivery, and then install the rail.

2. Temporarily fasten the rail clamp and the auxiliary gasket (if necessary) on the object such as the sliding table to be used. Please use screws with a strength grade of 8.8 or above to ensure that the engagement length is more than the nominal diameter of the thread × 0.9.


3. After repeating the action of clamping/releasing the clamping of the rail about 10 times, keep it in the clamping state.


4. Fasten the mounting screws with the specified tightening torque in the state of clamping the rail.


5. For products with a sealing ring, fasten the sealing ring fixing bolt in the temporarily fastened state.


6. Confirm that the rail clamp does not interfere with the shield base, etc.

Specifications:

Control method: Air pressure, normally open
Opening pressure: 0.3MPa
Operating pressure: 0.6MPa
Response time: 0.06s
Operating temperature: 0℃～70℃
Clamping life: 5000000 times
Nominal size of applicable rail: #55 linear rail

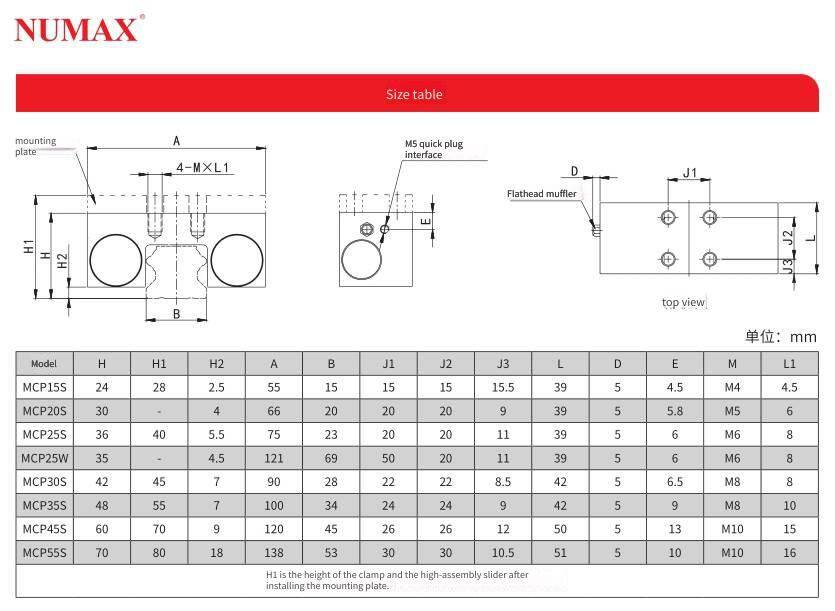

Installation dimensions:
