Pneumatic normally open type rail lock, clamp. Japanese NBK Rail, Kurohaba MK-1201-A. Product description:
Main body: Equivalent to SCr415 electroless nickel plating;
Air filter: Brass;
Contact surface: Equivalent to SUJ2;
Adjusting bolt: Equivalent to SUJ2;
Cover: SUS303
Features:
1. Used for fixing the slide table, positioning and preventing vibration.
2. It is a normally open type.
When the air pressure is on, it clamps the linear guide rail.
When the air pressure is off, the clamping is released.
3. Compact design.
4. It can also be used on square shafts. Please refer to the relevant materials for the hardness and dimensional tolerance of the square shaft.
5. Special specification products with different pneumatic connection positions and mounting hole positions can also be customized.
6. It can be simply assembled to the existing system. There is no need to make design changes such as extending the guide rail length or changing the slide table size.
Pressurization connection method
1. Remove the air filter.
2. Install the pipe joint, hose and solenoid valve.
3. Start supplying air.
1. Start the solenoid valve and confirm the opening and closing status of the clamp.
Pneumatic normally open type rail lock, clamp. Japanese NBK Rail, Kurohaba MK-1201-A. Applicable guide rails:
IKO LRX(MX) LRX
IKO LRX(MX) LRXC
IKO LRX(MX) LRXD
IKO LRX(MX) LRXDC
IKO LRX(MX) LRXDC12SL
IKO LRX(MX) LRXDG
IKO LRX(MX) LRXDG12SL
IKO LRX(MX) LRXD12SL
IKO LRX(MX) LRXG
THK HSR HSR12RM
IKO LWH(MH) LWHD
IKO LWH(MH) LWHDC12SL
IKO LWH(MH) LWHDG12SL
IKO LWH(MH) LWHD12SL
IKO LWH(MH) LWHT
IKO LWH(MH) LWHT12SL
IKO LWH(MH) MHD
IKO LWH(MH) MHDC12SL
IKO LWH(MH) MHDG12SL
IKO LWH(MH) MHD12SL
IKO LWH(MH) MHT
IKO LWH(MH) MHT12SL

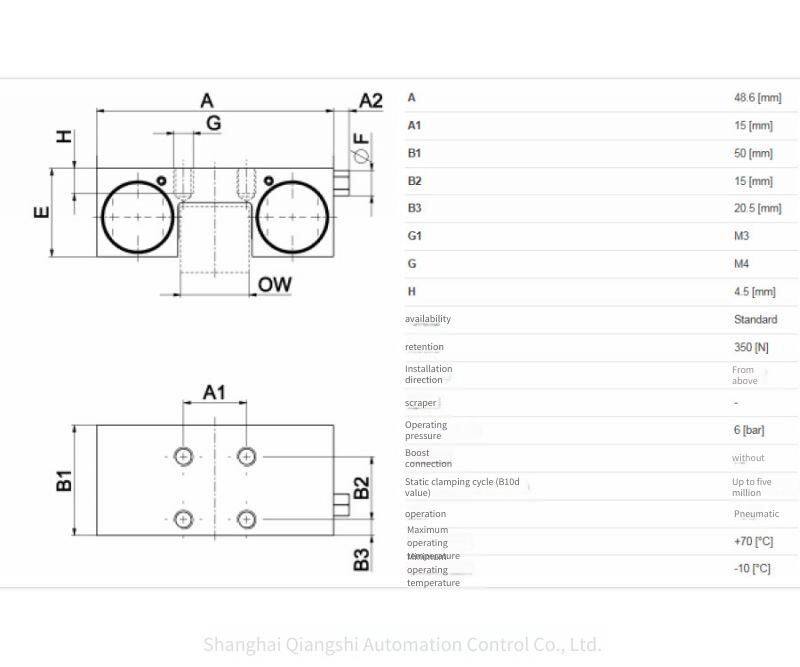

Installation dimensions:
