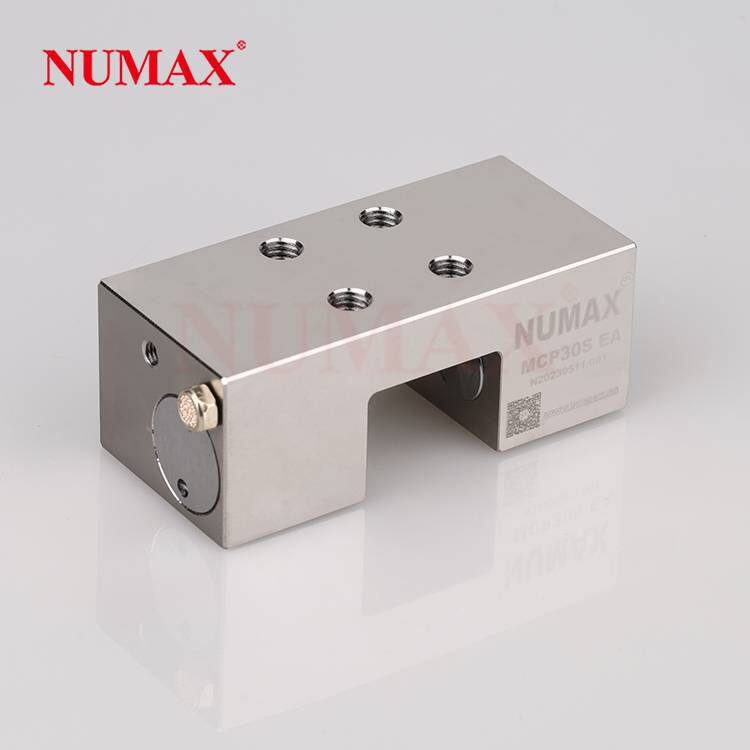

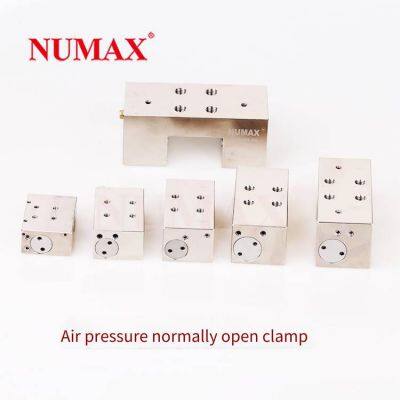

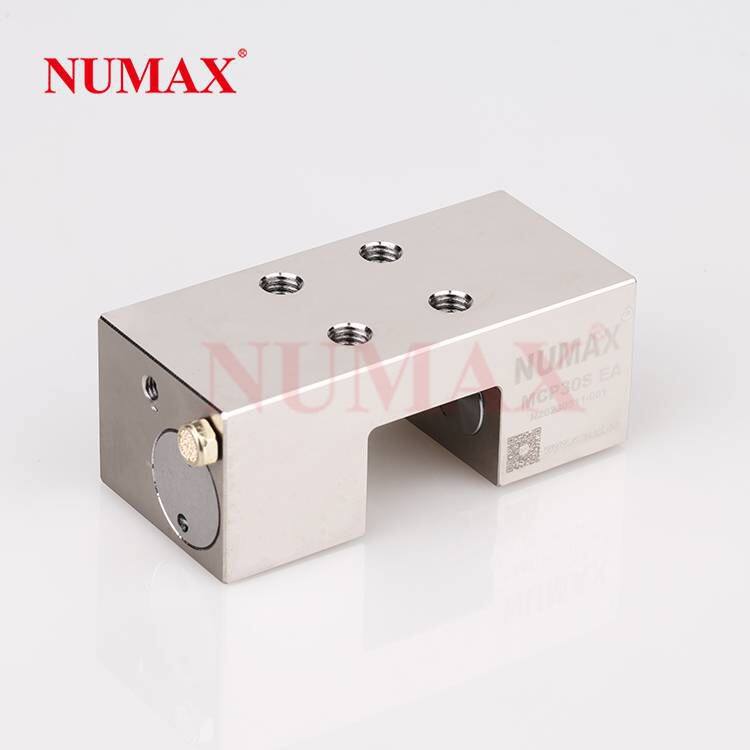

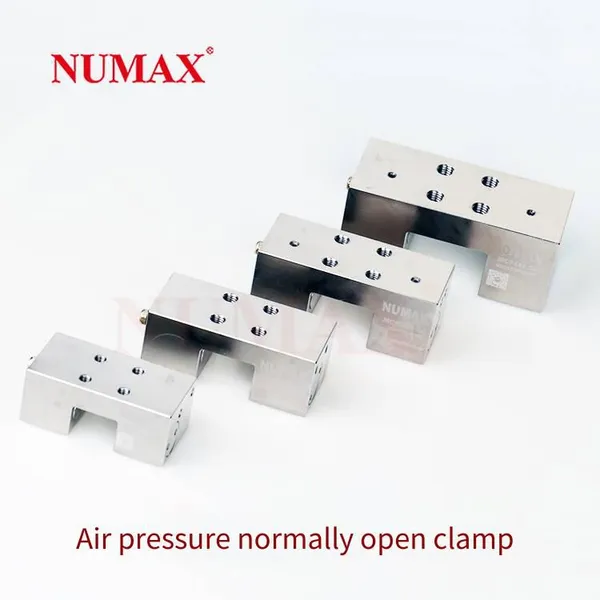

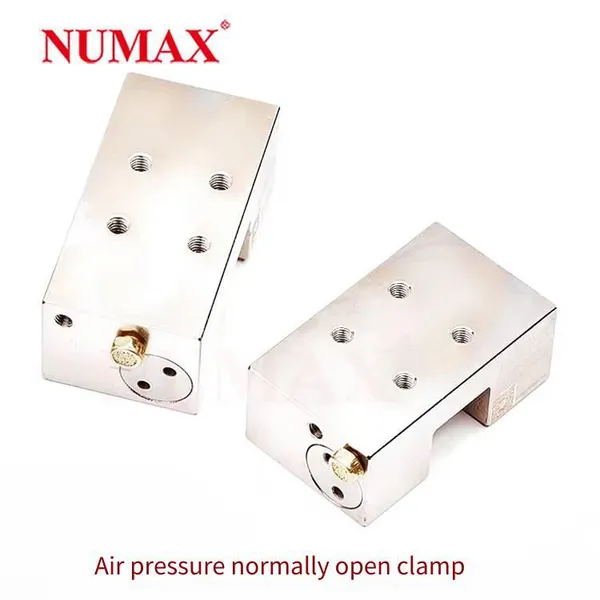

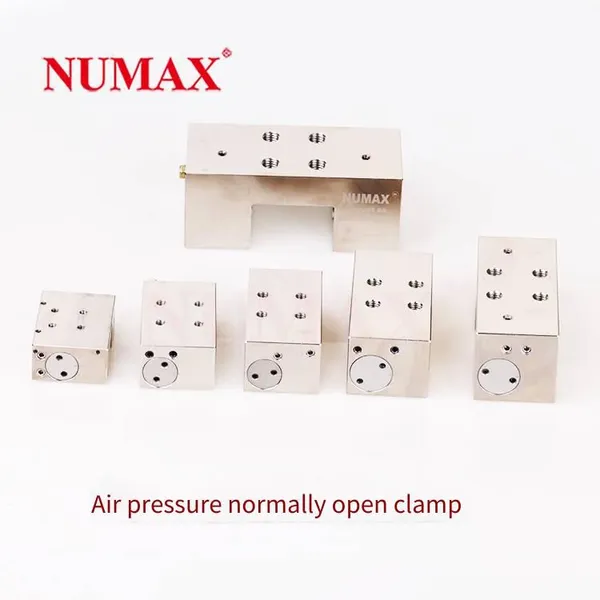

Numax Rail Lock, Domestic Pneumatic Normally Open Clamp Mcp45s, Ventilation-controlled Locking Unit

NUMAX Rail Locks, Domestic Pneumatic Normally Open Clampers MCP45S, Ventilation Control Type Locking Units. Specification Introduction:

Control Method: Pneumatic, Normally Open
Opening Pressure: 0.3MPa
Operating Pressure: 0.6MPa
Response Time: 0.06s
Operating Temperature: 0℃～70℃
Clamping Life: 5000000 cycles
Nominal Size of Applicable Rails: #45

Clamping Force: 2250N;

Installation Steps:

1. Install the clamper on the rail in the unclamped state. For the normally closed type, perform about 10 opening and closing actions with the spacer inserted as it was at the factory, and then install the rail.

2. Temporarily fasten the rail clamper and auxiliary shims (if necessary) to the object such as the slide table to be used. Please use screws with a strength grade of 8.8 or higher, and ensure that the engagement length is at least 0.9 times the nominal diameter of the thread.


3. After repeating the clamping/unclamping action of the rail about 10 times, keep it in the clamped state.

4. Fasten the mounting screws with the specified tightening torque while the rail is clamped.


5. For products with a sealing ring, it is necessary to fasten the sealing ring fixing bolts in the temporarily fastened state.


6. Confirm that the rail clamper does not interfere with the shield base, etc.

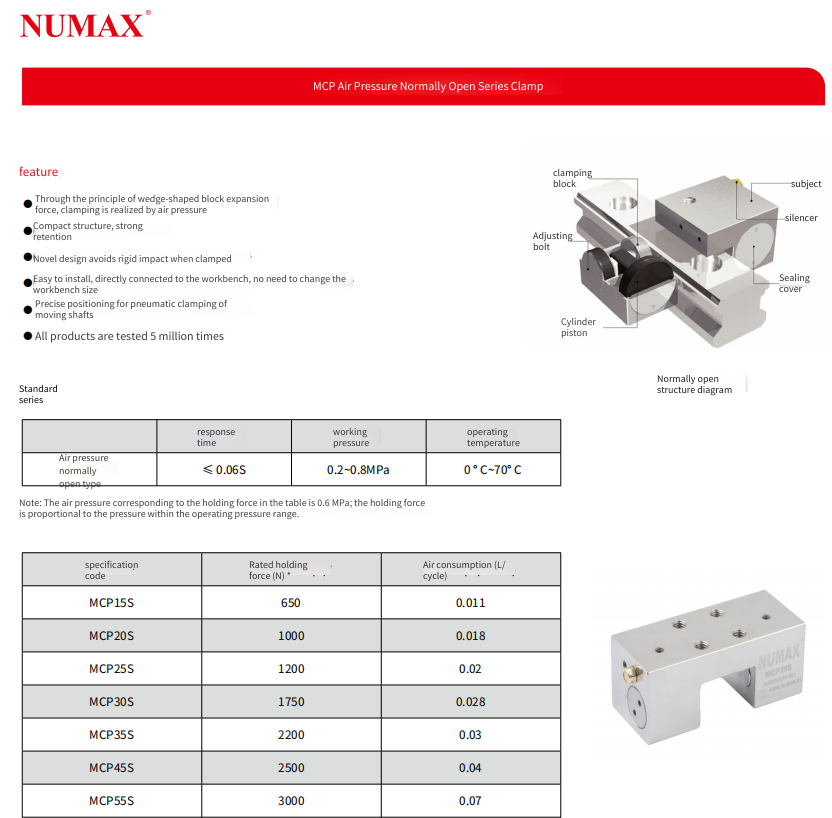

Product Features:

1. Used for fixing slide tables, positioning, and preventing vibration.

2. Normally Open type.
   When the air pressure is on, it clamps the linear rail.
   When the air pressure is off, it releases the clamping.


3. Compact design.


4. It can also be used on square shafts. Please refer to the relevant materials for the hardness and dimensional tolerance of square shafts.


5. Special specification products with different pneumatic connection positions, mounting hole positions, etc. can also be customized.


6. It can be easily assembled into the existing system. There is no need for design changes such as extending the rail length or changing the slide table size.




Compatible Rails:

BBA BR  BRH45A
ABBA BR  BRH45AL
ABBA BR PMK45-10 BRH45B
ABBA BR PMK45-10 BRH45BL
ABBA BR  BRS45B
HIWIN HG(QH) PMK45-12 HGH45CA
HIWIN HG(QH) PMK45-12 HGH45HA
HIWIN HG(QH) PMK45-2 HGW45CC
HIWIN HG(QH) PMK45-2 HGW45HC
HIWIN HG(QH) PMK45-12 QHH45CA
HIWIN HG(QH) PMK45-12 QHH45HA
HIWIN HG(QH) PMK45-2 QHW45CC
HIWIN HG(QH) PMK45-2 QHW45HC
IKO LRX(MX)  LRX
IKO LRX(MX)  LRXC
IKO LRX(MX) PMK45-10 LRXD
IKO LRX(MX) PMK45-10 LRXDC
IKO LRX(MX) PMK45-10 LRXDG
IKO LRX(MX)  LRXG
IKO LRX(MX)  MX
IKO LRX(MX)  MXC
IKO LRX(MX)  MXG
IKO LRX(MX)  MXL
IKO LWE  LWE
IKO LWE  LWES
IKO LWE  LWET
IKO ME  ME
IKO ME  MES
IKO ME  MET
INA TKSD(KUSE)  KWSE
INA TKSD(KUSE)  KWSE45-L
NSK LA  LA45AL
NSK LA PMK45-10 LA45AN
NSK LA  LA45BL
NSK LA PMK45-10 LA45BN
NSK LA  LA45EL
NSK LA  LA45FL
NSK LA  LA45GL
NSK LA  LA45HL
NSK LH PMK45-10 LAH45ANZ
NSK LH PMK45-10 LAH45BNZ
NSK LH  LAH45ELZ
NSK LH  LAH45EMZ
NSK LH  LAH45FLZ
NSK LH  LAH45GLZ
NSK LH  LAH45GMZ
NSK LH  LAH45HLZ
NSK NH  NH45AL
NSK NH PMK45-10 NH45AN
NSK NH  NH45BL
NSK NH PMK45-10 NH45BN
NSK NH  NH45EM
NSK NH  NH45GM
NTN-SNR LGB PMK45-16 LGBCH45BE
NTN-SNR LGB PMK45-16 LGBCH45BL
NTN-SNR LGB PMK45-16 LGBCH45BN
NTN-SNR LGB PMK45-6 LGBCH45FE
NTN-SNR LGB PMK45-6 LGBCH45FL
NTN-SNR LGB PMK45-6 LGBCH45FN
NTN-SNR LGB PMK45-6 LGBCS45BE
NTN-SNR LGB PMK45-6 LGBCS45BL
NTN-SNR LGB PMK45-6 LGBCS45BN
NTN-SNR LGB PMK45-6 LGBCS45BS
NTN-SNR LGB PMK45-16 LGBXH45BE
NTN-SNR LGB PMK45-16 LGBXH45BL
NTN-SNR LGB PMK45-16 LGBXH45BN
NTN-SNR LGB PMK45-6 LGBXH45FE
NTN-SNR LGB PMK45-6 LGBXH45FL
NTN-SNR LGB PMK45-6 LGBXH45FN
NTN-SNR LGB PMK45-6 LGBXS45BE
NTN-SNR LGB PMK45-6 LGBXS45BL
NTN-SNR LGB PMK45-6 LGBXS45BN
NTN-SNR LGB PMK45-6 LGBXS45BS
PMI MSA  MSA45A
PMI MSA  MSA45E
PMI MSA  MSA45LA
PMI MSA  MSA45LE
PMI MSA PMK45-10 MSA45LS
PMI MSA PMK45-10 MSA45S
Rodriguez BR  BRH45A
Rodriguez BR  BRH45AL
Rodriguez BR PMK45-10 BRH45B
Rodriguez BR PMK45-10 BRH45BL
Rodriguez BR  BRS45B
Rollon MR  MRS
Rollon MR  MRS45L
Rollon MR PMK45-10 MRS45LW
Rollon MR PMK45-10 MRS45W
Rollon MR  MRT45LW
Rollon MR  MRT45W
SBC SBG PMK45-2 SBG45FL
SBC SBG PMK45-2 SBG45FLL
SBC SBG PMK45-12 SBG45SL
SBC SBG PMK45-12 SBG45SLL
SBC SBG PMK45-2 SBS45SL
SBC SBG PMK45-2 SBS45SLL
SBC SBI PMK45-6 SBI45FL
SBC SBI PMK45-6 SBI45FLL
SBC SBI PMK45-6 SBI45HL
SBC SBI PMK45-6 SBI45HLL
SBC SBI PMK45-16 SBI45SL
SBC SBI PMK45-16 SBI45SLL
Schneeberger AMSA3B(MR) PMK45-6 AMSA3BW45C
Schneeberger AMSA3B(MR) PMK45-6 AMSA3BW45D
Schneeberger AMSA3L(MR) PMK45-6 AMSA3LW45C
Schneeberger AMSA3L(MR) PMK45-6 AMSA3LW45D
Schneeberger AMSABS3B(MR) PMK45-6 AMSABS3BW45C
Schneeberger AMSABS3B(MR) PMK45-6 AMSABS3BW45D
Schneeberger AMSD3B(MR) PMK45-6 AMSD3BW45C
Schneeberger AMSD3B(MR) PMK45-6 AMSD3BW45D
SKF LLTH  LLTHC45A
SKF LLTH  LLTHC45LA
SKF LLTH PMK45-10 LLTHC45LR
SKF LLTH  LLTHC45LU
SKF LLTH PMK45-10 LLTHC45R
SKF LLTH  LLTHC45U
TBI TR PMK45-6 H-FE
TBI TR PMK45-6 H-FL
TBI TR PMK45-16 H-VE
TBI TR PMK45-16 H-VL
TBI TR PMK45-6 S-FN
TBI TR PMK45-6 S-VE
TBI TR PMK45-6 S-VL
TBI TR PMK45-6 S-VN
THK HSR  HSR45A
THK HSR  HSR45B
THK HSR  HSR45CA
THK HSR  HSR45CB
THK HSR  HSR45HA
THK HSR  HSR45HB
THK HSR  HSR45LA
THK HSR  HSR45LB
THK HSR PMK45-10 HSR45LR
THK HSR PMK45-10 HSR45R
THK HSR PMK45-10 HSR45YR
THK HSV  HSV45C
THK HSV PMK45-10 HSV45R
THK NR  NR45A
THK NR  NR45B
THK NR  NR45LA
THK NR  NR45LB
THK NR  NR45LR
THK NR  NR45R
THK NRS  NRS45A
THK NRS  NRS45B
THK NRS  NRS45LA
THK NRS  NRS45LB
THK NRS  NRS45LR
THK NRS  NRS45R
THK SHS PMK45-6 SHS45C
THK SHS PMK45-6 SHS45LC
THK SHS PMK45-16 SHS45LR
THK SHS PMK45-6 SHS45LV
THK SHS PMK45-16 SHS45R
THK SHS PMK45-6 SHS45V
THK SNR  SNR45C
THK SNR PMK45-8 SNR45CH
THK SNR  SNR45LC
THK SNR PMK45-8 SNR45LCH
THK SNR  SNR45LR
THK SNR PMK45-18 SNR45LRH
THK SNR  SNR45R
THK SNR PMK45-18 SNR45RH
THK SNS  SNS45C
THK SNS PMK45-8 SNS45CH
THK SNS  SNS45LC
THK SNS PMK45-8 SNS45LCH
THK SNS  SNS45LR
THK SNS PMK45-18 SNS45LRH
THK SNS  SNS45R
THK SNS PMK45-18 SNS45RH
THK SR  SR45TB
THK SR  SR45W
THK SVR  SVR45C
THK SVR PMK45-8 SVR45CH
THK SVR  SVR45LC
THK SVR PMK45-8 SVR45LCH
THK SVR  SVR45LR
THK SVR PMK45-18 SVR45LRH
THK SVR  SVR45R
THK SVR PMK45-18 SVR45RH
THK SVS  SVS45C
THK SVS PMK45-8 SVS45CH
THK SVS  SVS45LC
THK SVS PMK45-8 SVS45LCH
THK SVS  SVS45LR
THK SVS PMK45-18 SVS45LRH
THK SVS  SVS45R
THK SVS PMK45-18 SVS45RH
HIWIN HG(QH) PMK45-2 HGL45CA
HIWIN HG(QH) PMK45-2 HGL45HA
HIWIN HG(QH) PMK45-2 HGW45CA
HIWIN HG(QH) PMK45-2 HGW45HA
HepcoMotion HLG  HLG45F
HepcoMotion HLG  HLG45FL
HepcoMotion HLG PMK45-10 HLG45R
HepcoMotion HLG PMK45-10 HLG45RL
HIWIN HG(QH) PMK45-2 QHW45CA
HIWIN HG(QH) PMK45-2 QHW45HA
IKO LRX(MX) PMK45-10 MXDC
IKO LRX(MX)  MXS
IKO LWH(MH) PMK45-2 LWH45B
IKO LWH(MH) PMK45-12 LWHD45B
IKO LWH(MH) PMK45-12 LWHDG
IKO LWH(MH) PMK45-12 LWHD45M
IKO LWH(MH) PMK45-2 LWHG
IKO LWH(MH) PMK45-2 LWH45M
IKO LWH(MH) PMK45-2 LWHT45B
IKO LWH(MH) PMK45-2 LWHTG
IKO LWH(MH) PMK45-2 LWHT45M
IKO LWH(MH) PMK45-12 LWHY
IKO LWH(MH) PMK45-2 MH
IKO LWH(MH) PMK45-12 MHD
IKO LWH(MH) PMK45-12 MHDG
IKO LWH(MH) PMK45-2 MHG
IKO LWH(MH) PMK45-2 MHT
IKO LWH(MH) PMK45-2 MHTG
Thomson 421 PMK45-6 41145A
Thomson 421 PMK45-6 41145B
Thomson 421 PMK45-6 41145C
Thomson 421 PMK45-6 41145D

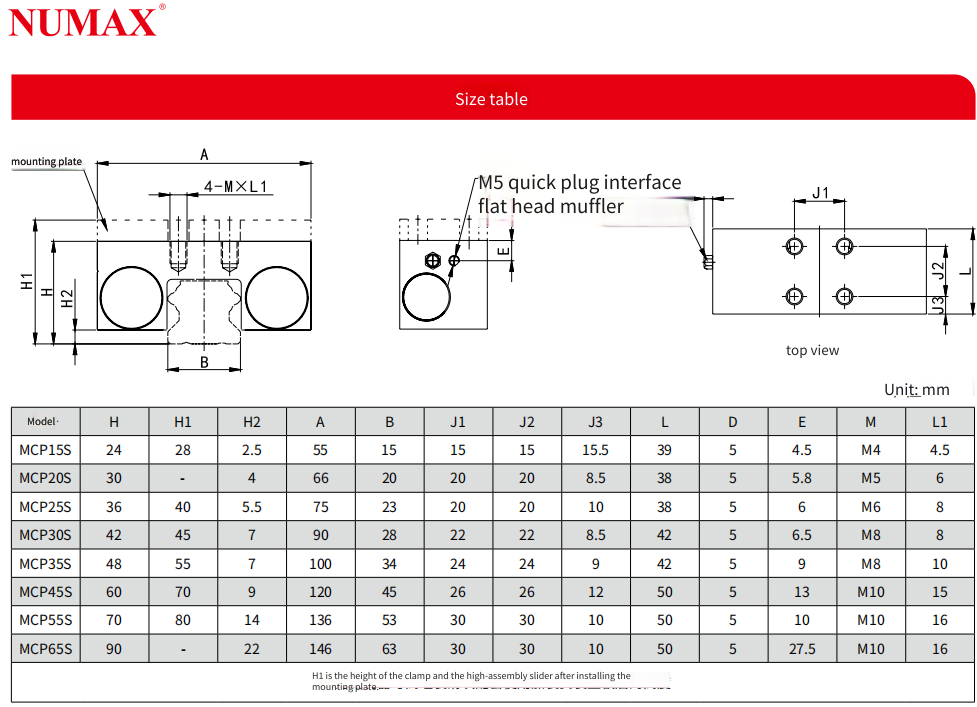

NUMAX Rail Lock, Domestic Pneumatic Normally Open Clamp MCP45S, Ventilation Control Locking Unit, Installation Dimensions:
