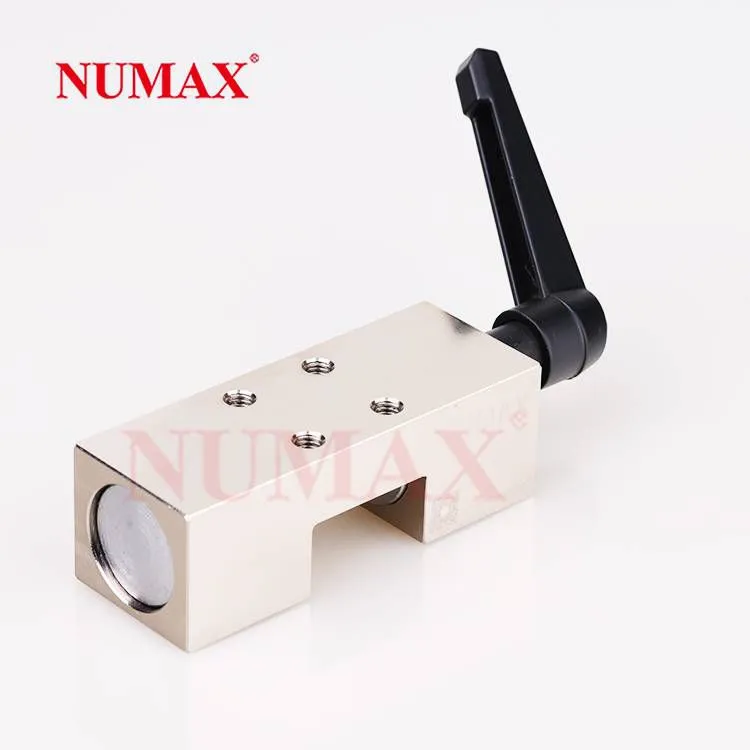

Linear guideway Kulangba Manual control type clamp MHK5501A, domestic manual guideway lock. Product features:
Plastic clamping rod: Can be freely adjusted (lift to separate)
Jaw: Floating installation ensures symmetrical force transmission.
Shell: Chemically nickel-plated steel material.

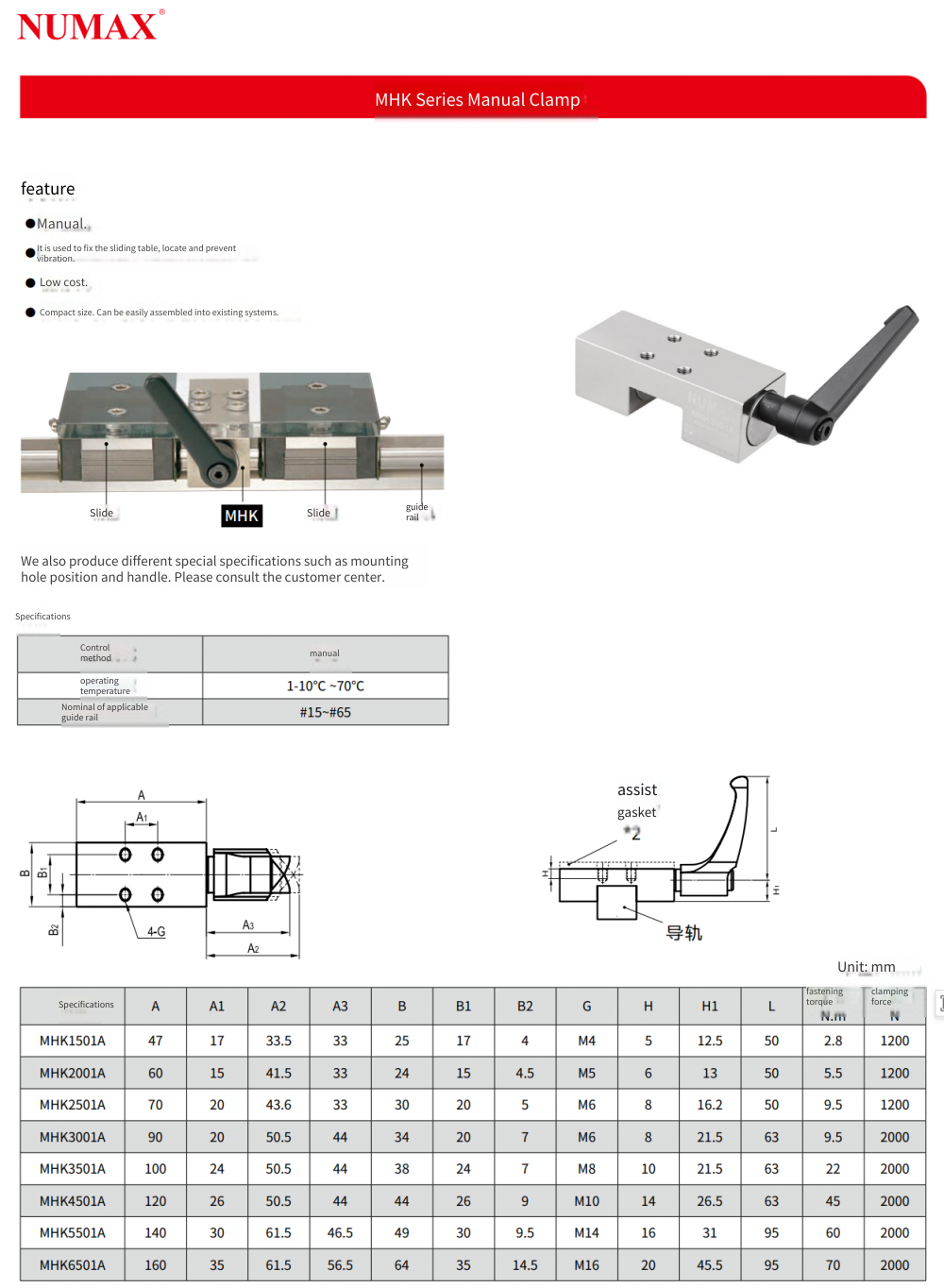

Product description and technical specifications:
A wide range of product types, suitable for common profiled guideways of many brand linear guides.
Can be opened and closed without tools (bistable);
Maintenance-free by rotating the clamping rod;
Up to 50,000 static clamping cycles.
Control method: Manual;
Operating temperature: -10 to +50 degrees;
Nominal size of applicable guideways: 15 to 35;
Material: The main body is equivalent to SCr415, electroless nickel-plated; the handle is nylon 6 (matte black)
Applicable linear guideway specifications:
PMI MSA MSA55A
PMI MSA MSA55E
PMI MSA MSA55LA
PMI MSA MSA55LE
PMI MSA PMK55-7 MSA55LS
PMI MSA PMK55-7 MSA55S
PMI MSB PMK55-4 MSB55E
PMI MSB PMK55-4 MSB55LE
PMI MSB PMK55-4 MSB55LS
PMI MSB PMK55-4 MSB55S
PMI MSB PMK55-4 MSB55TE
PMI MSB PMK55-4 MSB55TS
THK HSR HSR55A
THK HSR HSR55AM
THK HSR HSR55B
THK HSR HSR55BM
THK HSR HSR55C
THK HSR HSR55CA
THK HSR HSR55CAM
THK HSR HSR55CB
THK HSR HSR55CBM
THK HSR HSR55HA
THK HSR HSR55HAM
THK HSR HSR55HB
THK HSR HSR55HBM
