Domestic Numax Guide Rail, Kulangbar Pneumatically Controlled Normally Open Clamp Mcp20s, Pressure-applied Locking Brake

Domestic NUMAX guide rail, KULONGBAR pneumatic control normally open clamp MCP20S, pressure-locking brake. Material description:

Main body: equivalent to SCr415 electroless nickel plating;
Air filter: brass;
Contact surface: equivalent to SUJ2;
Adjusting bolt: equivalent to SUJ2;
Cover: SUS303

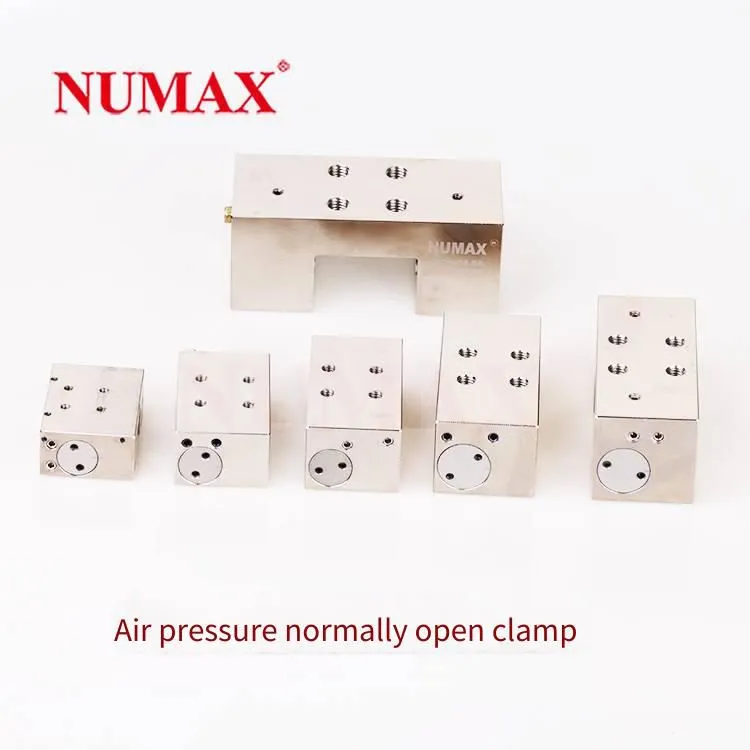

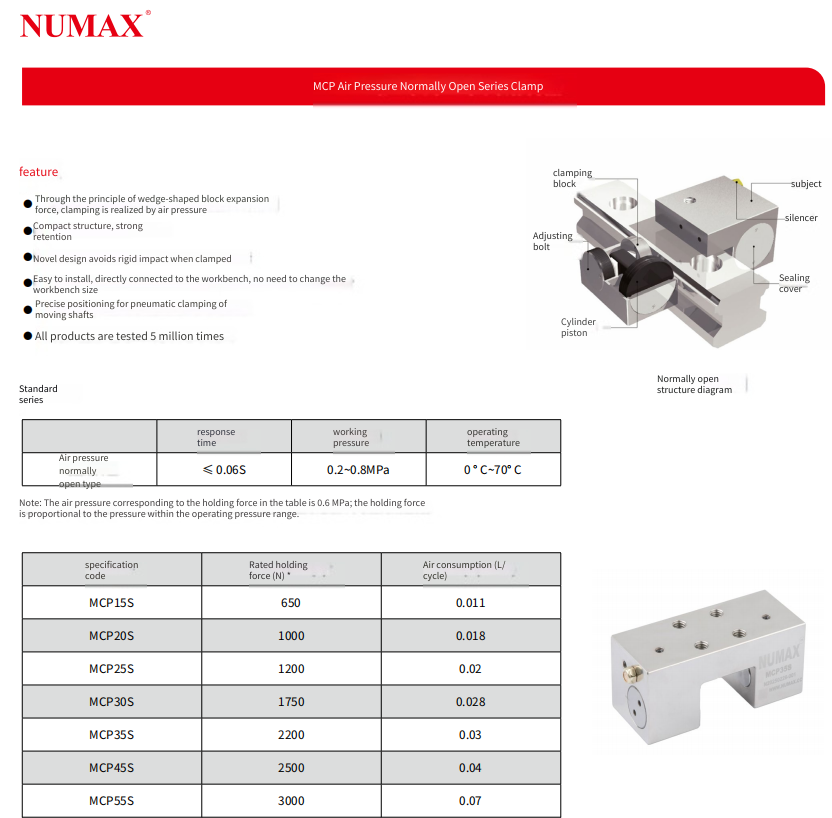

Product features:

1. Used for fixing sliding tables, positioning, and preventing vibration.

2. It is a normally open type.
   When the air pressure is on, it clamps the linear guide rail.
   When the air pressure is off, the clamping is released.

3. Compact design.

4. It can also be used on square shafts. Please refer to the relevant materials for the hardness and dimensional tolerance of the square shaft.

5. Special specification products with different air pressure connection positions and mounting hole positions can also be customized.

6. It can be easily assembled into the existing system. There is no need to make design changes such as extending the guide rail length or changing the size of the sliding table.

Specification introduction:
Control method: pneumatic, normally open
Opening pressure: 0.3MPa
Working pressure: 0.6MPa
Response time: 0.06s
Working temperature: 0℃～70℃
Clamping life: 5000000 times
Nominal size of applicable guide rails: #20～#65

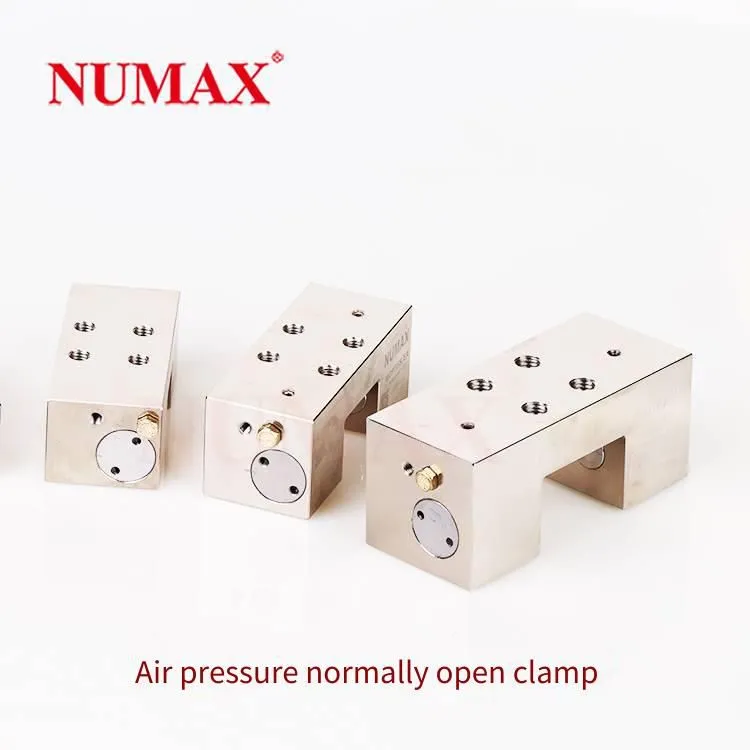

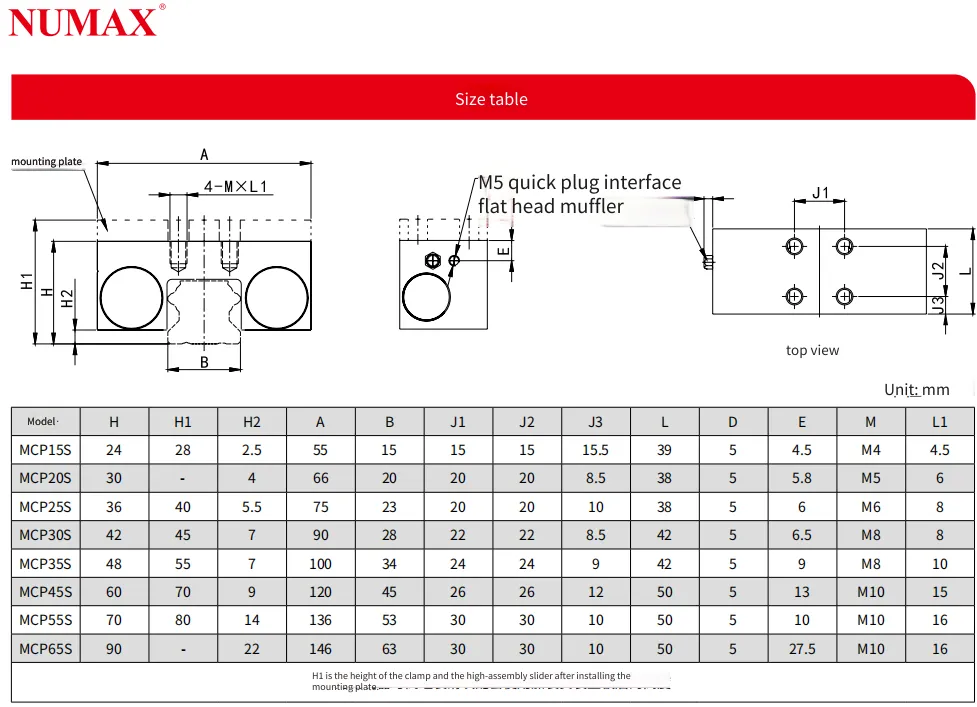

Installation dimensions:
