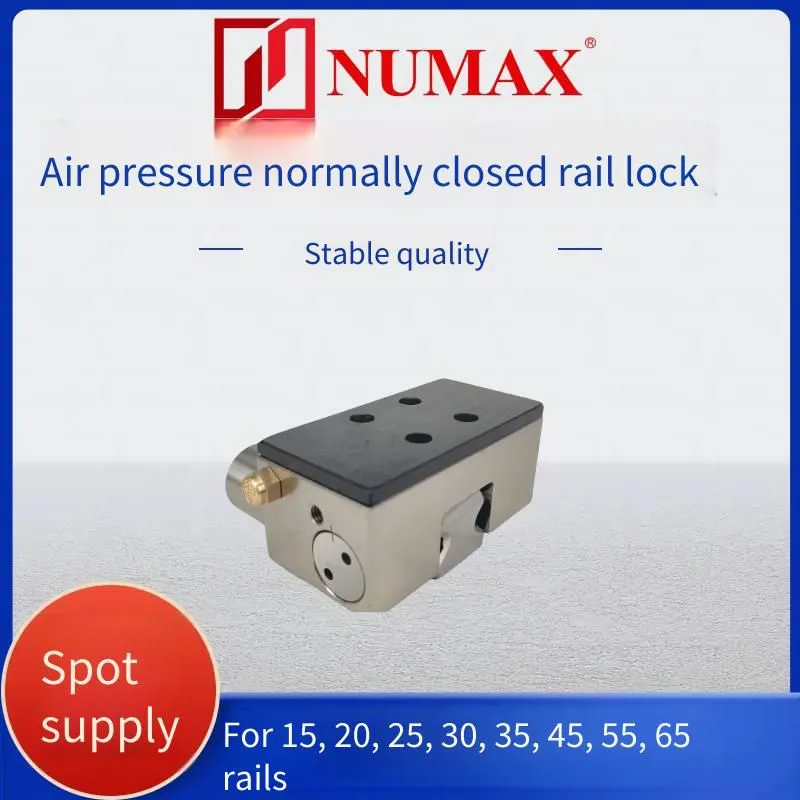

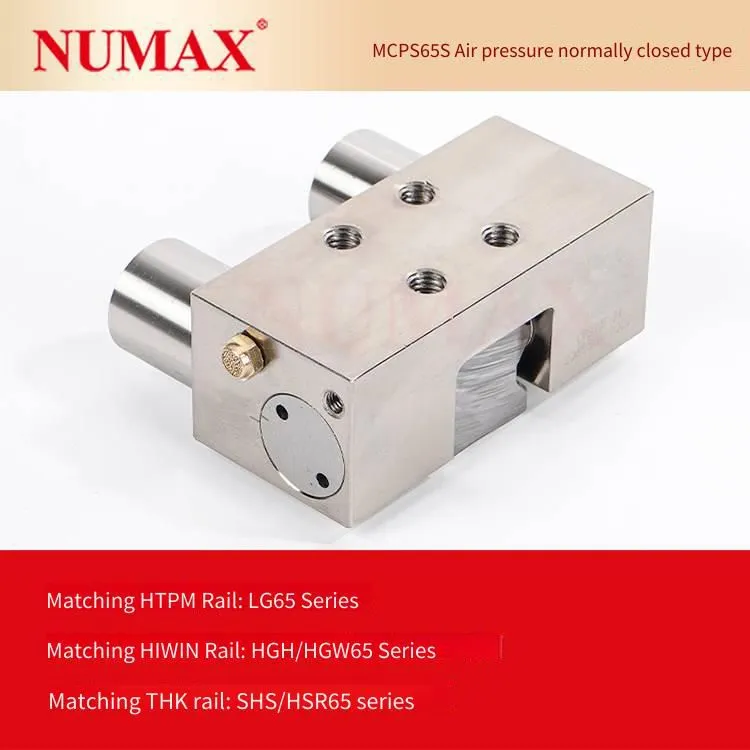

Domestic guide rail brake MCPS65S, pneumatic normally-closed clamp, linear guide rail braking unit. Product specifications:
Control method: Pneumatic, normally-closed
Opening pressure: 0.55MPa
Working pressure: 0.65MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Nominal size of applicable guide rails: #12～#65
Main body material: Equivalent to SCr415 electroless nickel plating.
Domestic guide rail brake MCPS65S, pneumatic normally-closed clamp, linear guide rail braking unit. Installation steps:
First, install the guide rail KULONBA on the guide rail in the state of releasing the clamping. For the normally-closed type, perform about 10 opening and closing actions with the spacer inserted at the time of factory shipment, and then install the guide rail.
Then, temporarily fasten the guide rail KULONBA and the auxiliary gasket (if necessary) on the object such as the sliding table to be used. Screws with a strength grade of 8.8 or above should be used, and ensure that the engagement length is more than the nominal diameter of the thread × 0.9.
Next, after repeating the action of clamping/releasing the clamping of the guide rail about 10 times, keep it in the clamping state.
In the state of clamping the guide rail, fasten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
For products with a sealing ring, fasten the sealing ring fixing bolts in the temporarily fastened state.
Confirm that there is no interference between the guide rail KULONBA and the shield base, etc.
-
The MKS has a spacer clamped between the contact surfaces at the time of factory shipment. Do not remove the spacer except during installation. If it is left for a long time with the spacer removed, the MKS may fail to operate.

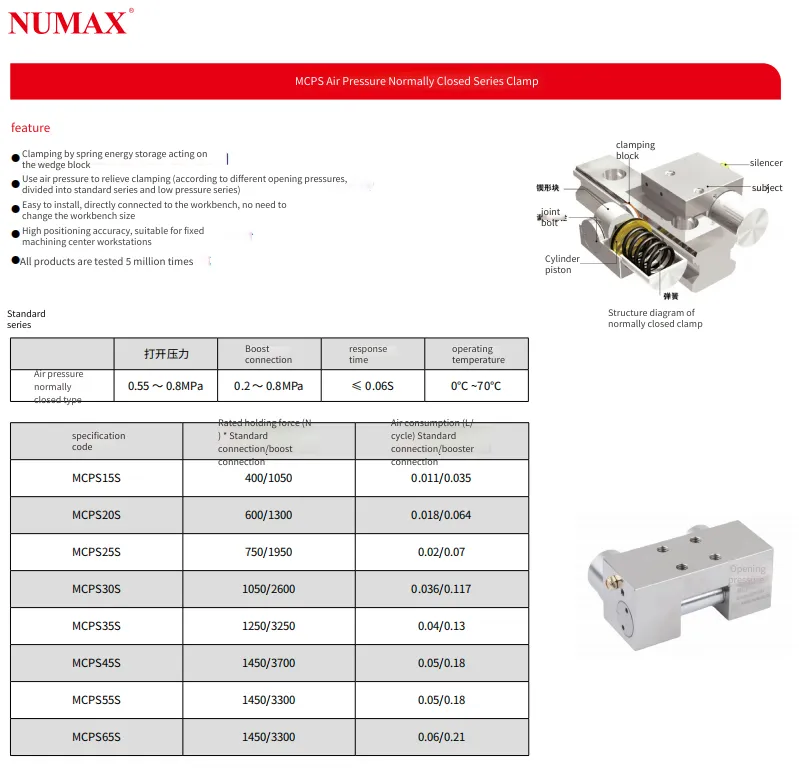

Domestic guide rail brake MCPS65S, pneumatic normally-closed clamp, linear guide rail braking unit. Product features:
1. Used for fixing the sliding table, positioning and preventing vibration.
2. It is a normally-closed (Normally Closed) type.
That is, when supplying air: Release the clamping. When exhausting air: Clamp the linear guide rail by the force of the spring.
The opening pressure is 0.3MPa
3. Compact design.
It can also be used on square shafts. Please refer to the following pages for the hardness and dimensional tolerance of the square shaft.
Installation dimensions
It can be simply assembled into the existing system. There is no need to make design changes such as extending the guide rail length or changing the sliding table size.

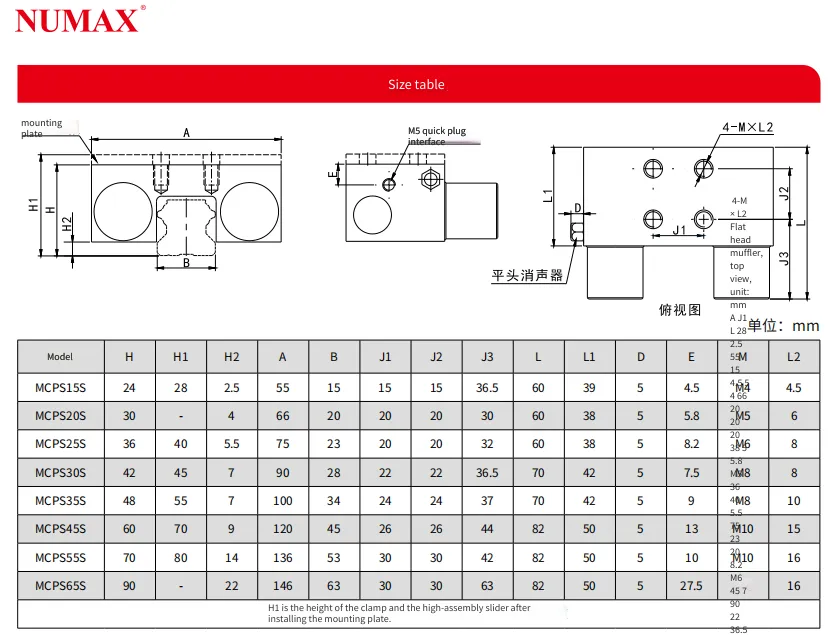

Installation dimensions:
