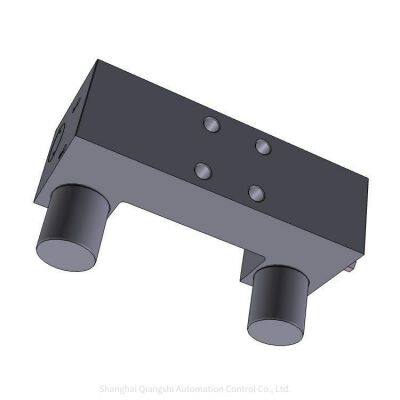

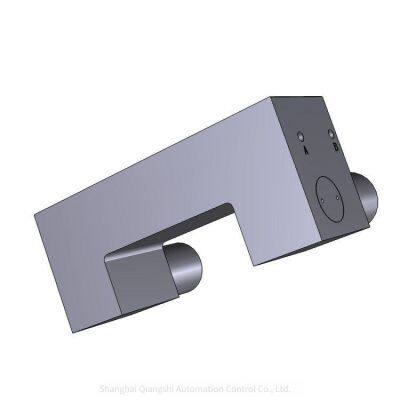

Linear guide rail lock, imported German ZIMMER pneumatic normally closed NC clamping pliers MKS8501A, product specifications:
Control method: Pneumatic, normally closed
Opening pressure: 0.55MPa
Working pressure: 0.65MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Nominal size of applicable guide rail: #12～#85
Main body material: Equivalent to SCr415 electroless nickel plating.
Linear guide rail lock, imported German ZIMMER pneumatic normally closed NC clamping pliers MKS8501A, installation steps:
First, install the guide rail Ku Langba on the guide rail in the state of releasing the clamping. For the normally closed type, perform about 10 opening and closing actions with the spacer inserted at the time of shipment, and then install the guide rail.
Then temporarily fasten the guide rail Ku Langba and the auxiliary gasket (if necessary) on the object such as the sliding table to be used. Screws with a strength grade of 8.8 or higher should be used, and the engagement length should be at least 0.9 times the nominal diameter of the thread.
Next, after repeating the actions of clamping/releasing the guide rail about 10 times, keep it in the clamping state.
In the state of clamping the guide rail, fasten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
For products with a sealing ring, fasten the sealing ring fixing bolt in the temporarily fastened state.
Confirm that the guide rail Ku Langba does not interfere with the shield base, etc.
The MKS has a spacer clamped between the contact surfaces at the time of shipment. Do not remove the spacer except during installation. If it is left in the state of removing the spacer for a long time, it may cause the MKS to fail to operate.
Linear guide rail lock, imported German ZIMMER pneumatic normally closed NC clamping pliers MKS8501A, product features:
1. Used for fixing the sliding table, positioning and preventing vibration.
2. It is a normally closed (Normally Closed) type.
That is, when supplying air: Release the clamping. When exhausting: Clamp the linear guide rail by the force of the spring.
The opening pressure is 0.3MPa
3. Compact design.
It can also be used on square shafts. Please refer to the following pages for the hardness and dimensional tolerance of the square shaft.
Installation dimensions
It can be easily assembled into the existing system. There is no need to make design changes such as extending the guide rail length or changing the sliding table size.

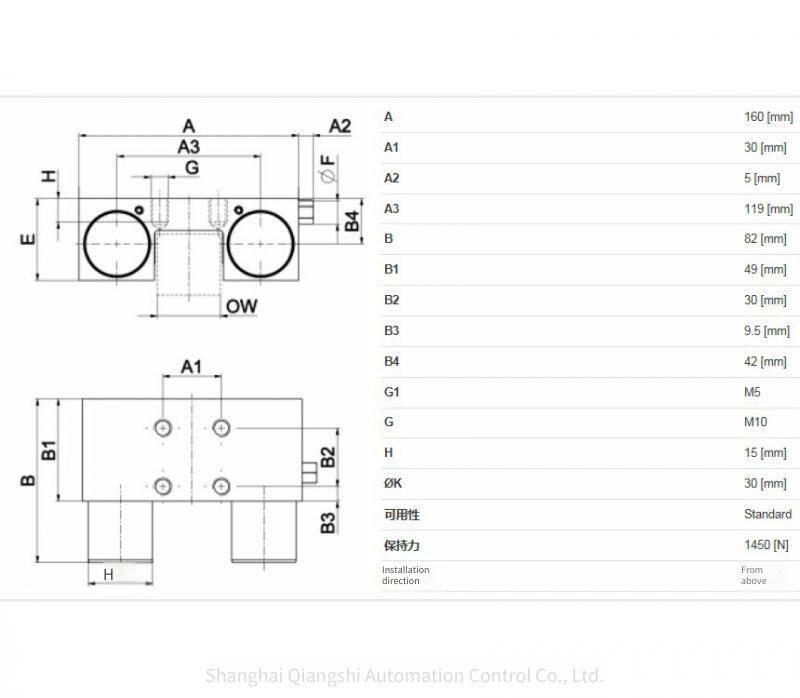

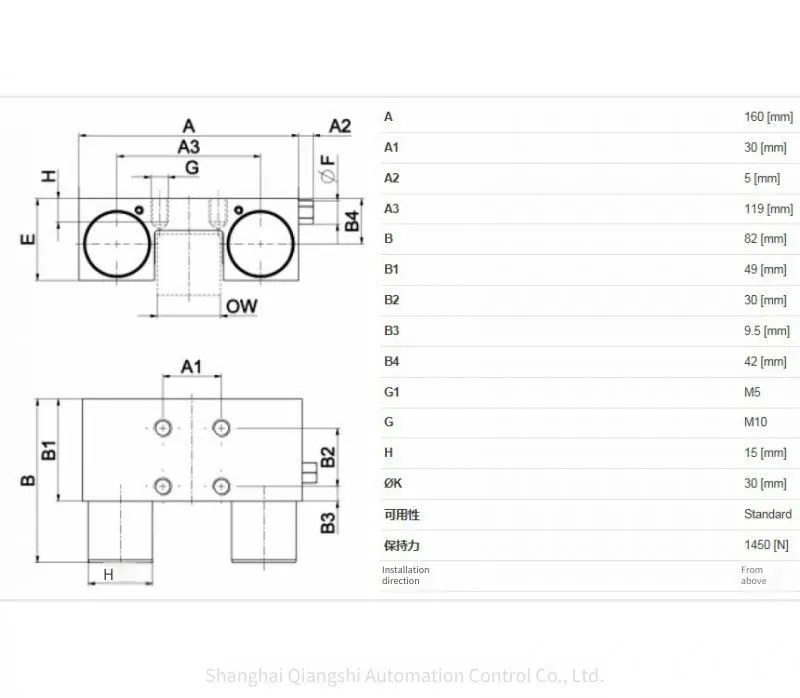

Installation dimensions:
Compatible rails:
THK NR NR85A
THK NR NR85B
THK NR NR85LA
THK NR NR85LB
THK NR NR85LR
THK NR NR85R
THK NRS NRS85A
THK NRS NRS85B
THK NRS NRS85LA
THK NRS NRS85LB
THK NRS NRS85LR
THK NRS NRS85R
THK SNR SNR85LC
THK SNR SNR85LR
THK SNS SNS85LC
THK SNS SNS85LR
