Help CenterNitto 20ph Imported Nitto Kohki Quick Couplings, Plugs for 1/4 Hose Installation
Related Products
-
1/2 Male Thread Connector, Female Connector 40sm, Imported Nitto Kohki Compressed Air ConnectorUS$ 11.69 - 12.15MOQ: 10 Pieces -
Imported Japanese Nitto Pneumatic Quick Connector, 3/8 External Thread Connecting 30sm, Quick Female ConnectorUS$ 10.15 - 10.62MOQ: 10 Pieces
-
Domestic Gas - Cut-off Clamping Device, Clamping Block for Optical Shaft Mkrs4000a, Numax ClampUS$ 378.46MOQ: 1 Piece
-
Imported Optical Axis Brake Lock, Japanese Nbk Clamp, Pneumatically Controlled Normally Closed Type Mkrs-1600-aUS$ 378.46 - 383.08MOQ: 1 Piece
-
Normally Closed Pneumatically Controlled Guideway Lock, Locking Device for φ25 Linear Optical Axis, Numax Clamping Pliers Mkrs2500aUS$ 244.62MOQ: 1 Piece
From the air piping in the factory to the hose connection of pneumatic tools, it is a coupler with excellent versatility.
It is an excellent coupler.
Important components are quenched to improve strength. It is particularly excellent in wear resistance and durability.
It also offers a variety of sizes and mounting forms to meet a wide range of pneumatic applications.
Applicable fluid: Air
Body shape: Plug
Valve structure: No valve (with socket valve)
Body material: Steel
Seal material: None
Operating pressure: 1.5MPa
Pressure resistance: 2.0MPa
Operating temperature range: Conforms to the socket
Mounting shape and size: Hose nipple for 1/4" hose
Nitto 20PH Imported Nitto Kohki Nitto Seiko Quick Coupling, Plug for 1/4 Hose Installation, Product Features:
From the air piping in the factory to the hose connection of pneumatic tools, it is a quick coupling with excellent versatility.
It is made of steel for air, brass and stainless steel for water. Here, please note the fluid outflow from the plug side during separation.
Important components made of steel are heat-treated to improve strength. It is particularly excellent in wear resistance and durability.
The standardization of the body material, size and mounting shape can meet a wide range of pneumatic applications.

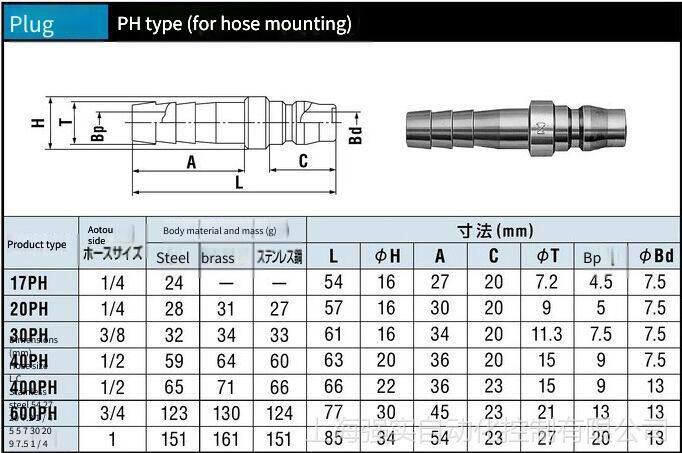

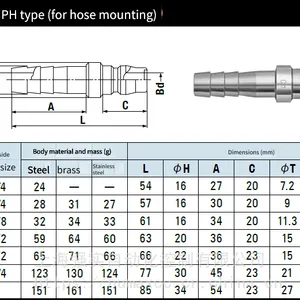

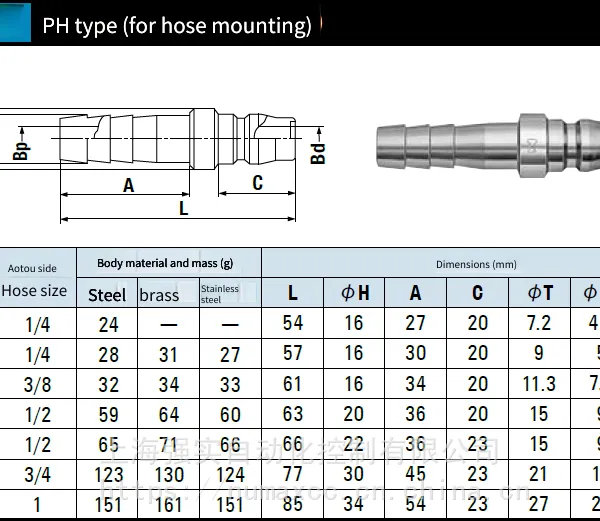

Nitto 20PH Imported nitto kohki Nitto Seiko Quick Coupling Plug for 1/4 Hose Installation, Detailed Dimensions:

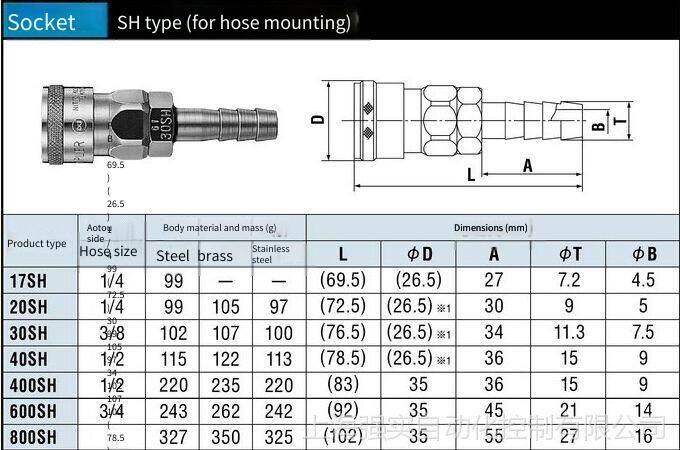

Corresponding Sleeve, Model No. 40SH, Specific Dimensions:
