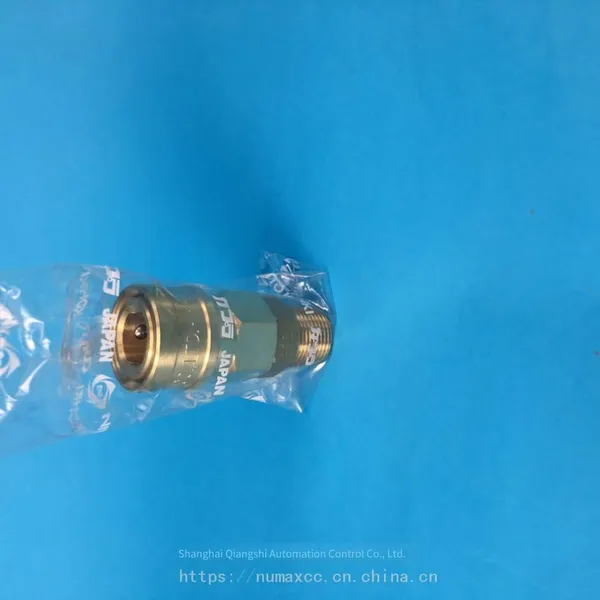

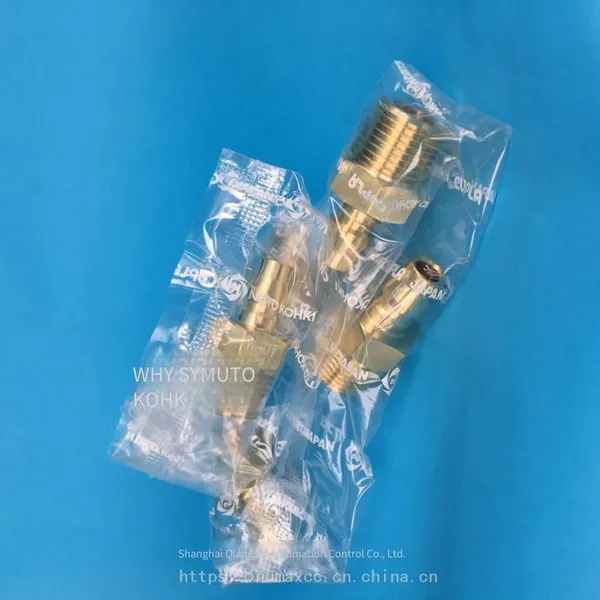

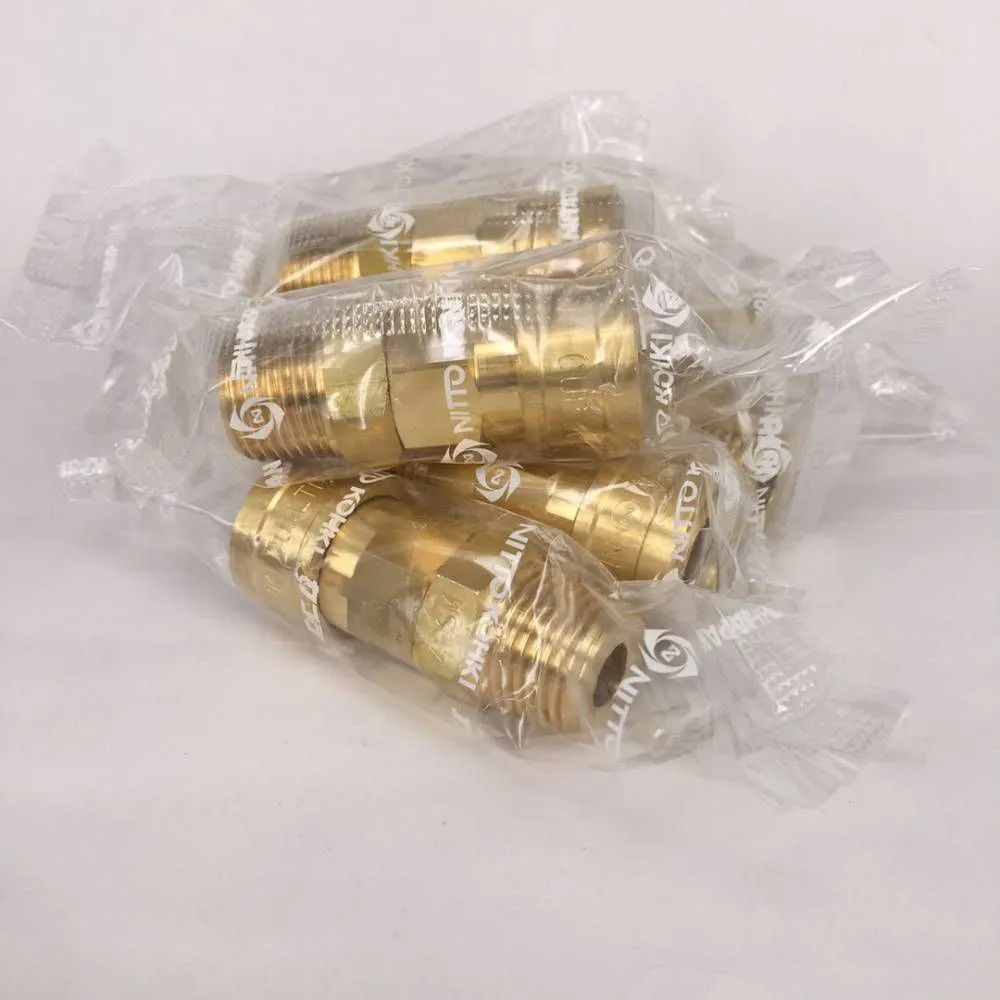

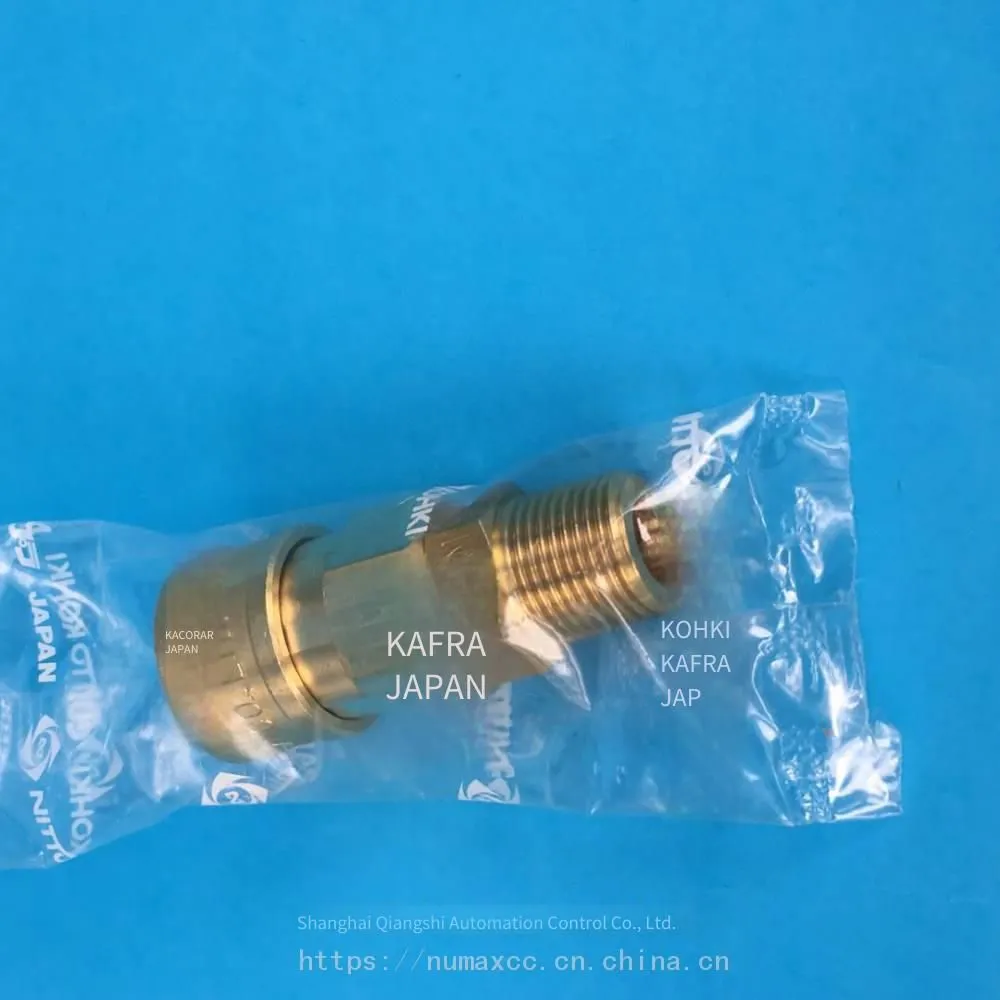

1/2 External thread female connector 40SM Imported NITTO KOHKI compressed air connector, Product features:
It is a highly versatile quick connector used for air piping in the production workshop and hose connection of air tools.
It is made of steel for air applications, brass and stainless steel for water applications. Here, please note the fluid outflow from the plug side when disconnecting.
The important components made of steel are heat-treated to improve strength. In particular, it has excellent wear resistance and durability.
The standardization of the main body material, size and installation shape can meet a wide range of pneumatic applications.
1/2 External thread female connector 40SM Imported NITTO KOHKI compressed air connector, Specifications:
Material: Steel (chrome-plated), brass, stainless steel;
Installation size: R1/8 - R1; Rc1/4 - Rc1; G1/4
Working pressure: 1.5MPa (15kgf/cm2) for steel (chrome-plated) and stainless steel; 1.0MPa (10kgf/cm2) for brass;
Sealing material and operating temperature range: Nitrile rubber (-20 to +80 degrees); Fluorine rubber (-20 to +180 degrees)

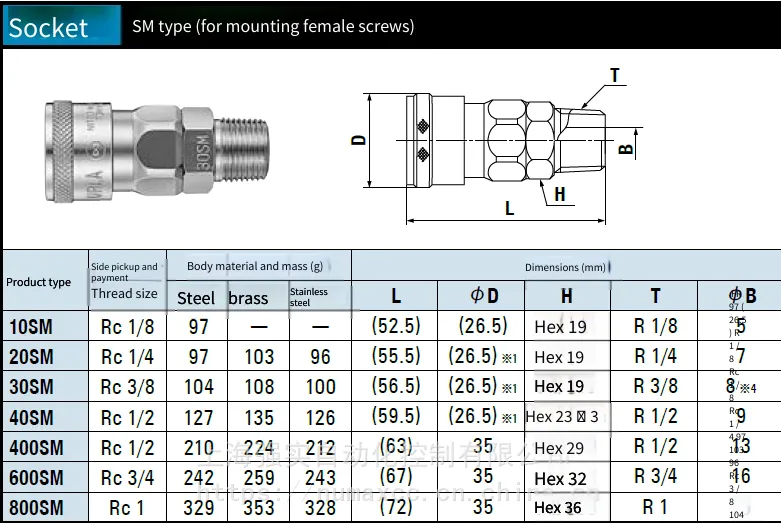

Other specifications of the sleeve for internal thread installation of the 1/2 external thread female connector 40SM Imported NITTO KOHKI compressed air connector are as follows:
10SM: Rc1/8"
20SM: Rc1/4"
30SM: Rc3/8"
400SM: Rc1/2"
600SM: Rc3/4"
800SM: Rc1"
