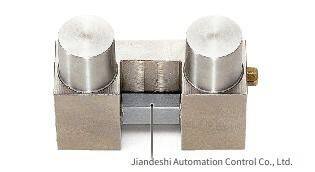

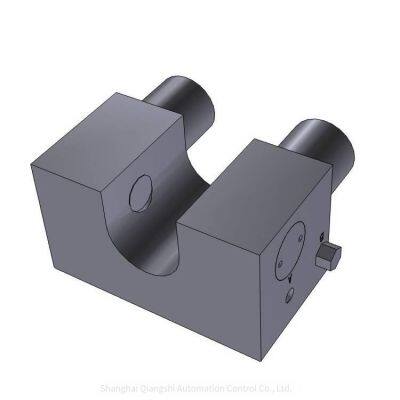

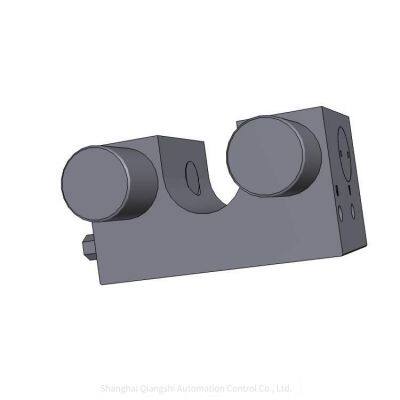

Imported optical axis brake lock, Japanese NBK clamp, pneumatically controlled normally closed type MKRS-1600-A. Product features:
1. For linear axes.
2. Used for fixing sliding tables, positioning and preventing vibration.
3. It is a normally closed type.
When supplying air: Release the clamping.
When exhausting air: Clamp the shaft by the force of the spring.
4. It can also be used on linear axes and circular axes.
Imported optical axis brake lock, Japanese NBK clamp, pneumatically controlled normally closed type MKRS-1600-A. Specification description:
1. Control method: Pneumatic, normally closed;
2. Opening pressure:
MKRS-03: 0.3MPa;
MKRS-04: 0.4MPa;
MKRS: 0.55MPa
3. Allowed working pressure: 0.6MPa
4. Response time: 0.06s
5. Clamping service life: 15 million times
6. Operating temperature: 0℃～70℃
Applicable shaft diameter: φ12mm～φ60mm.
Imported optical axis brake lock, Japanese NBK clamp, pneumatically controlled normally closed type MKRS-1600-A. Technical parameters:
Main body: Equivalent to SCr415 (alloy steel), electroless nickel plating;
Air filter: Brass
Contact surface: Equivalent to SUJ2, no surface treatment
Adjusting bolt: Equivalent to SUJ2, no surface treatment

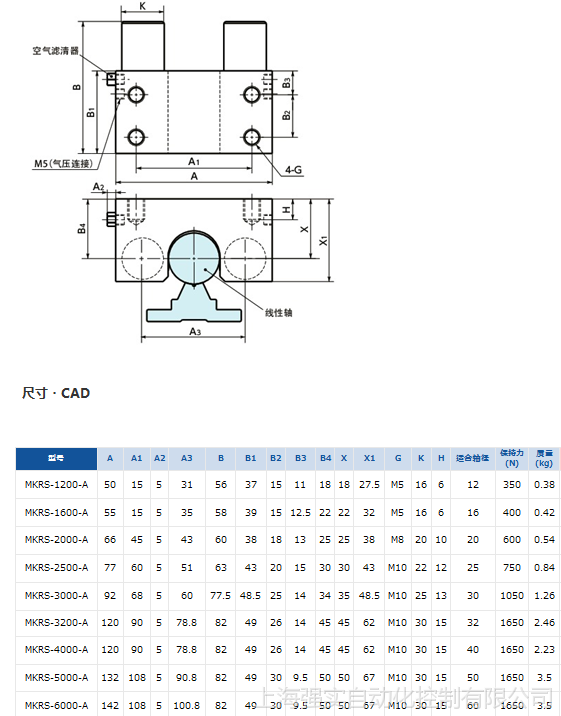

Other specifications and dimensions:
MKRS-1200-A (Suitable for shaft diameter of 12mm)
MKRS-1600-A (Suitable for shaft diameter of 16mm)
MKRS-2000-A (Suitable for shaft diameter of 20mm)
MKRS-2500-A (Suitable for shaft diameter of 25mm)
MKRS-3200-A (Suitable for shaft diameter of 32mm)
MKRS-4000-A (Suitable for shaft diameter of 40mm)
MKRS-5000-A (Suitable for shaft diameter of 50mm)
MKRS-6000-A (Suitable for shaft diameter of 60mm)
Precautions:
When MKRS leaves the factory, there is a spacer between the contact surfaces. Do not remove the spacer except during installation. If it is left for a long time with the spacer removed, MKRS may fail to operate.
