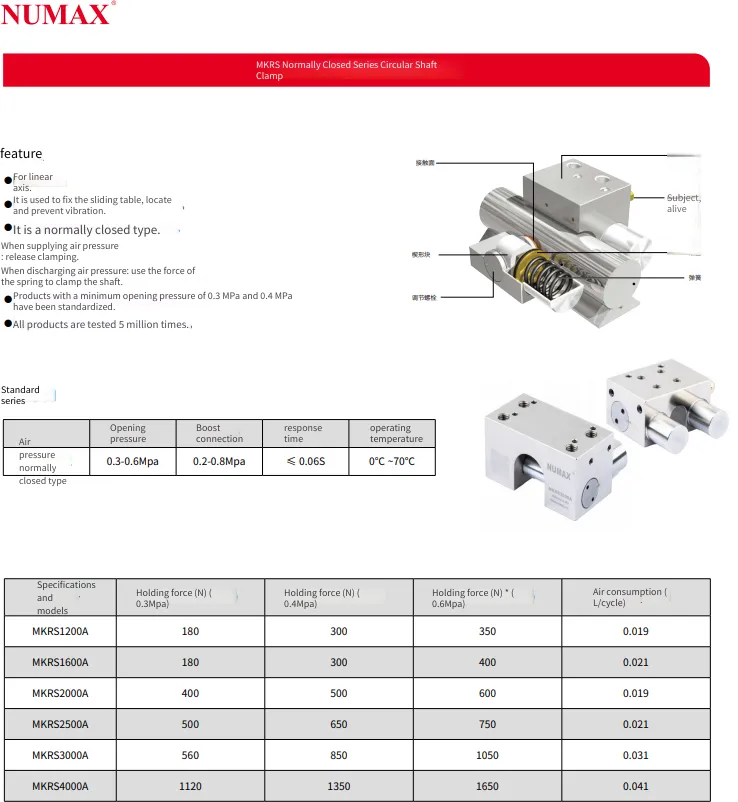

Domestic KULONBA for NUMAX optical axis, pneumatic normally-closed type air-break clamping device MKRS4000A, optical axis clamp. Specification description:
Control method: Pneumatic, normally-closed
Opening pressure: 0.3MPa, 0.4MPa, 0.55MPa
Operating pressure: 0.65MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Applicable shaft diameter: φ12mm～φ60mm
Applicable shaft hardness: Above 54HRC
Allowable dimensional deviation of applicable shaft diameter: -0.01mm～0mm
Main body material: Equivalent to SCr415, electroless nickel plating.
Optical axis clamp, product features:
For linear shafts.
Used for fixing sliding tables, positioning, and preventing vibrations.
It is a normally-closed (Normally Closed) type.
When air pressure is supplied: The clamping is released.
When air pressure is discharged: The shaft is clamped by the force of the spring.Products with opening pressures of 0.3MPa and 0.4MPa have been standardized.
-
It can also be used on linear shafts and circular shafts.
Installation precautions for the optical axis clamp:
1. First, install the guide rail KULONBA on the guide rail in the state of releasing the clamping. For the normally-closed type, with the spacer inserted at the factory, perform about 10 opening and closing actions, and then install the guide rail.
2. Then temporarily fasten the guide rail KULONBA and the auxiliary gasket (if necessary) on the object such as the sliding table to be used. Screws with a strength grade of 8.8 or above need to be used, and ensure that the engagement length is more than 0.9 times the nominal diameter of the thread.
3. Next, after repeating the action of clamping/releasing the clamping of the guide rail about 10 times, keep it in the clamping state.
4. In the state of clamping the guide rail, fasten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
5. For products with sealing rings, fasten the sealing ring fixing bolts in the temporarily fastened state.
6. Confirm that the guide rail KULONBA does not interfere with the shield base, etc.
7. At the factory, a cushion block is sandwiched between the contact surfaces of MKRS. Do not remove the cushion block except during installation. If it is left in the state of removing the cushion block for a long time, it may cause MKRS to fail to operate.
Piping instructions:
Shaft diameter φ12, thread size is M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ16, thread size is M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ20, thread size is M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ25, thread size is M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ30, thread size is M5, air consumption: 0.031L/cycle (ANR)
Shaft diameter φ40, thread size is M5, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ50, thread size is M5, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ60, thread size is M5, air consumption: 0.041L/cycle (ANR)
Installation dimensions:
