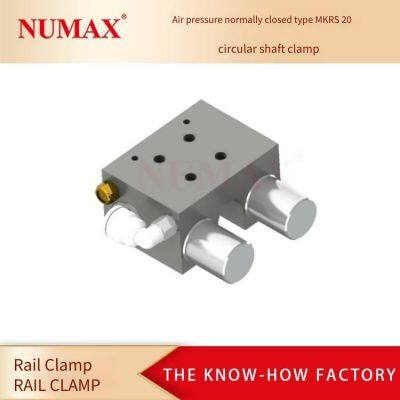

Normally closed pneumatically controlled guide rail lock. Locking device for φ25 linear optical axis. NUMAX clamping pliers MKRS2500A, specification description:
Control method: Pneumatic, normally closed
Opening pressure: 0.3MPa, 0.4MPa, 0.55MPa
Operating pressure: 0.65MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Applicable shaft diameter: φ12mm～φ60mm
Applicable shaft hardness: Above 54HRC
Allowable dimensional deviation of applicable shaft diameter: -0.01mm～0mm
Main body material: Equivalent to SCr415, electroless nickel plating.

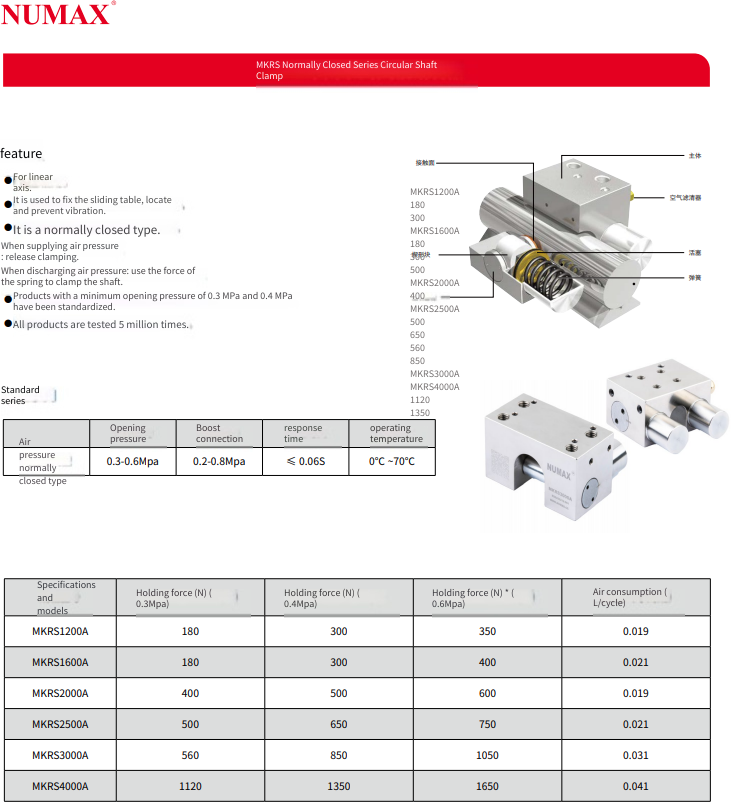

Optical axis clamp, product features:
For linear shafts.
Used for fixing sliding tables, positioning and preventing vibration.
It is a normally closed (Normally Closed) type.
When air pressure is supplied: Clamping is released.
When air pressure is discharged: The shaft is clamped by the force of the spring.Products with opening pressures of 0.3MPa and 0.4MPa have been standardized.
It can also be used on linear shafts and circular shafts.
Installation precautions:
1. First, install the guide rail KULUNBA in the unclamped state on the guide rail. For the normally closed type, with the spacer inserted at the factory, perform about 10 opening and closing actions, and then install the guide rail.
2. Then temporarily fasten the guide rail KULUNBA and the auxiliary gasket (if necessary) on the object such as the sliding table to be used. Screws with a strength grade of 8.8 or above should be used, and the engagement length should be at least 0.9 times the nominal diameter of the thread.
3. Next, after repeating the action of clamping/unclamping the guide rail about 10 times, keep it in the clamped state.
4. With the guide rail clamped, tighten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
5. For products with sealing rings, tighten the sealing ring fixing bolts in the temporarily fastened state.
6. Make sure that the guide rail KULUNBA does not interfere with the shield base, etc.
7. MKRS comes with a spacer between the contact surfaces at the factory. Do not remove the spacer except during installation. If it is left for a long time with the spacer removed, MKRS may not operate properly.
Piping instructions:
Shaft diameter φ12, thread size M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ16, thread size M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ20, thread size M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ25, thread size M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ30, thread size M5, air consumption: 0.031L/cycle (ANR)
Shaft diameter φ40, thread size M5, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ50, thread size M5, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ60, thread size M5, air consumption: 0.041L/cycle (ANR)
Installation dimensions:
