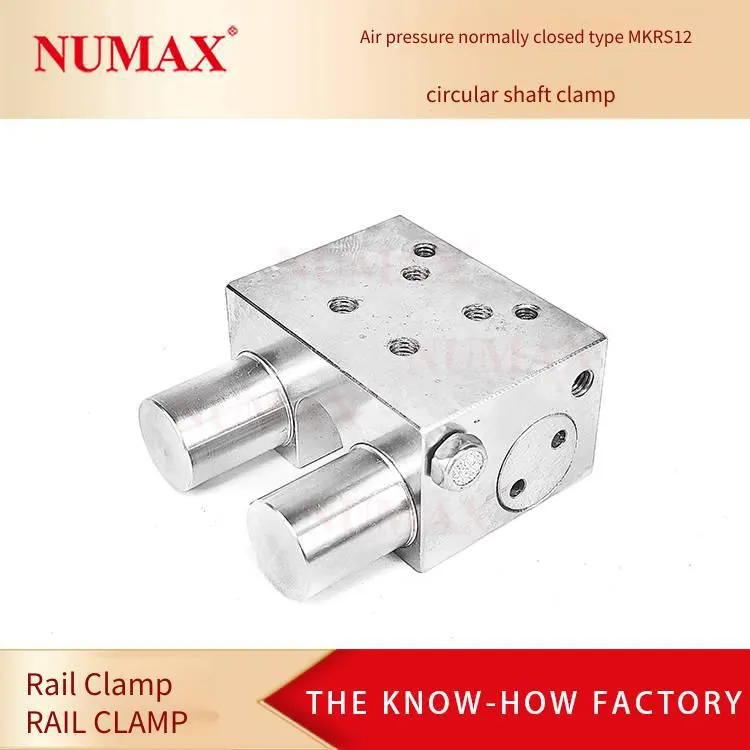

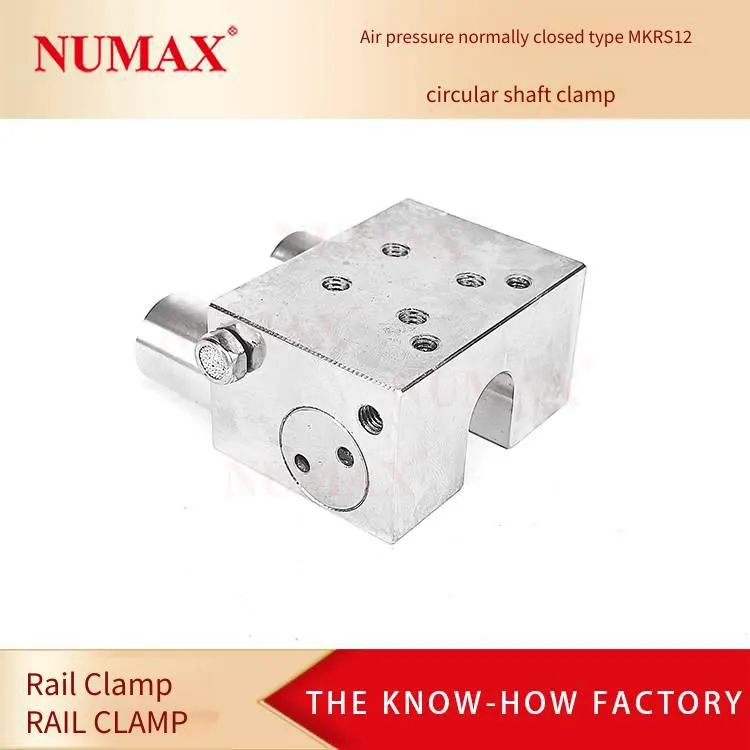

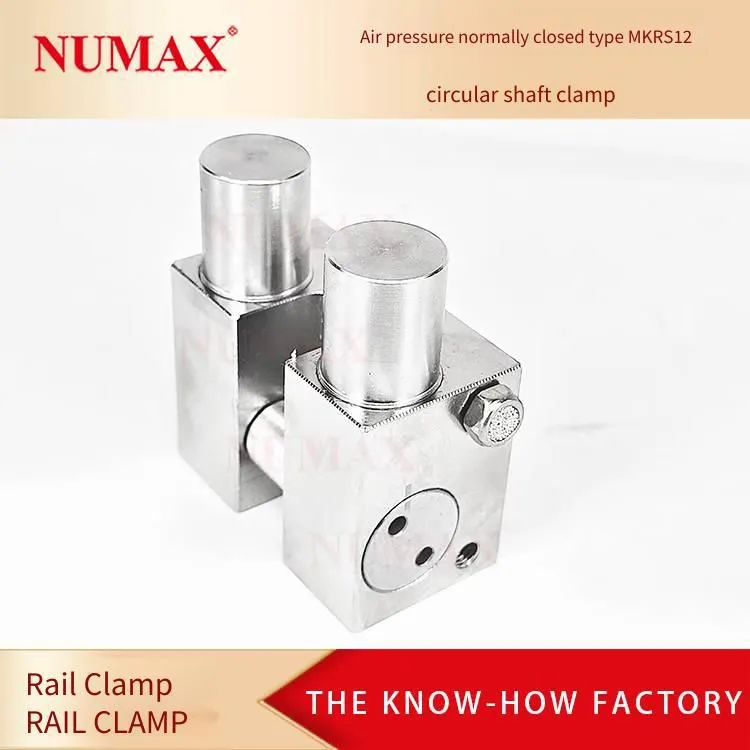

Shaft diameter φ32mm spool clamp, domestic NUMAX optical axis clamping pliers, pneumatic normally closed type MKRS3200A. Product features:
For linear shafts.
Used for fixing the slide table, positioning and preventing vibration.
It is a normally closed type.
When air pressure is supplied: The clamping is released.
When air pressure is discharged: The shaft is clamped by the force of the spring.Products with opening pressures of 0.3MPa and 0.4MPa have been standardized.
-
It can also be used on linear shafts and circular shafts.
Installation precautions:
1. First, install the guide rail Kuhlmann on the guide rail in the state of releasing the clamping. For the normally closed type, with the spacer inserted at the time of factory shipment, perform the opening and closing actions about 10 times, and then install the guide rail.
2. Then temporarily fasten the guide rail Kuhlmann and the auxiliary gasket (if necessary) on the object such as the slide table to be used. Screws with a strength grade of 8.8 or above should be used, and ensure that the engagement length is more than the nominal diameter of the thread × 0.9.
3. Next, after repeating the actions of clamping/releasing the clamping of the guide rail about 10 times, keep it in the clamping state.
4. In the state of clamping the guide rail, fasten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
5. For products with a sealing ring, fasten the sealing ring fixing bolts in the temporarily fastened state.
6. Confirm that there is no interference between the guide rail Kuhlmann and the shield base, etc.
7. When the MKRS leaves the factory, there is a cushion block between the contact surfaces. Do not remove the cushion block except during installation. If it is left for a long time with the cushion block removed, the MKRS may not operate.
Description of piping for clamping pliers:
Shaft diameter φ12, it is M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ16, it is M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ20, it is M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ25, it is M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ30, it is M5, air consumption: 0.031L/cycle (ANR)
Shaft diameter φ40, it is M5, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ50, it is M5, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ60, it is M5, air consumption: 0.041L/cycle (ANR)
Control method: Pneumatic, normally closed
Opening pressure: 0.3MPa, 0.4MPa, 0.55MPa
Operating pressure: 0.65MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Applicable shaft diameter: φ12mm～φ60mm
Applicable shaft hardness: Above 54HRC
Allowable dimensional deviation of applicable shaft diameter: -0.01mm～0mm
Main body material: Equivalent to SCr415, electroless nickel plating.
Installation dimensions:
